Page 13
5
Installation
Converting Straight-through Operation to Corner Operation
(continued)
! ATTENTION !
If the backsplash is higher than 3" [76mm], then it must be notched for handle clearance.

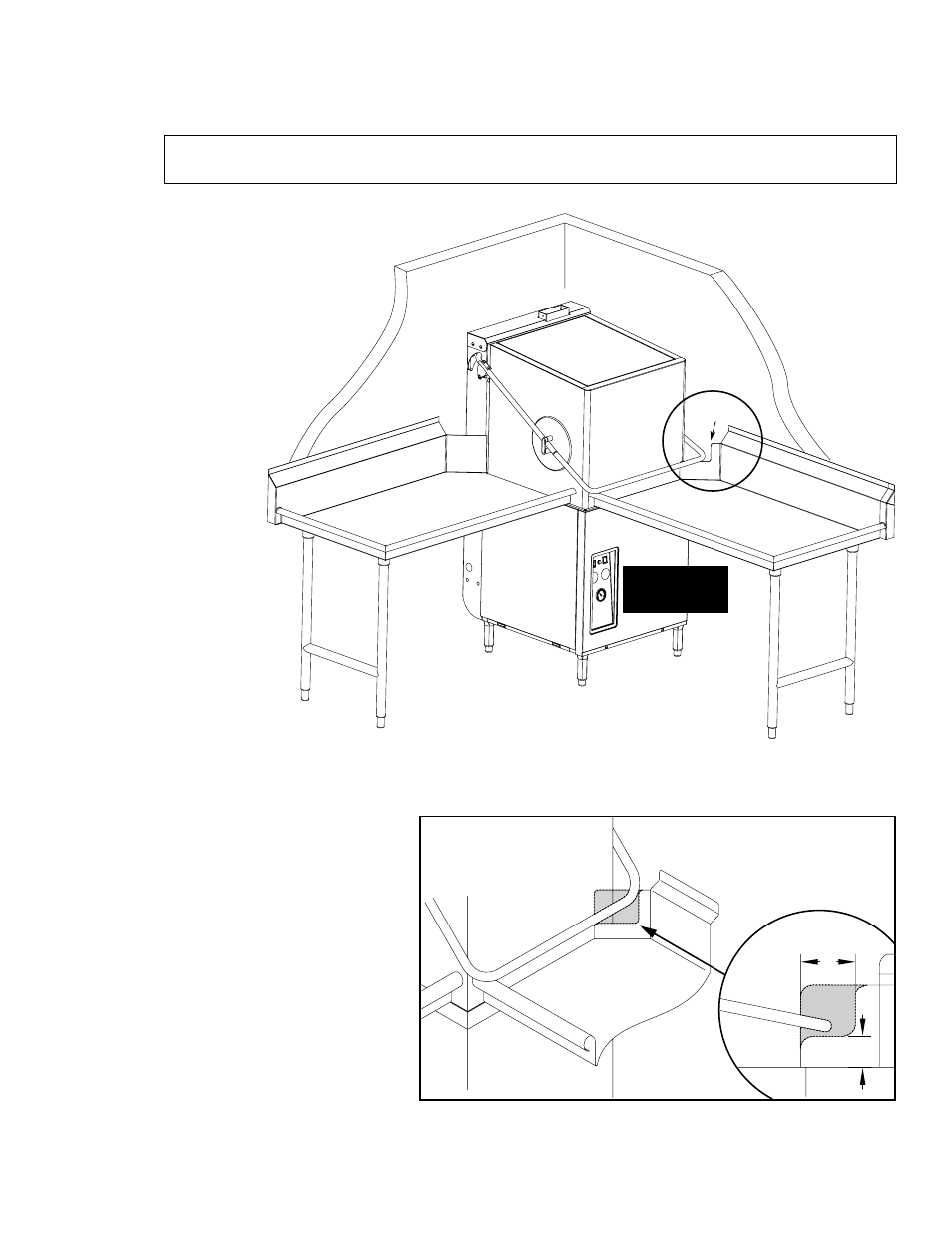

CORNER CONFIGURATION
See Detail
Controls must
be accessible.
HANDLE CLEARANCE CUTOUT
FOR CORNER OPERATION
5"
[127]
3" [76]
Detail
