Model 201CRD & 301CRD 240-VAC Advanced oil burners — Instruction manual

Carlin part number MN2301A Rev. 10/21/10

– 7 –

Table 3

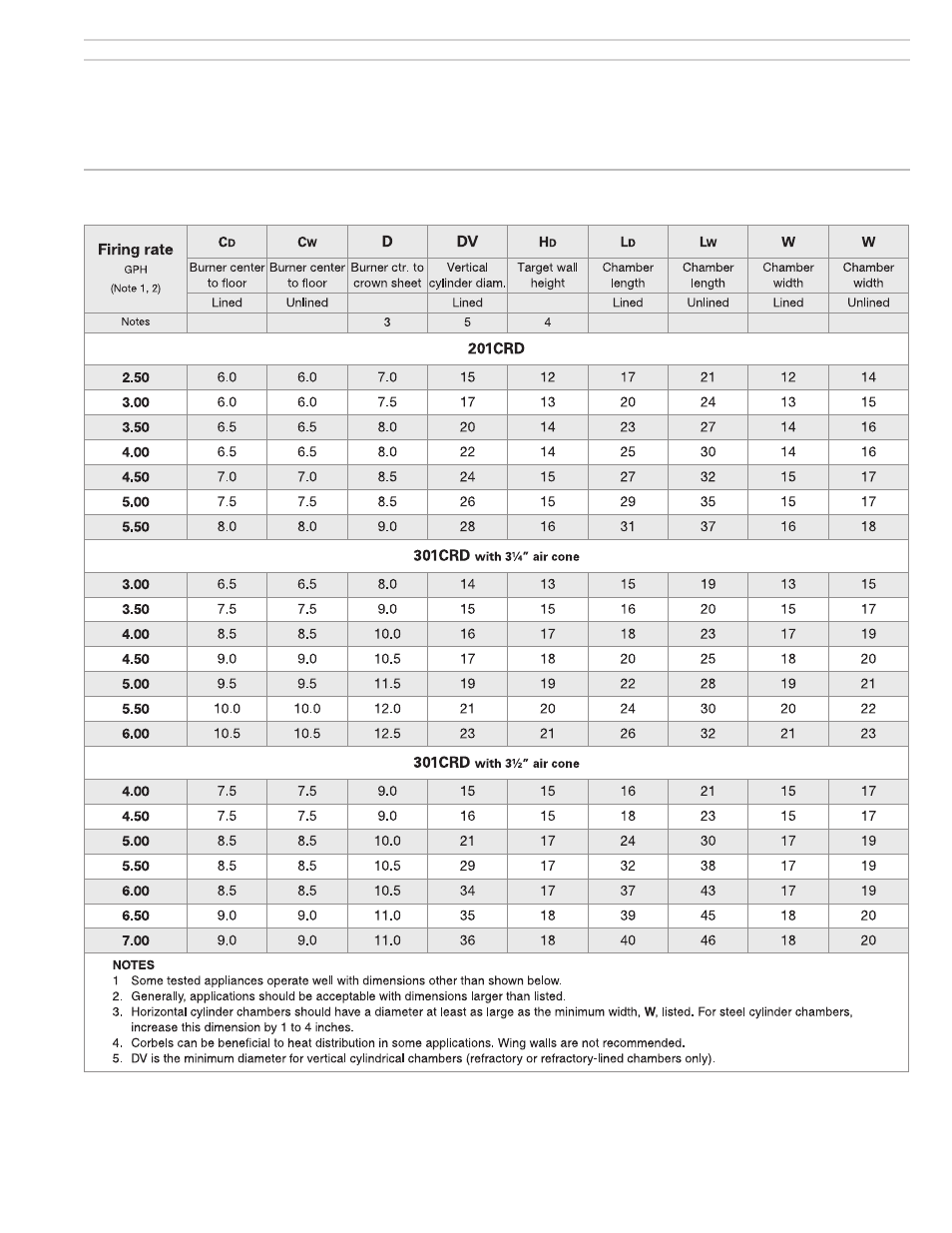

201CRD and 301CRD Minimum combustion chamber dimensions (all dimensions in inches) - See Figure 1 for combustion
chamber confi gurations

2. Prepare site • assemble burner • mount burner

(continued)
