Carlin 301GAS Mass Code Supp. User Manual
Supplement 1, Massaschusetts applications, Replace the following instruction manual content

carlincombustion.com
Massaschusetts applications
1. For 301GAS burner applications in the Commonwealth of Mas-
sachusetts, the burner input may not exceed 999,999 Btuh.
2. Model 301GAS burners for use in the Commonwealth of Mas-
sachusetts must be equipped with Carlin 60200FRN non-recyling
primary controls. These controls will lockout on flame failure.
Tech support 800-989-2275
Replace the originial content in the Instruc-
tion manual with the information provided
in this supplement. Failure to follow these
guidelines could result in severe personal
injury, death or substantial property damage.
Replace the following Instruction
manual content:
1. Page 11, Figure 11 — Replace wiring diagram with
diagram given in this supplement.
2. Page 22, Item 16 — Change description to “Pipe
nipple, schedule 40 steel, 1”NPT x 3” long.”
©
Copyright 2007 — Carlin Combustion Technology, Inc.
Carlin part number MN301GAS2 Rev. 05/08/07
Supplement 1
(Use with Instruction manual MN301GAS)
™

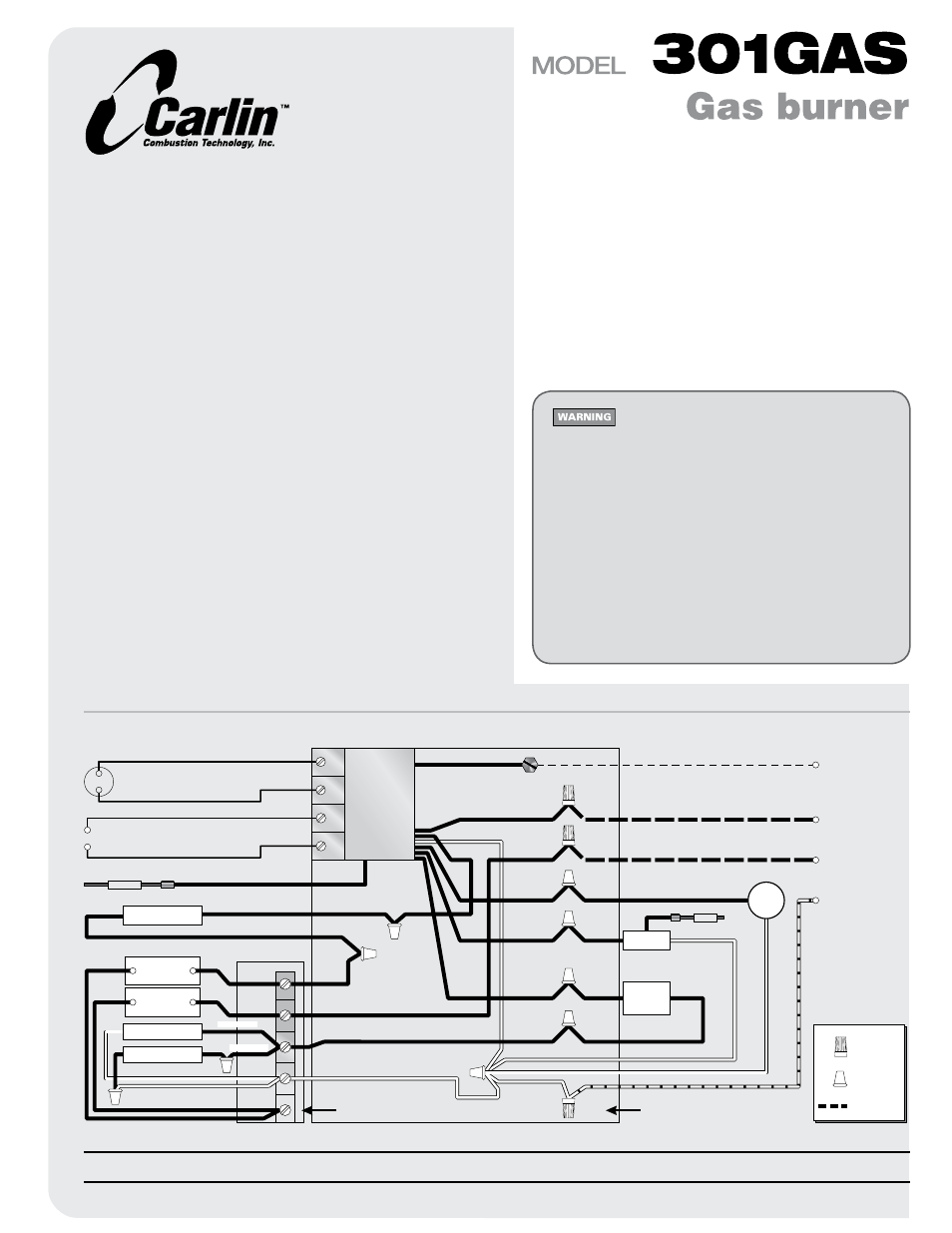

Figure 11 Wiring diagram — 301GAS burner with 60200FR primary control (Replaces Figure 11, page 11)
Black
call for heat 120
from limit circuit
VAC
White
Orange
Blue
Red/White
From appliance 120
power source
for constant power
VAC
From appliance 120
limit circuit to
start burner on call
VAC
Connect to
appliance
neutral entrance
120
VAC
Connect ground per
NEC, CEC or local
constant 120
line
VAC
Violet
Violet
Black/White
A
A
Dry contacts to alarm circuit
(24
or , max load 2
)
V AC
DC
AMPS
60200FR
Burner junction box
Ignitor
Electrode
Green
Brown
Flame rod
Chassis ground
Airflow
switch
Jumper or 24
to thermostat
(anticipator setting 200 mA)
VAC
T
T
30113-R1
Red
Lo gas pr sw
Black/
Yellow
Hi gas pr sw
Flg. Door Switch
Black
Yellow
Yellow
Black
Black
Yellow
Installer
wiring
Wire
nuts
Crimp
connectors
Black/White
White
White
Motor
Gas train junction box
NO
Com
Com
NC
Black/
Yellow
Black
Black
Solenoid valve
Diaphragm valve
White
White
White
Yellow
Black
Black/White
Black/White
