Warning:
Always wear safety glasses when operating hand tool.
Instructions:
1. Turn tension adjustment knob until desired
tension setting is displayed in tension indicator
window. Space between numbers counts as
one-half setting. See step 6.
2. Extend handle open to release gripping
mechanism and insert clamp tail into tool
through front load entry.
3. Squeeze handle repeatedly to tighten band
around object. Be sure to release handle
completely to use full pull-up stroke of tool.
Buckle must be secure against the tool head.
Once the preset tension has been reached, the
handle will no longer release completely.
4. To cut-off excess clamp tail, squeeze handle
one last time. Once the band is cut, the handle
must be released to separate the tool from the
clamp.
5. The tool must be reset by extending the handle
out until it snaps into place. The tool will be
ready to apply the next clamp.
6. Tension Setting Range:
.250 Smooth I.D. Ultra-Lok 0 – 8
.250 Smooth I.D. Tie-Lok 0 – 8
.250 Smooth I.D. Jr. single-wrap 0 – 8
.250 BAND-IT Band and A201 Buckle 0 – 8

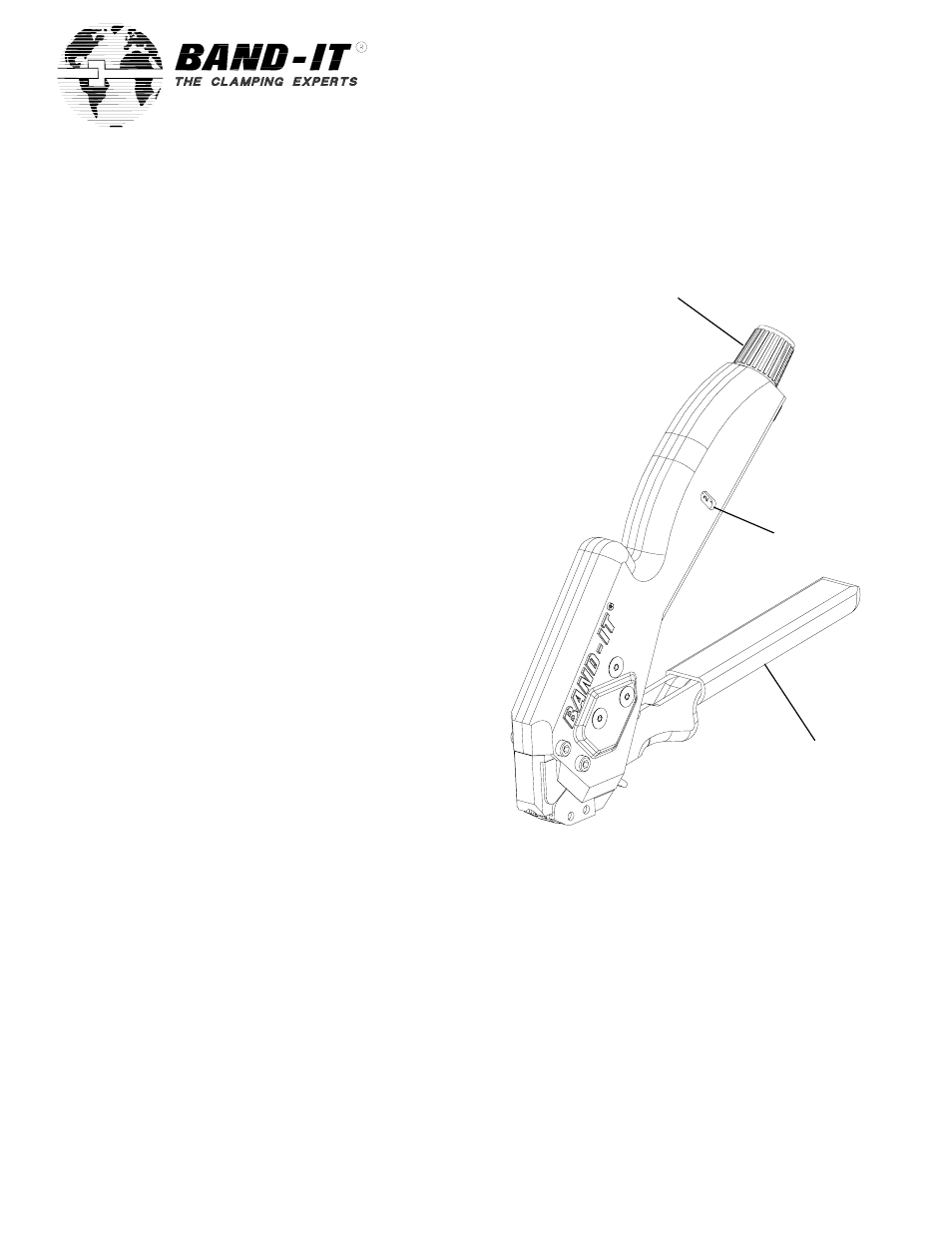

Tension Indicator
Window
Handle
Tension
Adjustment
Knob
Operating Instructions
A94079 Ultra-Lok Tool
