B&W Trailer Hitches 1251R - Manual

Model 1251R
Turnoverball TM Gooseneck Hitch Installation Instructions
Toyota Tundra
(2000 - 2006)
[email protected]
www.turnoverball.com
Call or Email us for Installation Support
B&W Trailer Hitches
1216 Hawaii Road / PO Box 186
Humboldt, KS 66748
800.248.6564
620.473.3664
Fax:620.473.3766
NOTE: We recommend reading instructions before beginning the installation.
WARNING: The tow vehicle’s towing capacities should under NO circumstances be exceeded.

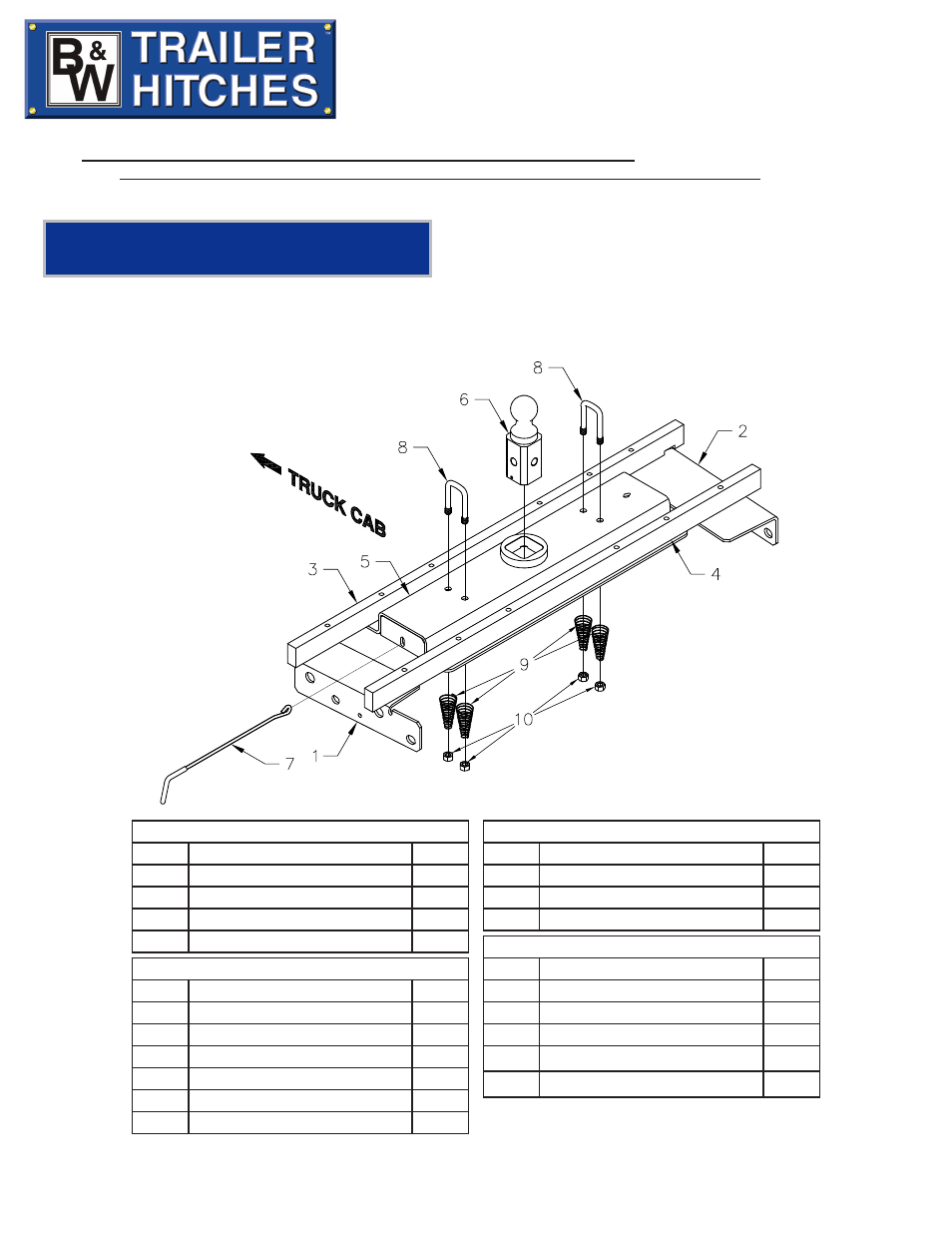

Center Box (GNRC1250)
ITEM DESCRIPTION QTY
5 Center Section 1
6 2-5/16" Ball 1
7 Latch pin Handle 1
Safety Chain Kit Bolt Bag
8 1/2” U-Bolt 2
9 Conical Springs 4
10 1/2” Lock Nut 4
5/16” X 3/4” Carriage Bolt 1
5/16” X 3/4” Cap Screw 1
5/16” Lock Nut 1
Mounting Kit Box (GNRM1251)
ITEM DESCRIPTION QTY
1 Front Driver Side Plate 1
2 Front Passenger Side Plate 1
3 Front Crossmember 1
4 Rear Crossmember 1
Mounting Kit Bolt Bag
1/2" X 1-1/2" Cap Screw 12
1/2” Flat Washer 12
1/2” Lock Washer 12
3/4" X 2-1/2" Cap Screw 4
3/4" Flat Washer 8
3/4” Lock Washer 4
3/4" Finish Nut 4
NOTICE: This product was designed to fit vehicles in their original, “as manufactured” condition. Compatibility with vehicles having
replacement parts, or other modifications is not guaranteed. Inspect vehicle for modifications before installation of this product.
