LOE Series

Rev. B, 1/12

22

Automation Products Group, Inc.

APG...Providing tailored solutions for measurement applications

Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • [email protected]

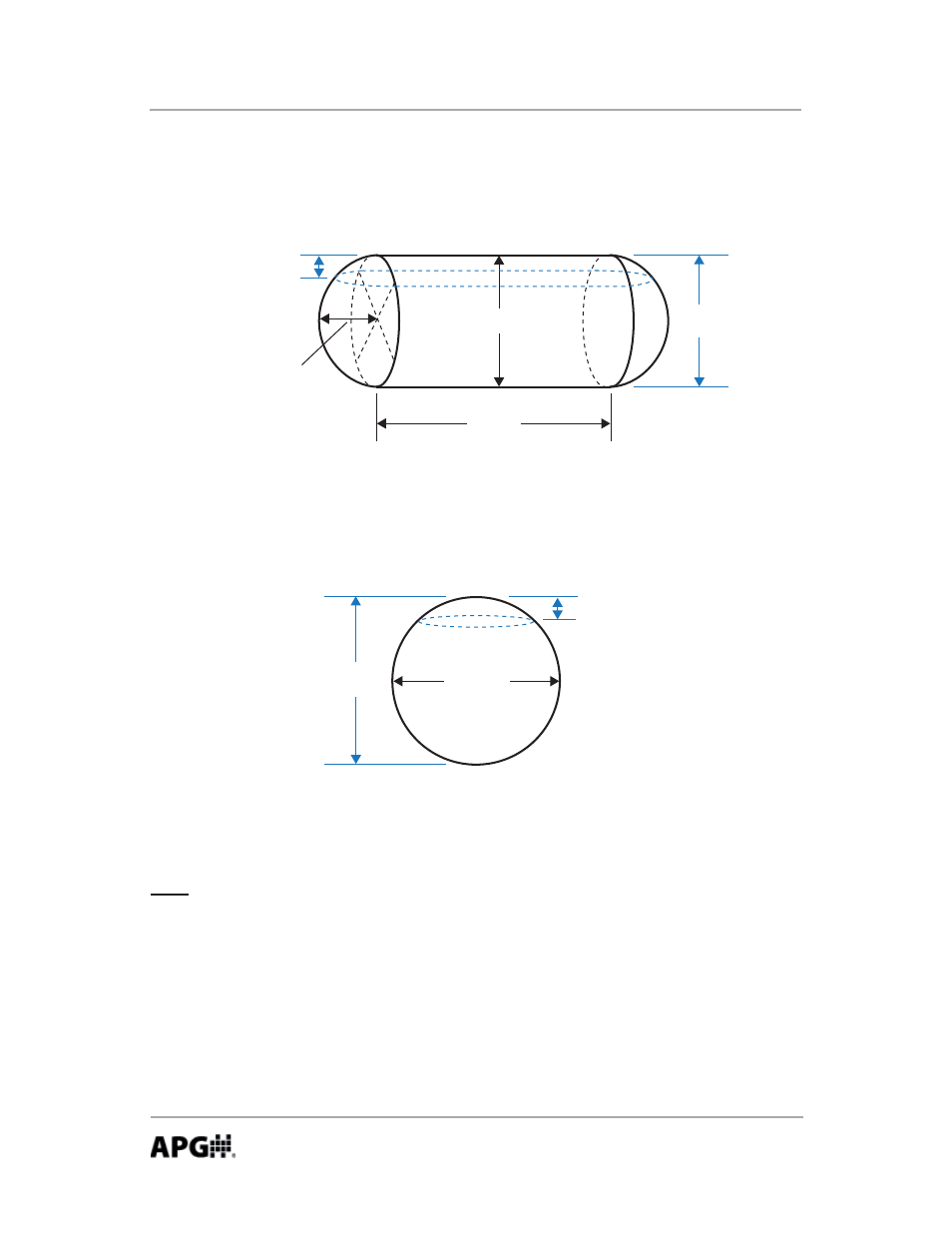

5 = Horizontal Cylindrical Tank with Spherical Ends
Enter all dimensions shown below into the Tank Parameter fi elds and select the
desired Volume Units.

6 = Spherical Tank
Enter all dimensions shown below into the Tank Parameter fi elds and select the
desired Volume Units.

7 = Pounds: allows the user to apply a conversion mul plier to the calculated

level reading. The conversion Mul plier is entered in Tank Parameter 1.

Example: suppose the level depth is calculated to be 5.45 feet (based on
the Empty Distance se ng). If the conversion Mul plier is set to 7.150, the
calculated result would be (7.15 x 5.45) 38.968.

Diameter

Length

Empty

Distance

End

Radius

Full

Distance

Empty

Distance

Diameter

Full

Distance
