LOE Series Rev. B, 1/12
20
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • [email protected]

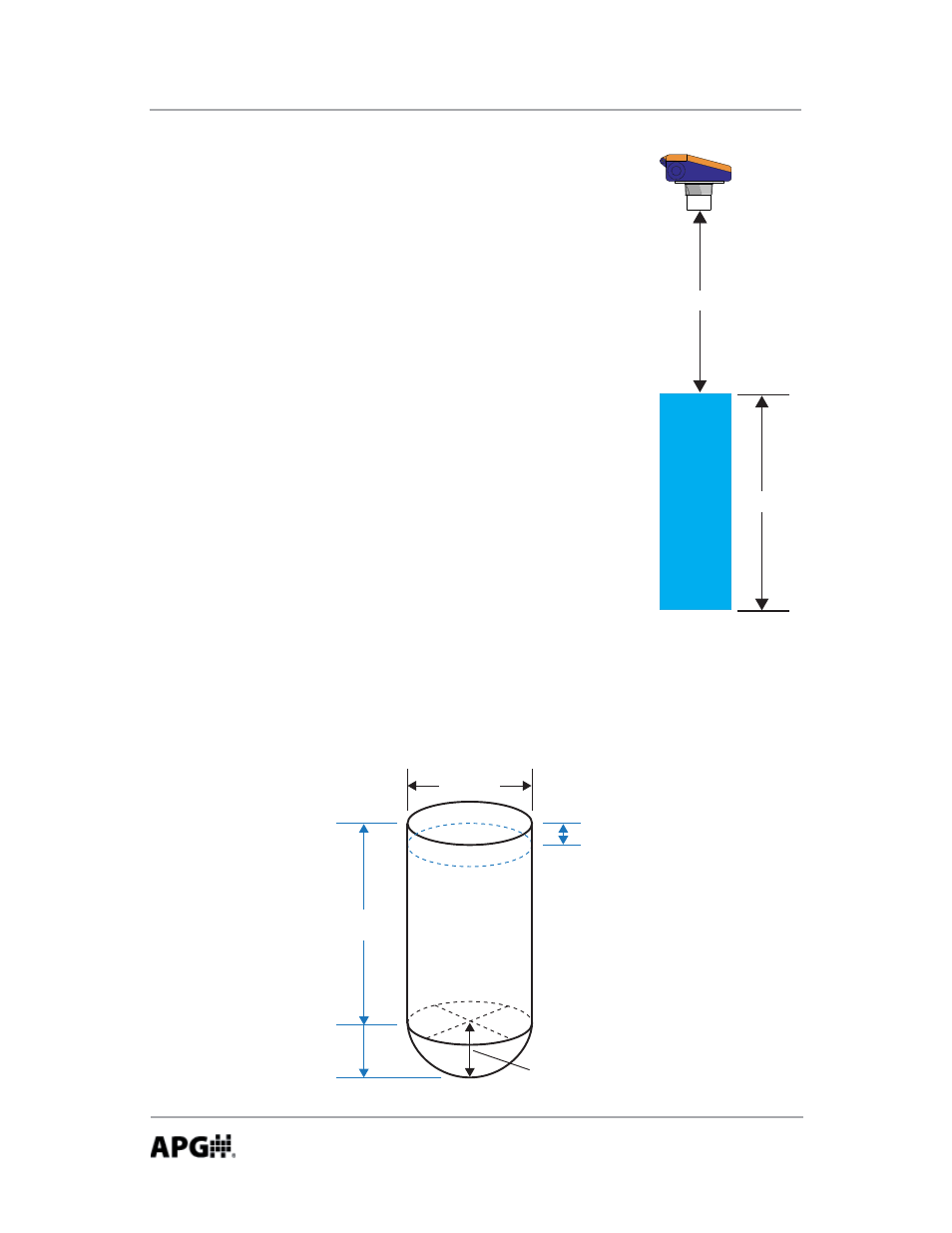

2 = Standing Cylindrical Tank with Hemispherical Bo om
Enter all dimensions shown below into the Tank Parameter fi elds and select the
desired Volume Units.
0 = Distance (factory default): measures the distance from
the face of the sensor to the target surface. Required
parameter se ngs: Units
1 = Level: subtracts the measured target distance from
the user defi ned Empty Distance to provide a depth of
level measurement. Required parameter se ngs: Units,
Full Distance, Empty Distance.
Diameter
Empty
Distance
ŽƩŽŵ
Radius
Full
Distance
or
Distance
Level
