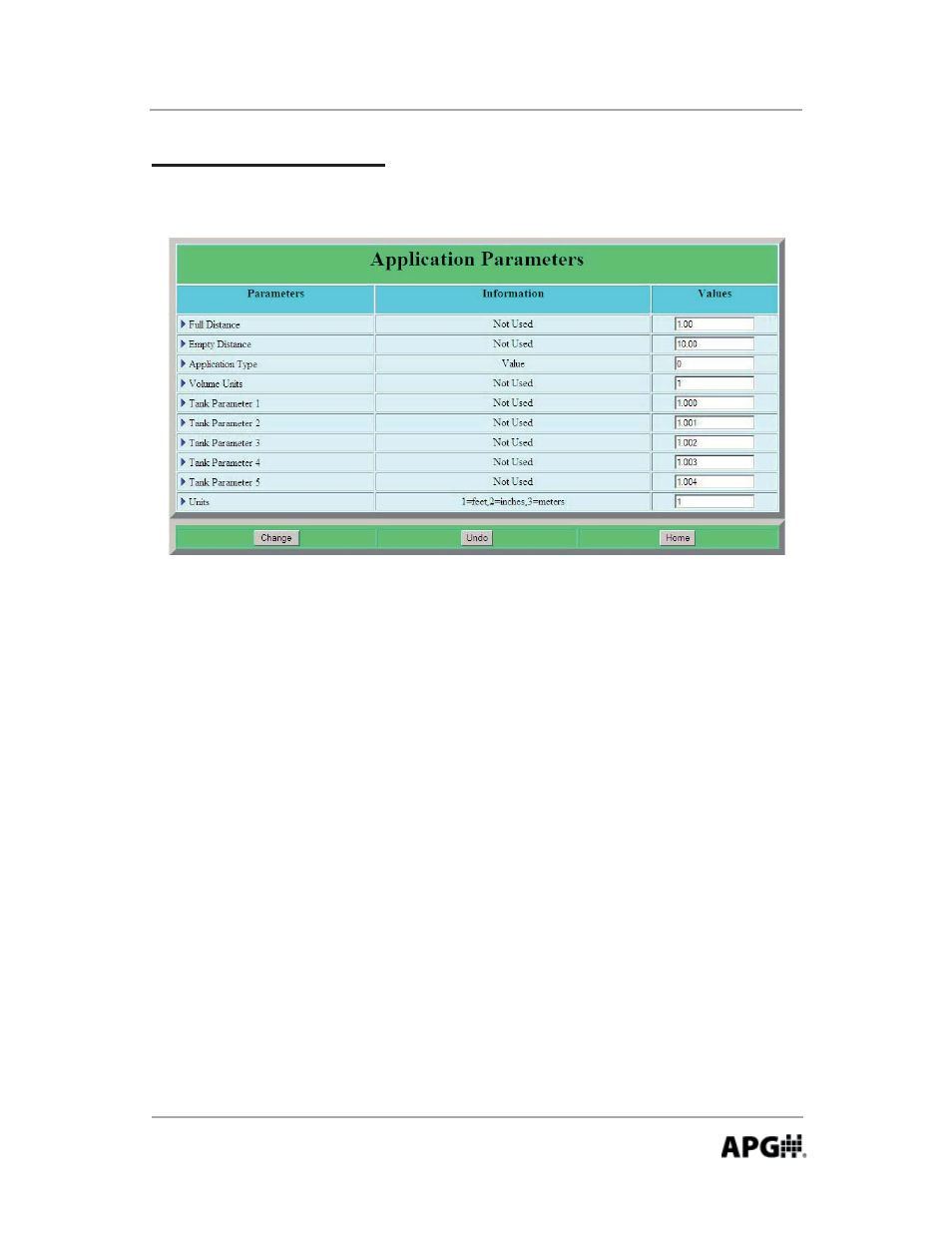

Applica on Parameters
Full Distance
Sets the distance (beginning from the sensor face) to the point where the tank
is considered full. Typically set to the Blanking Distance (see Basic Parameters).
Empty Distance
Sets the distance (beginning from the sensor face) to the point where tank is
considered empty. This will typically be the same as the tank depth unless the
sensor is mounted on a stand pipe.
Applica on Type
Determines the type of calculated measurement the sensor will perform. The
LOE can measure the distance to the target, the depth of a level, or one of sev-
eral volumetric calcula ons (refer to pages 13-21).
