Oon n- -t th he e- -v ve eh hiic clle e – AMMCO 800 On-The-Vehicle Brake Lathe User Manual
Page 24
18 • AMMCO 800 On-The-Vehicle Brake Lathe
O
On
n-
-T
Th
he
e-
-V
Ve
eh
hiic
clle
e

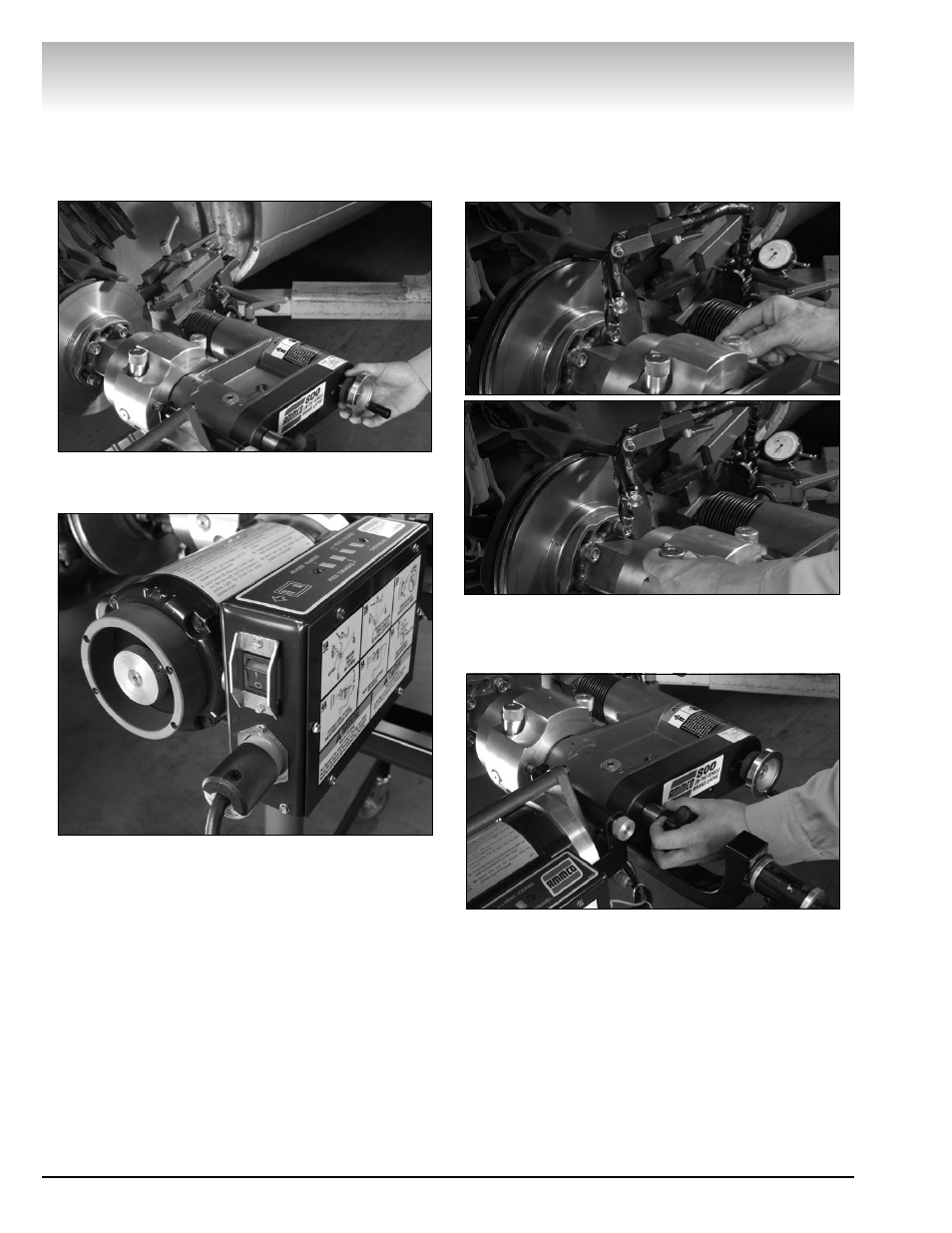

Removing the Lathe
13.0 After the refinishing process is complete and
the cutting tips are clear of the rotor, disengage the
feed engagement knob (gray).
13.1 Switch the power OFF and remove the power
cord from the twist-lock receptacle.
13.2 Use the motor handwheel to rotate the spin-
dle manually, to position the adjustment knobs (red
and blue) at the start position, and insert the lock pin
(yellow) into the runout adjustment head.
13.3 To remove the 800 brake lathe from the vehicle,
loosen the adjustment knobs (red and blue) to the top
position to reduce the drawbar tension. This will allow
the drawbar to be loosened and withdrawn easily.
13.4 Disconnect the 800 brake lathe by disengag-
ing the drawbar from the hub adapter using the draw-
bar star knob (black).
