AMMCO 901175 Clip-on Silencer - Manual

Clip-on Silencer
Operating Instructions
No. 901175
For use with Models 700 and 710 “On-the-Car”
Lathes and the No. 906900 & 906950 Twin Cutters
Silencers are used to suppress vibrations induced when
machining rotors and drums. In turn, the surface finish
quality of the resurfaced part is improved.
The No. 901175 Clip-on Silencer is especially useful for
machining rotors on the vehicle when there is insufficient
clearance for a rubber band type silencer. It can also be
used along with band type silencers to aid in further
dampening vibration on bench type lathes.
To prevent bodily injury, never install the
No. 901175 Clip-on Silencer while the rotor
is turning.
Instructions for Use
1. Loosen the square head set screws (A) and slide the
tool holders from position (B) to position (C) so that the
edges of the carbide inserts are 3/4-inch from the end of
the cutting arms, Figs. 1, 2, and 3.
2. Mount the “On-the-Car” lathe or the twin cutter as
described in the lathe operations manual.
3. Spread the two (2) friction pads apart, by pulling out
on both sides of the silencer frame spring, and slide the
silencer over the rotor.
WARNING
928215 02 07/02 © COPYRIGHT 2002 HENNESSY INDUSTRIES AND AMMCO ALL RIGHTS RESERVED PRINTED IN U.S.A.
AMMCO, Inc. • Hennessy Industries • 1601 J.P. Hennessy Drive, LaVergne, TN 37086-3565
(800) 688-6359 • (615) 641-7533 • (615) 641-5104 FAX • www.ammcoats.com

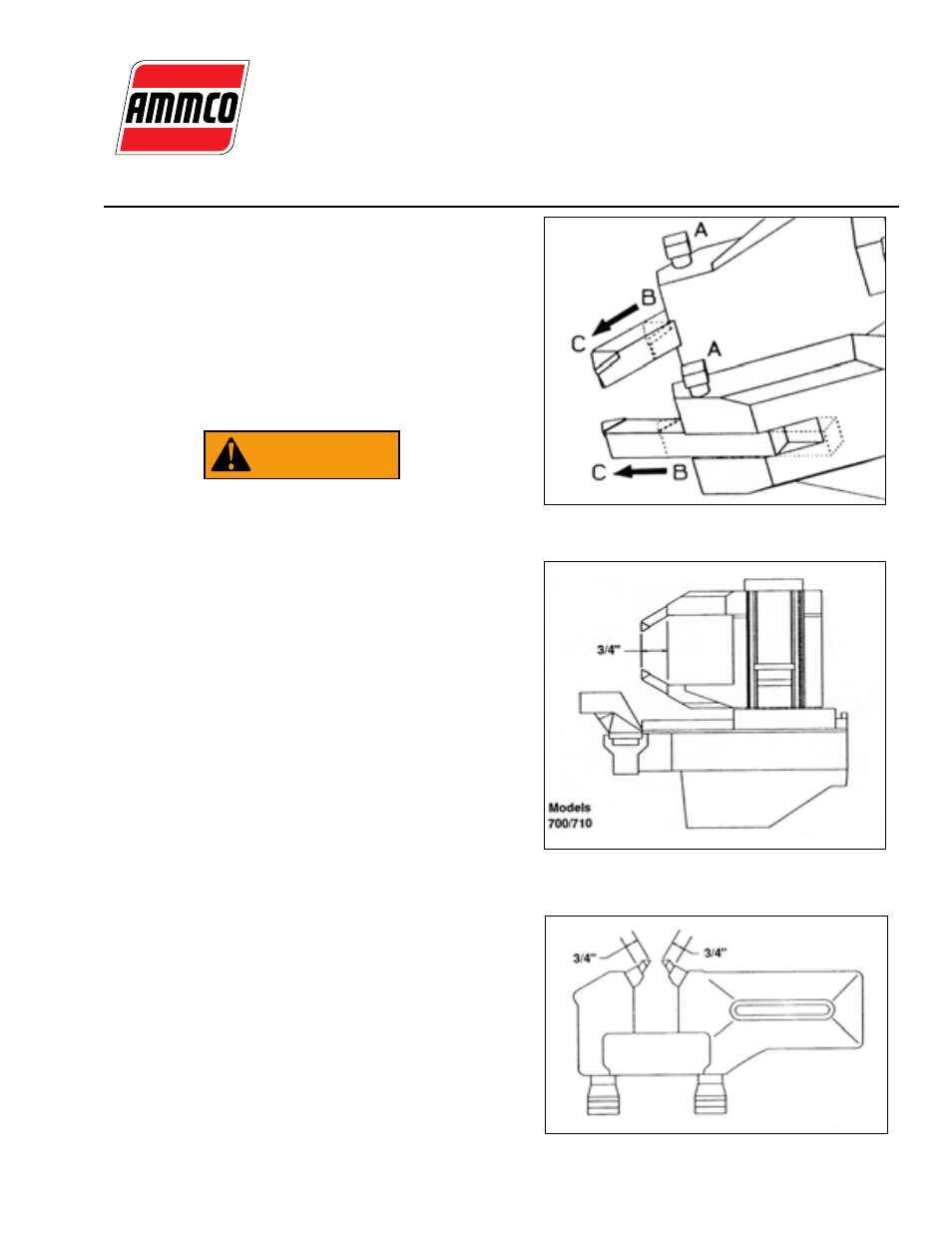

Figure 1
Figure 2
Figure 3
906900/906950
Twin Cutters
