Oon n- -t th he e- -v ve eh hiic clle e – AMMCO 800 On-The-Vehicle Brake Lathe User Manual
Page 12
6 • AMMCO 800 On-The-Vehicle Brake Lathe
O
On
n-
-T
Th
he
e-
-V
Ve
eh
hiic
clle
e
I
In
ns
st
ta
alllla
at
tiio
on
n a
an
nd
d S
Se
et
t U
Up
p
I
In
ns
st
tr
ru
uc
ct
tiio
on
ns
s

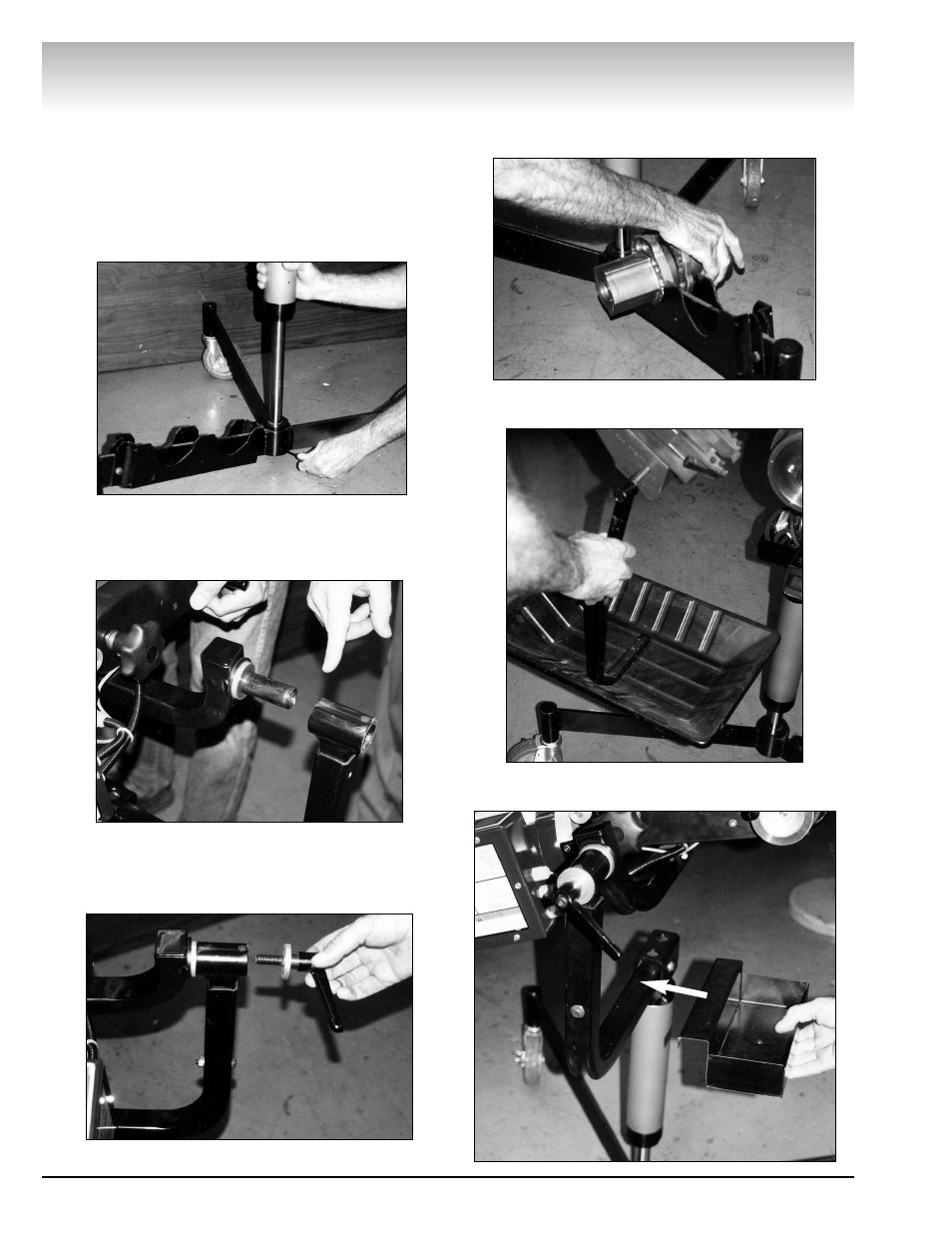

80 0 Brake Lathe and Portable Stand
System Assembly
3.0 Insert the counter balance cylinder shaft into
the three leg trolley and tighten screw.
3.1 With the help of another person, lift the 800
brake lathe and insert the pivot into the receiver on
the portable stand system.
3.2 Install the pivot-locking lever into the 800 brake
lathe pivot and tighten. Note the location of the thick
aluminum washer.
3.3 Retrieve the four hub adapters and place each in
the hub adapter set holder on the portable stand system.
3.4 Place the chip tray over the pivot located on the
cutting head assembly.
3.5 Place the tool tray on the portable stand sys-
tem as shown.
