Lathe Operation
Operating Specifications
Overall Lathe Height . . . . . . . . . . . . . . . . . . . . . . .57in. (1447.8 mm)
Spindle To Floor . . . . . . . . . . . . . . . . . . . . . . . . . .39 In. (990.6 mm)
Turning Travel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 In. (457.2 mm)
Facing Travel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 In. (177.8 mm)
Spindle Speed, Infinitely Variable . . . . . . . . . . . . . . . . .20—140 RPM
Feed Rates, Infinitely Variable . . . . . . ..0625 In./Min, To .750 In./Min.
. . . . . . . . . . . . . . . . . . . . . . . . . . . .(1.6 mm/Min. To 19.1 mm/Min.)
Handwheel Graduations . . . . . . . . . . . . . . . . . . . ..001 In. (.020 mm)
Maximum Load, 2 1/2 In. Arbor . . . . . . . . . . . .1500 Lbs. (680.4 Kg)
Spindle Motor . . . . . . . . . . . . . . . . . . . . . . . . . .1 1/2 Hp—180 VDC
Electrical Requirements . . .220 VAC, 50/60 Hz, 1 Ph, Fused At 20 A
Lathe Weight . . . . . . . . . . . . . . . . . . . . . . . . . .1600 Lbs. (725.8 Kg)

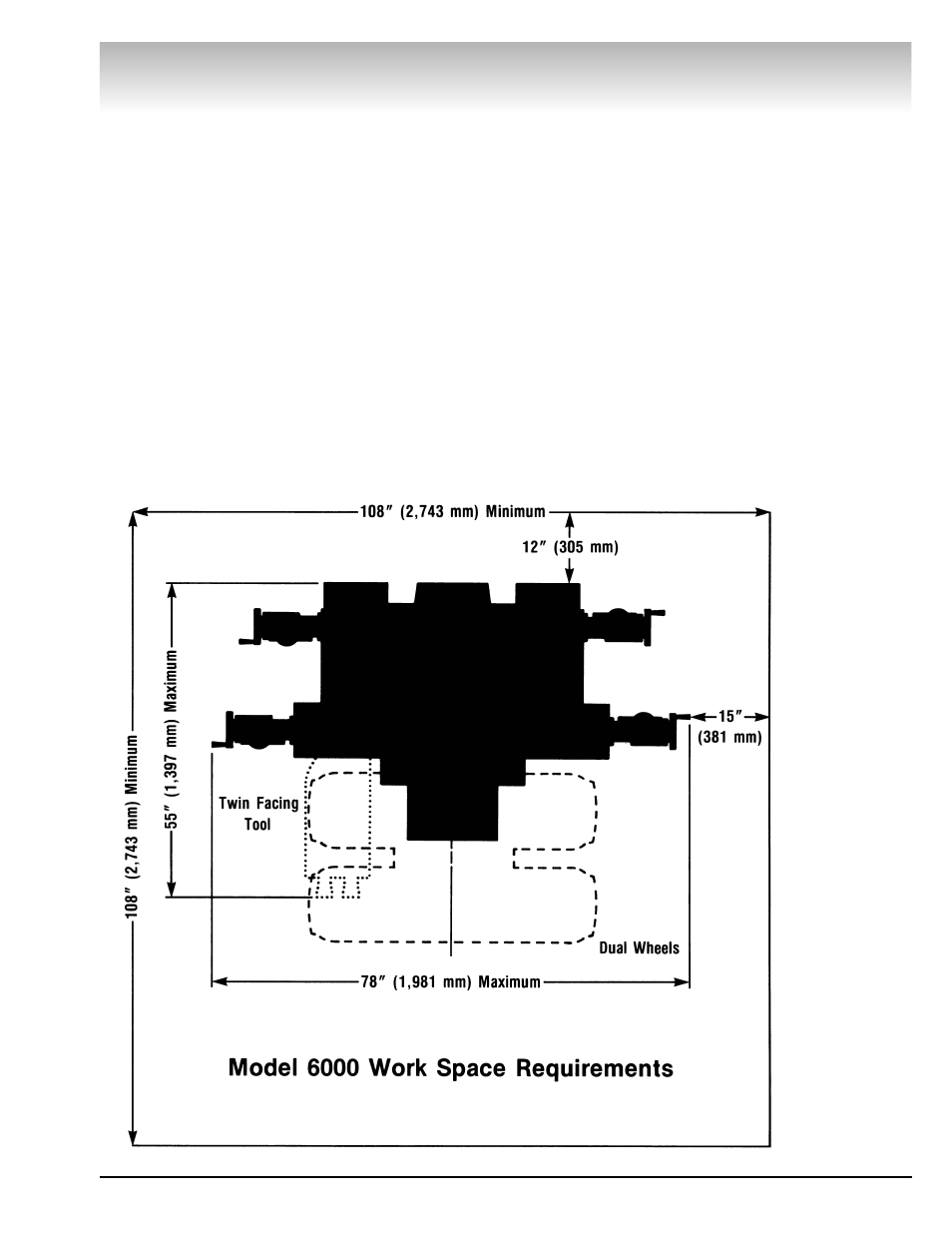

Work Space Requirements
