Feed Motor Brush Replacement
1. Turn the wall switch OFF. Remove the motor cover and dis-
connect the electrical connector.
2. Unscrew the brush retaining plugs from the motor and
remove the brushes. Note how the brushes are positioned in
the motor, Fig. 6.
3. Install the new brushes so they contact the commutator
correctly.
4. Replace the retaining plugs, connect the electrical wires,
and replace the motor cover.
Electrical Cords
Replace or repair any damaged or worn cords immediately.
Overload Safety Fuse Replacement
1. Turn the wall mounted disconnect box off.
2. Remove the screws holding the control panel in the control
box and pull the control panel assembly out.
3. Disconnect the lathe harness connector from the panel.
4. Remove the four screws from the shield to gain access to
the fuses, Fig. 7.
Brake Lathes
AMMCO 6000, 6002 Brake Lathes • 17

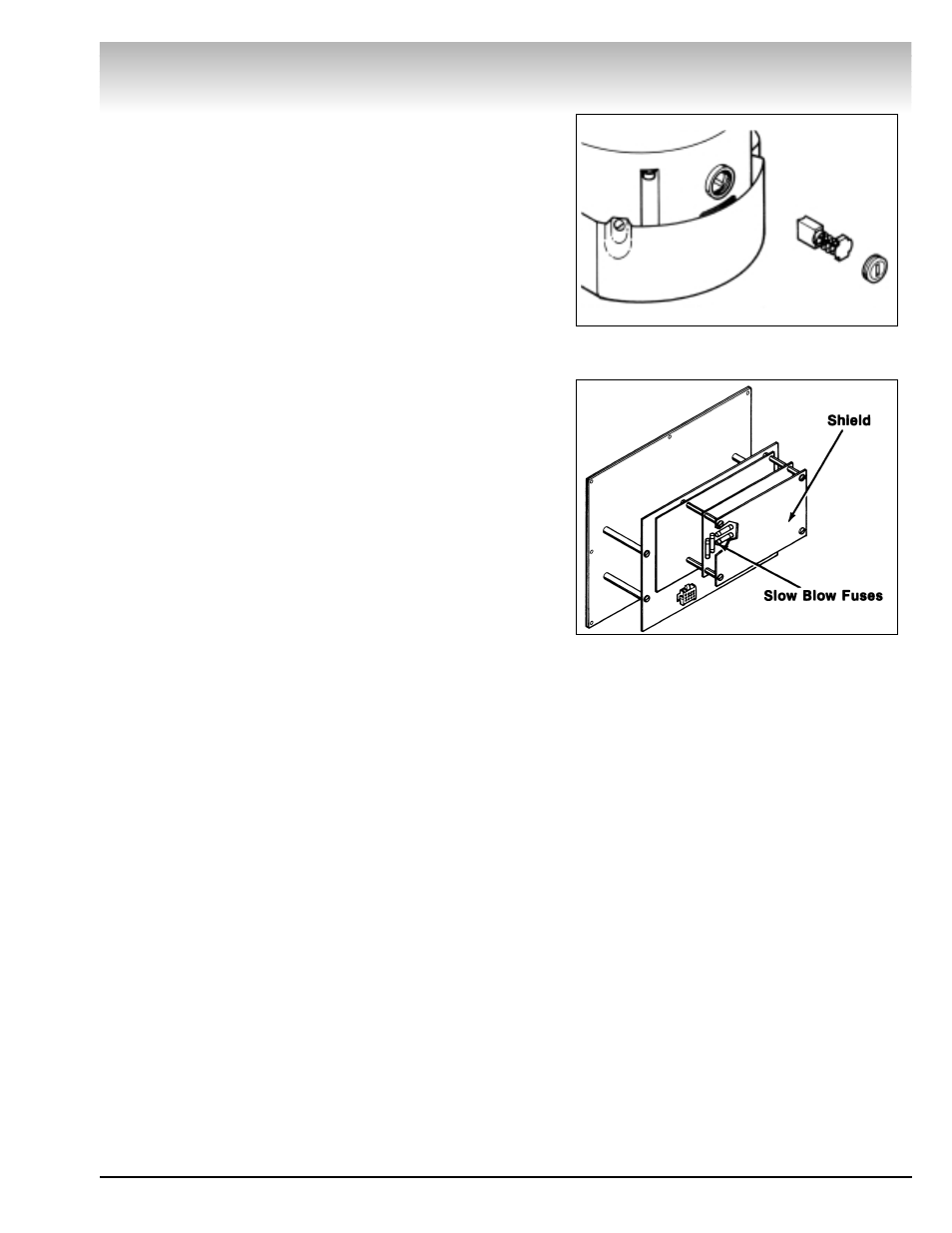

Figure 6 - Feed Motor Brush Replacement
Figure 7 - Safety Fuse Replacement
