AMMCO 6000, 6002 Brake Lathes • 7

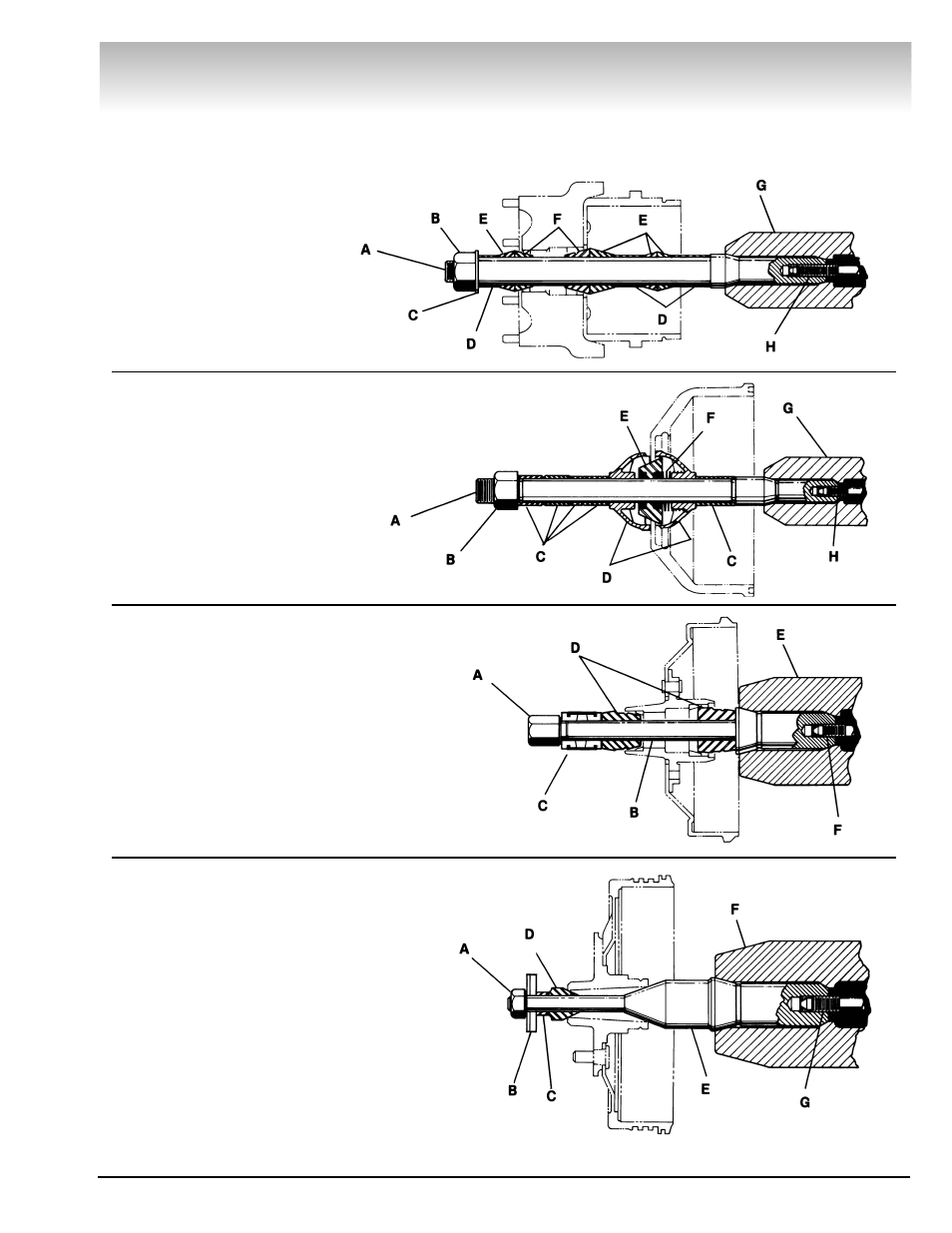

Typical Drum Mounting
Large Truck Drum Mounted On 2 1/2" Arbor
A — Arbor
B — Arbor Nut
C — Arbor Washer
D — Spacers
E — Centering Cones Used As Spacers
F — Centering Cones
G — Lathe Spindle
H — Draw Bar
Floating Type Drum Mounted On 1 7/8" Arbor
A — Arbor
B — Arbor Nut
C — Spacers
D — Clamping Cups
E — Centering Cone
F — Spring
G — Lathe Spindle
H — Draw Bar
Hub Type Drum Mounted On 1" Arbor
A — Arbor Nut
B — Arbor
C — Self-Aligning Spacer
D — Radii Adapters
E — Lathe Spindle
F — Draw Bar
Hub Type Drum Mounted On 11/16" Arbor
A — Arbor Nut
B — Self-Aligning Washers
C — Spacer
D — Centering Cone
E — Arbor
F — Lathe Spindle
G — Draw Bar
