3. Configuration
AirLive WN-220ARM User’s Manual 49

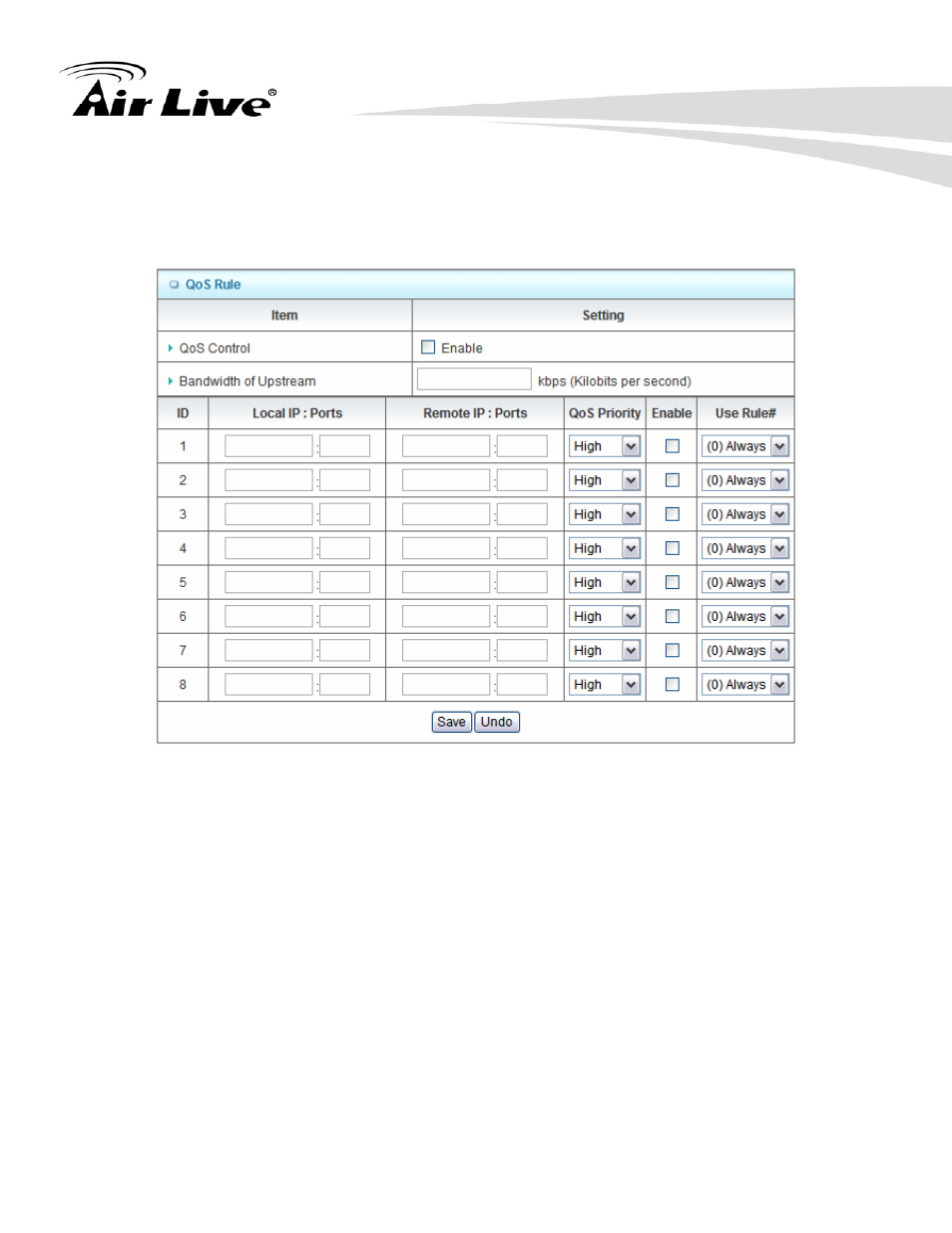

3.5.3 QoS
QoS provide different priority to different users or data flows, or guarantee a certain level of
performance.
1. QoS Control: Check Enable to enable this function.
2. Bandwidth of Upstream: Set the limitation of upstream bandwidth.
3. Local IP: Ports: Define the Local IP address and ports of packets.
4. Remote IP: Ports: Define the Remote IP address and ports of packets.
5. QoS Priority: This defines the priority level of the current Policy Configuration. Packets
associated with this policy will be serviced based upon the priority level set. For critical
applications High or Normal level is recommended. For non-critical applications select a
Low level.
6. Enable: Check to enable the corresponding QOS rule.
