2. Package Contents and Installation

AirLive NVR User’s Manual

13

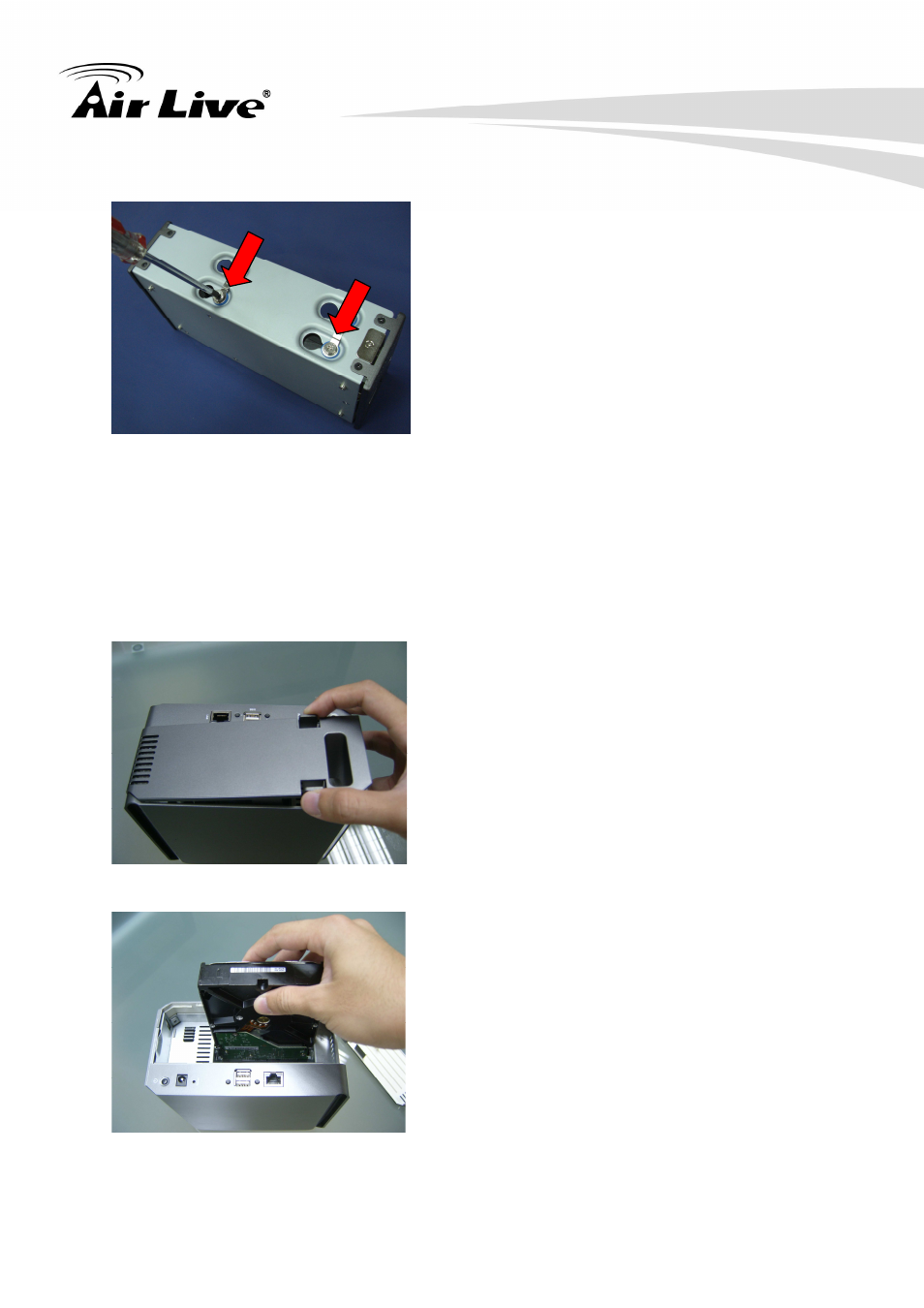

Mount the drive with two screws on each side.

Attach the thermal probe with the tape provided to the first hard drive.

Install the second hard drive by placing it in the enclosure and connecting the SATA

plus power cables.

2.3.2 Install the Hard Disk (NVR8/16)

Remove the back panel.

Insert the disks and push it until the SATA connector is closed.

Scroll the screws for fixing the disks.
