Page 9
9

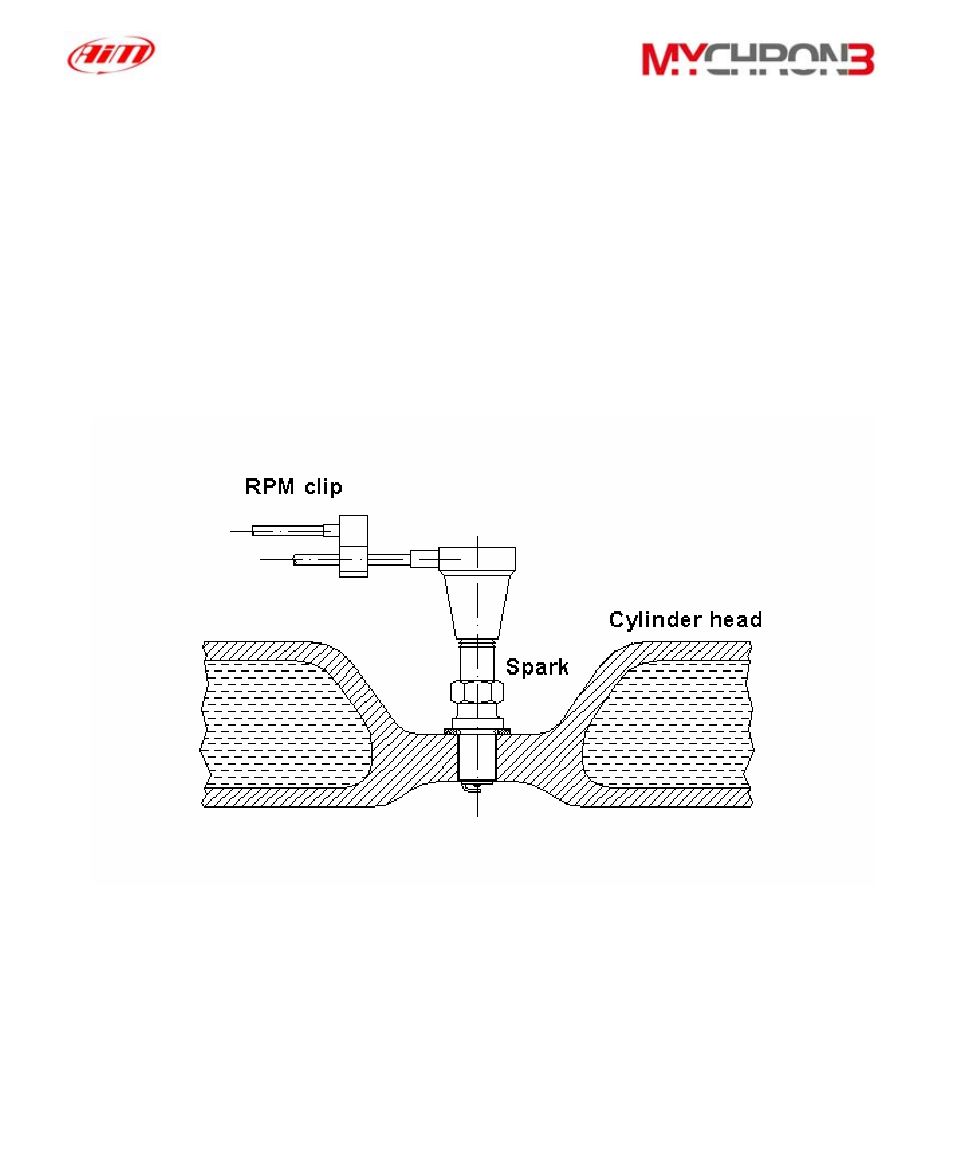

The RPM Cable
This clip wire is designed to be plugged directly on the spark plug wire and it is
used for RPM pick up from single cylinder 2-4 stroke engines.
When running the RPM cable along the chassis between the MyChron 3 display
unit and spark plug wire, the RPM cable should be positioned as far as possible
from the thermocouple wire.
