2N TELEKOMUNIKACE a.s., www.2n.cz

Intercom settings

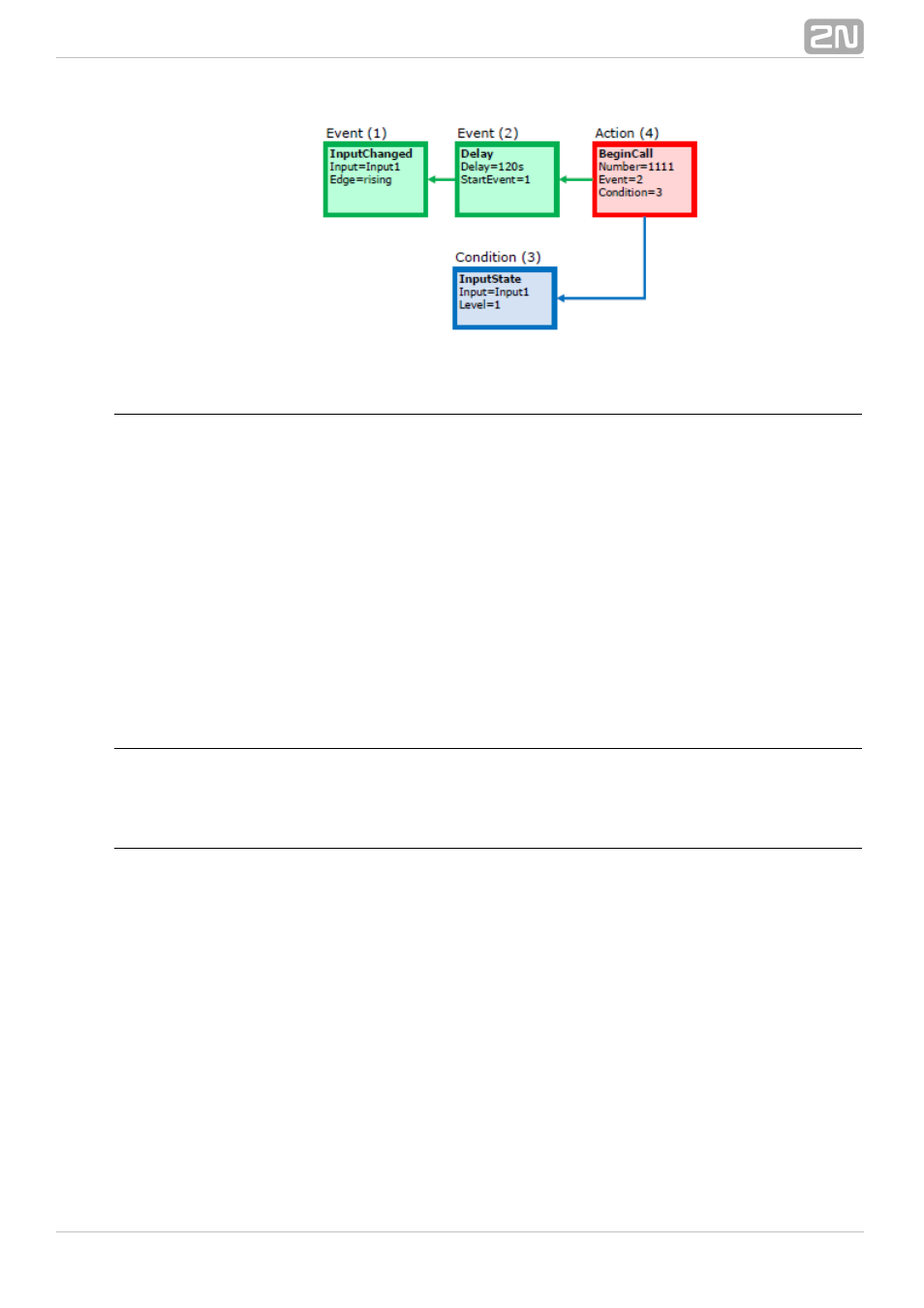

1: Event.InputChanged: Input=input1; Edge=rising

2: Event.Delay: Delay=120 s; StartEvent=1

3: Condition.InputState: Input=input1; Level=1

4: Action.BeginCall: Number=1111; Event=2; Condition=3

LED Flashing during Call / Electric Door Lock
Opening

Specification

Enable LED flashing during an active call.

Block diagram

Enable LED flashing by a combination of the periodic timer (1: Event.Timer) and delay
(2: Event.Delay). These two blocks define the period (250 ms) and duty cycle of the

signal or the LED shining period (125 ms). These two events are tied with the

on-switching (4: Action.SetOutput) and off-switching (5: Action.SetOutput) actions.
The LED switch-on action is conditioned by the active call (3: Condition.CallState).
