Section 3 - Controls and Indicators
3-13 31200150
G9-43A If Equipped
G10-43A S/N 0160040675 & After including 0160040468 & 0160040672

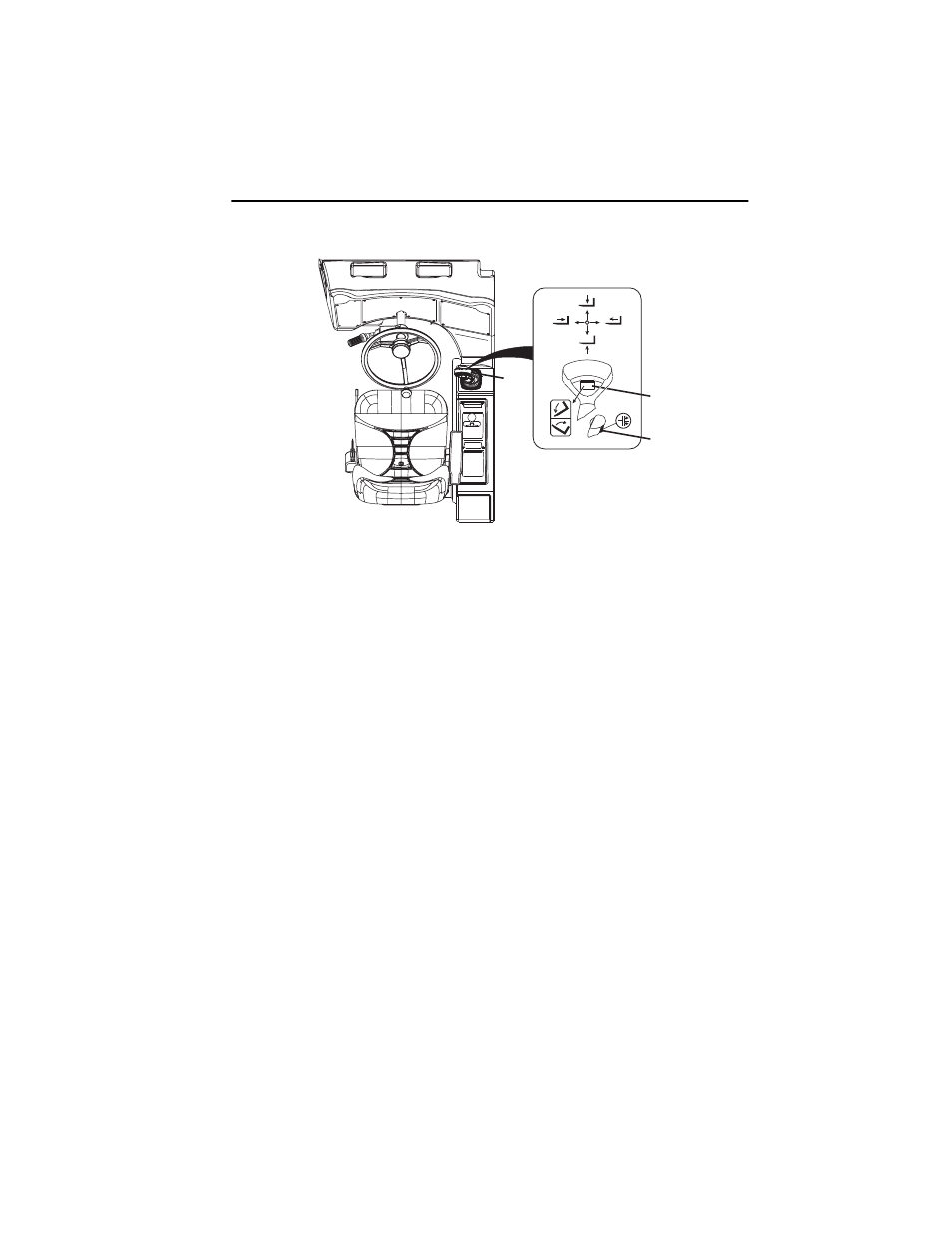

The boom joystick (1) controls the boom, attachment tilt and clutch lock functions.
Boom Functions
• Move the joystick back to lift boom; move joystick forward to lower boom; move
joystick right to extend boom; move joystick left to retract boom.
• The speed of boom functions depends upon the amount of joystick travel in
corresponding direction. Increasing engine speed will also increase function
speed.
• For two simultaneous boom functions, move the joystick between quadrants. For
example; moving the joystick forward and to the left will lower and retract boom
simultaneously.
Attachment Tilt Function
Attachment tilt is controlled by the roller switch (4).
• Push roller switch up to tilt attachment down; push roller switch down to tilt
attachment up.
Clutch Lock
Clutch Lock is controlled by the joystick trigger (5).
• Squeeze and release trigger once to deactivate system and have transmission
disengage while depressing service brake. Quickly squeeze and release trigger
twice to activate system and keep transmission engaged while depressing
service brake.
OY2380
1
4
5
