Section 3 - Controls and Indicators
3-4
31200150
G10-43A

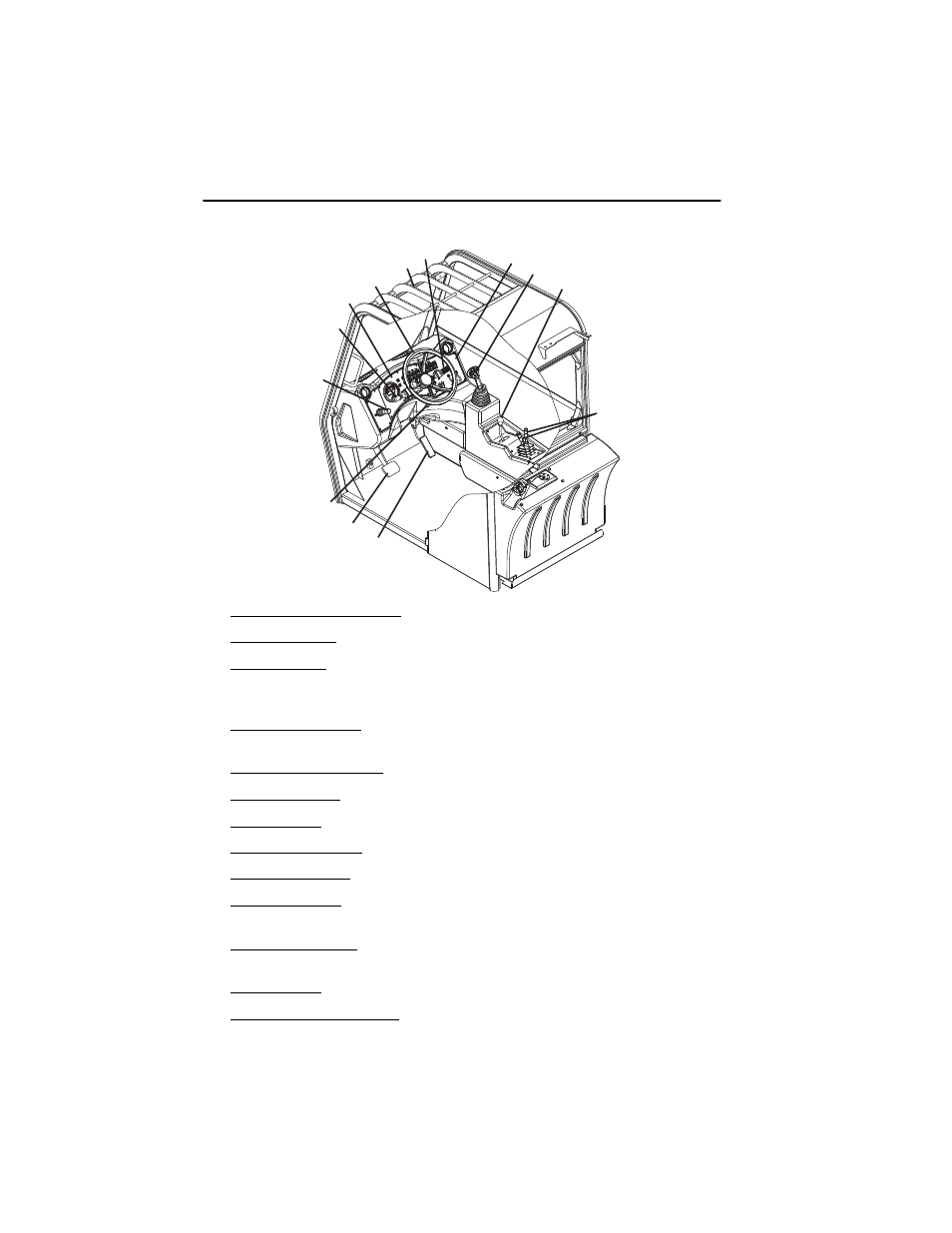

1. Transmission Control Lever: See page 3-10.
2. Instrument Panel: See page 3-6.
3. Steering Wheel: Turning the steering wheel to the left or right steers the
machine in the corresponding direction. Three steering modes are available.
See “Steer Modes” on page 3-22.
4. Frame Level Indicator: Enables the operator to determine the left to right level
condition of the telehandler.
5. Accessory Control Lever (if equipped): See page 3-20.
6. Right Hand Panel: See page XX.
7. Boom Joystick: See page 3-12.
8. Frame Level Joystick: See page 3-14.
9. Outrigger Joysticks: See page 3-15.
10. Accelerator Pedal: Pressing down the pedal increases engine and hydraulic
speed.
11. Service Brake Pedal: The further the pedal is depressed, the slower the travel
speed.
12. Ignition Switch: Key activated. See page 3-8.
13. Auxiliary Hydraulic Joystick: See page 3-16.
OY2370
8
5
9
1
4
2
3
6
7
10
11
12
13
