Side Tilt Carriage
Use Side Tilt Carriage Capacity Chart
To determine maximum capacity, refer to “Telehandler/
Attachment/Fork Capacity” on page 5-6.

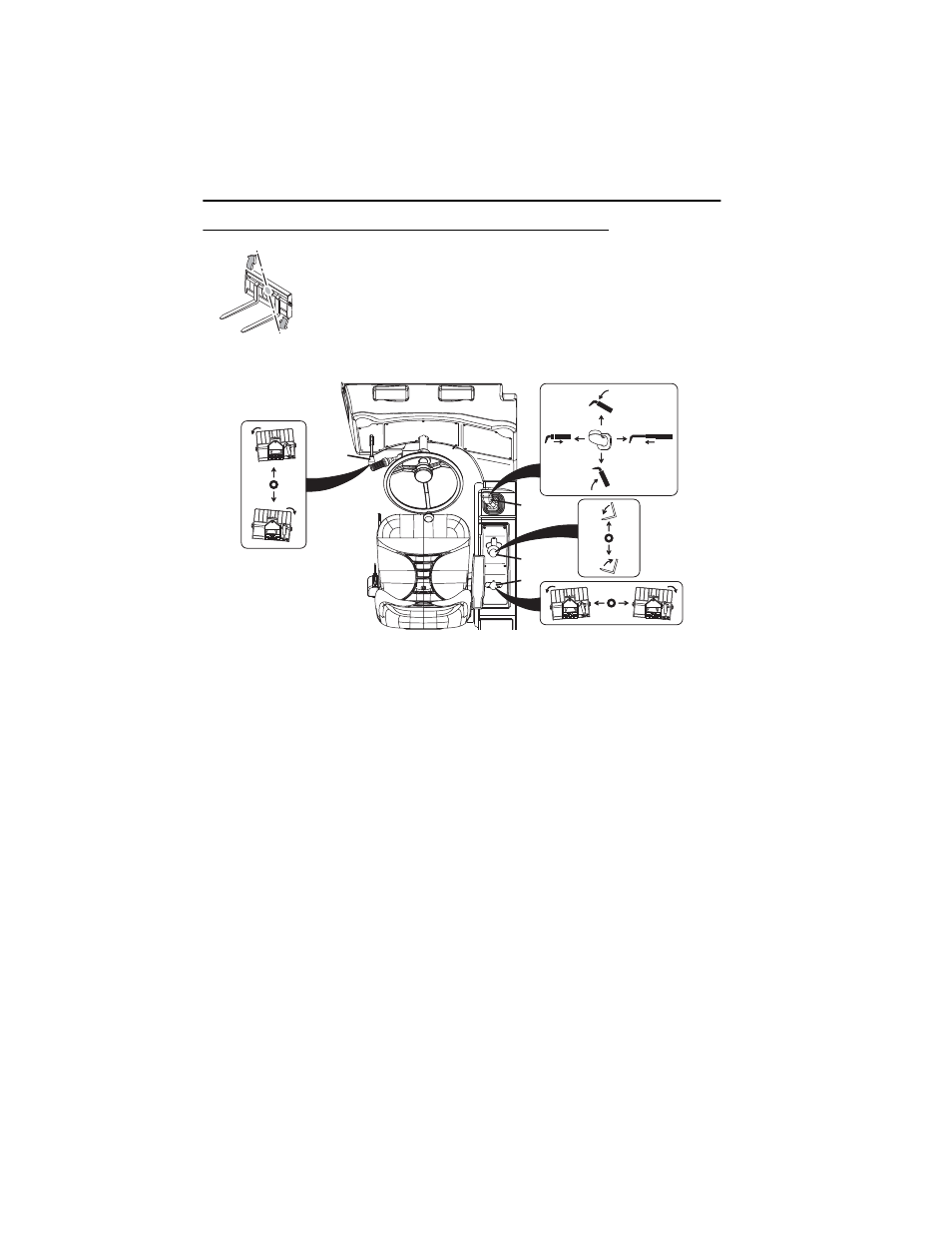

The boom joystick (1) controls lift/lower and extend/retract movement of the boom.
The attachment tilt joystick (2) controls fork tilt.
• Move joystick back to tilt up.
• Move joystick forward to tilt down.
To Side Tilt:
The auxiliary hydraulic joystick (3) controls the carriage side tilt.
Left Hand Hydraulic Joystick
• Move joystick up to (side) tilt left.
• Move joystick down to (side) tilt right.
Right Hand Hydraulic Joystick
• Move joystick left to (side) tilt left.
• Move joystick right to (side) tilt right.
OAL1550
OY2440
1
2
3
3
RIGHT HAND AUXILIARY
HYDRAULIC JOYSTICK
LEFT HAND AUXILIARY
HYDRAULIC JOYSTICK
