Section 5 - Attachments
5-26 31200150
Mast Carriage
Use Mast Carriage Capacity Chart
To determine maximum capacity, refer to “Telehandler/
Attachment/Fork Capacity” on page 5-6.

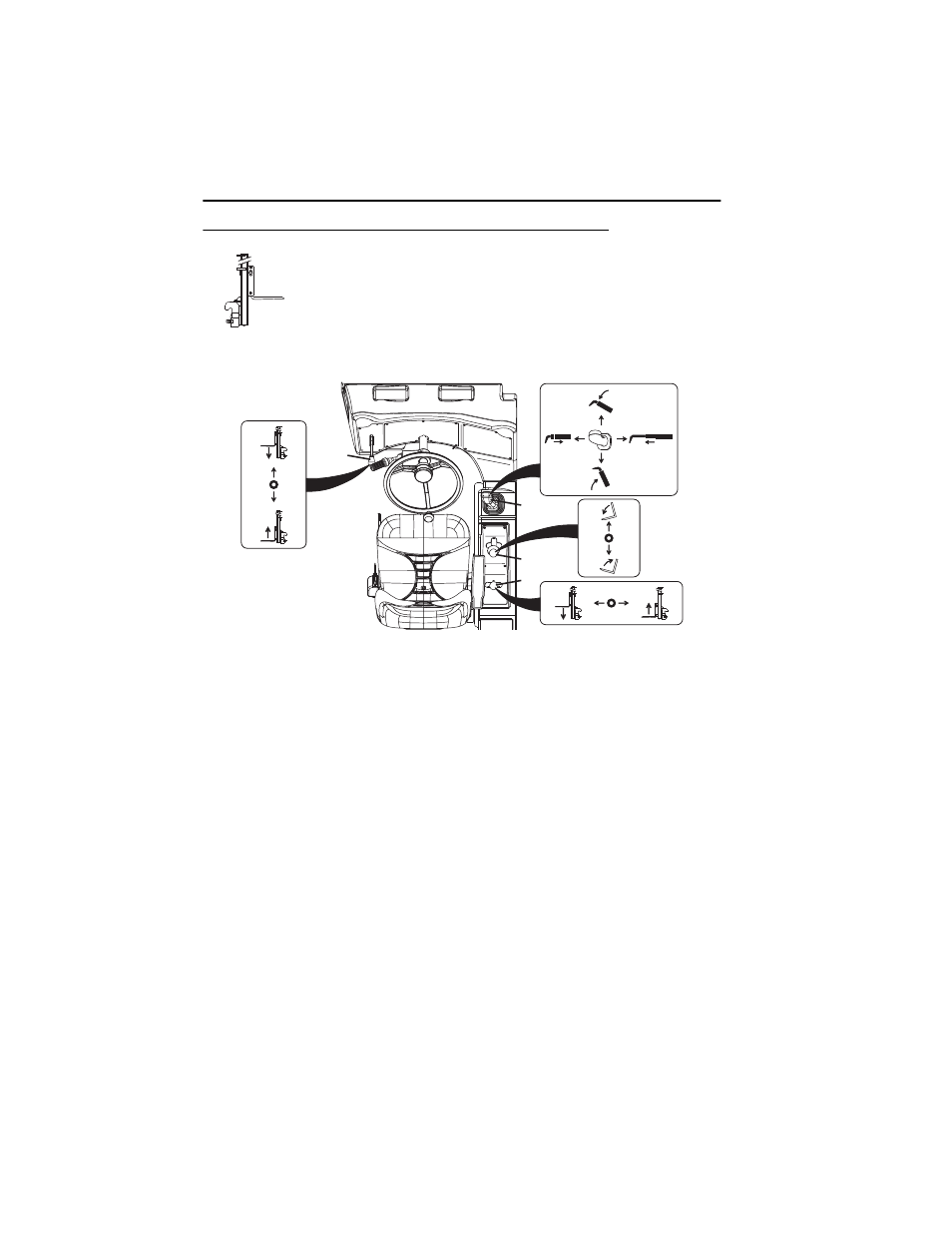

The boom joystick (1) controls lift/lower and extend/retract movement of the boom.
The attachment tilt joystick (2) controls fork tilt.
• Move joystick back to tilt up.
• Move joystick forward to tilt down.
To Raise/Lower Mast:
The auxiliary hydraulic joystick (3) controls the raise/lower movement of the mast.
Left Hand Hydraulic Joystick
• Move joystick up to lower.
• Move joystick down to raise.
Right Hand Hydraulic Joystick
• Move joystick left to lower.
• Move joystick right to raise.
OY0580
OY2460
1
2
3
3
RIGHT HAND AUXILIARY
HYDRAULIC JOYSTICK
LEFT HAND AUXILIARY
HYDRAULIC JOYSTICK
