Section 3 - Controls and Indicators
3-2
31200150
3.2
CONTROLS
Before S/N 0160040675 excluding 0160040468 & 0160040672
1. Transmission Control Lever: See page 3-10.
2. Instrument Panel: See page 3-6.
3. Steering Wheel: Turning the steering wheel to the left or right steers the
machine in the corresponding direction. Three steering modes are available.
See “Steer Modes” on page 3-22.
4. Frame Level Indicator: Enables the operator to determine the left to right level
condition of the telehandler.
5. Accessory Control Lever (if equipped): See page 3-20.
6. Boom Joystick: See page 3-12.
7. Frame Level and Attachment Tilt (if equipped) Joystick: See page 3-14.
8. Outrigger Joysticks (G10-43A): See page 3-15.
9. Heater and Air Conditioning Controls (if equipped): See page 3-19.
10. Accelerator Pedal: Pressing down the pedal increases engine and hydraulic
speed.
11. Service Brake Pedal: The further the pedal is depressed, the slower the travel
speed.
12. Ignition Switch: Key activated. See page 3-8.
13. Auxiliary Hydraulic Joystick (if equipped): See page 3-16.

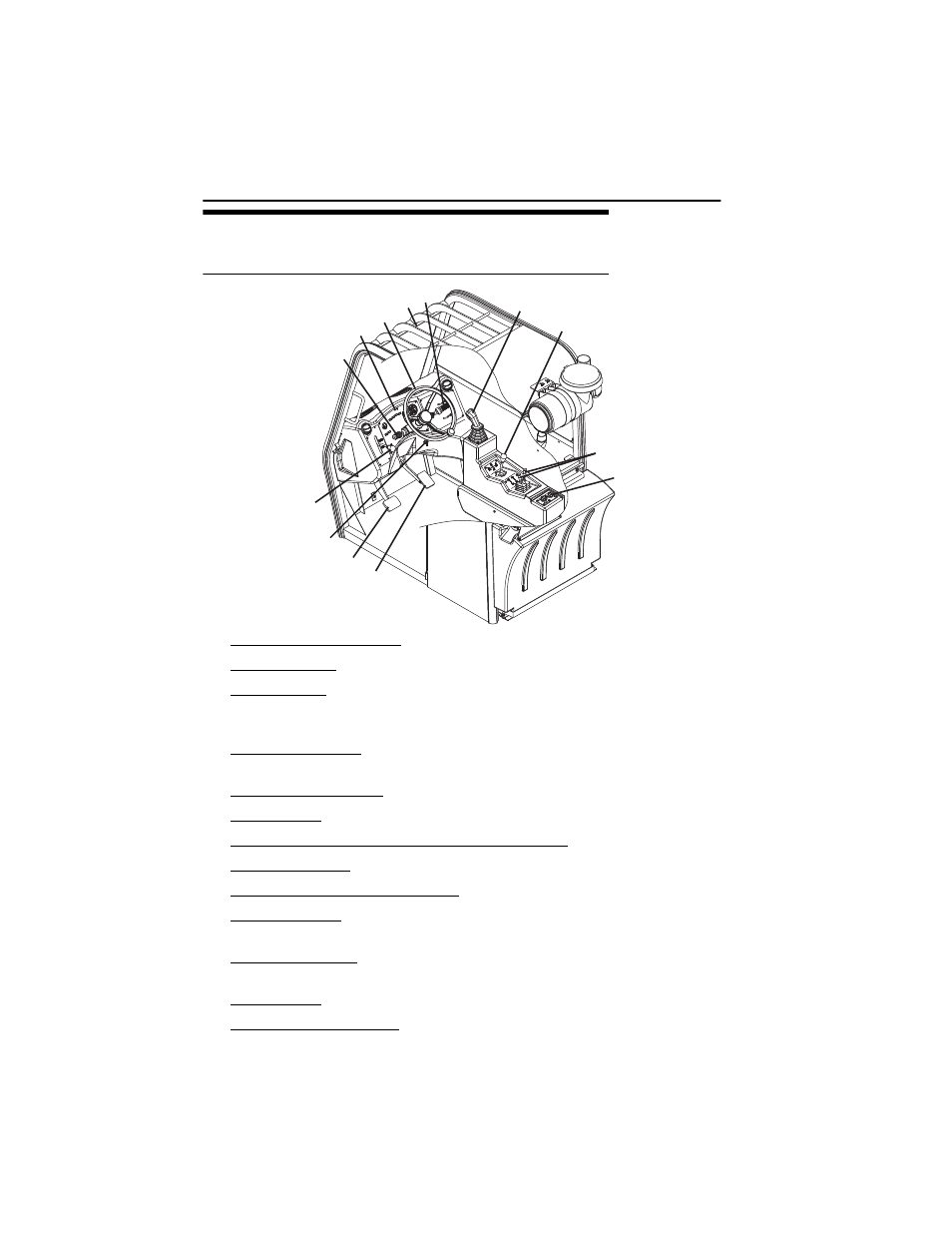

OY0025
5
10
11
12
13
1
2
3
4
6
7
9
8
