Section 5 - Attachments
5-36
31200150
Bucket
Use Appropriate Bucket Capacity Chart
To determine maximum capacity, refer to “Telehandler/
Attachment/Fork Capacity” on page 5-6.

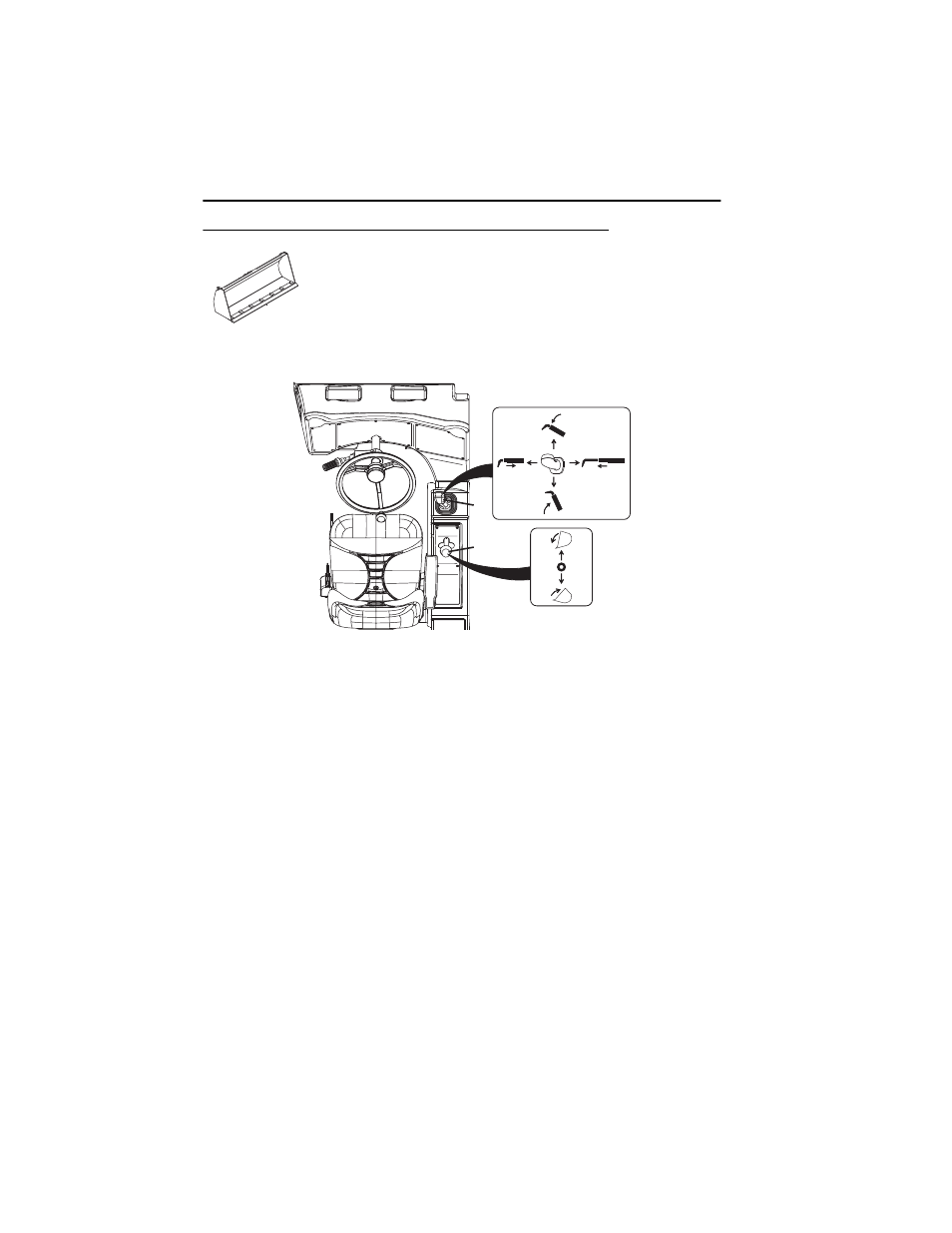

The boom joystick (1) controls lift/lower and extend/retract movement of the boom.
The attachment tilt joystick (2) controls bucket tilt.
• Move joystick back to tilt up.
• Move joystick forward to tilt down.
Installation Procedure:
• Refer to “Attachment Installation” on page 5-13.
Operation:
• Raise or lower boom to appropriate height for loading material from stockpile.
• Align telehandler with face of stockpile and drive slowly and smoothly into pile to
load bucket.
• Tilt bucket up far enough to retain load and back away from pile.
• Travel in accordance with requirements set forth in Section 1 - General Safety
• Tilt bucket down to dump load.
OZ0730
OY2221
