Section 5 - Attachments
5-22 31200150
Swing Carriage
Use Swing Carriage Capacity Chart
To determine maximum capacity, refer to “Telehandler/
Attachment/Fork Capacity” on page 5-6.

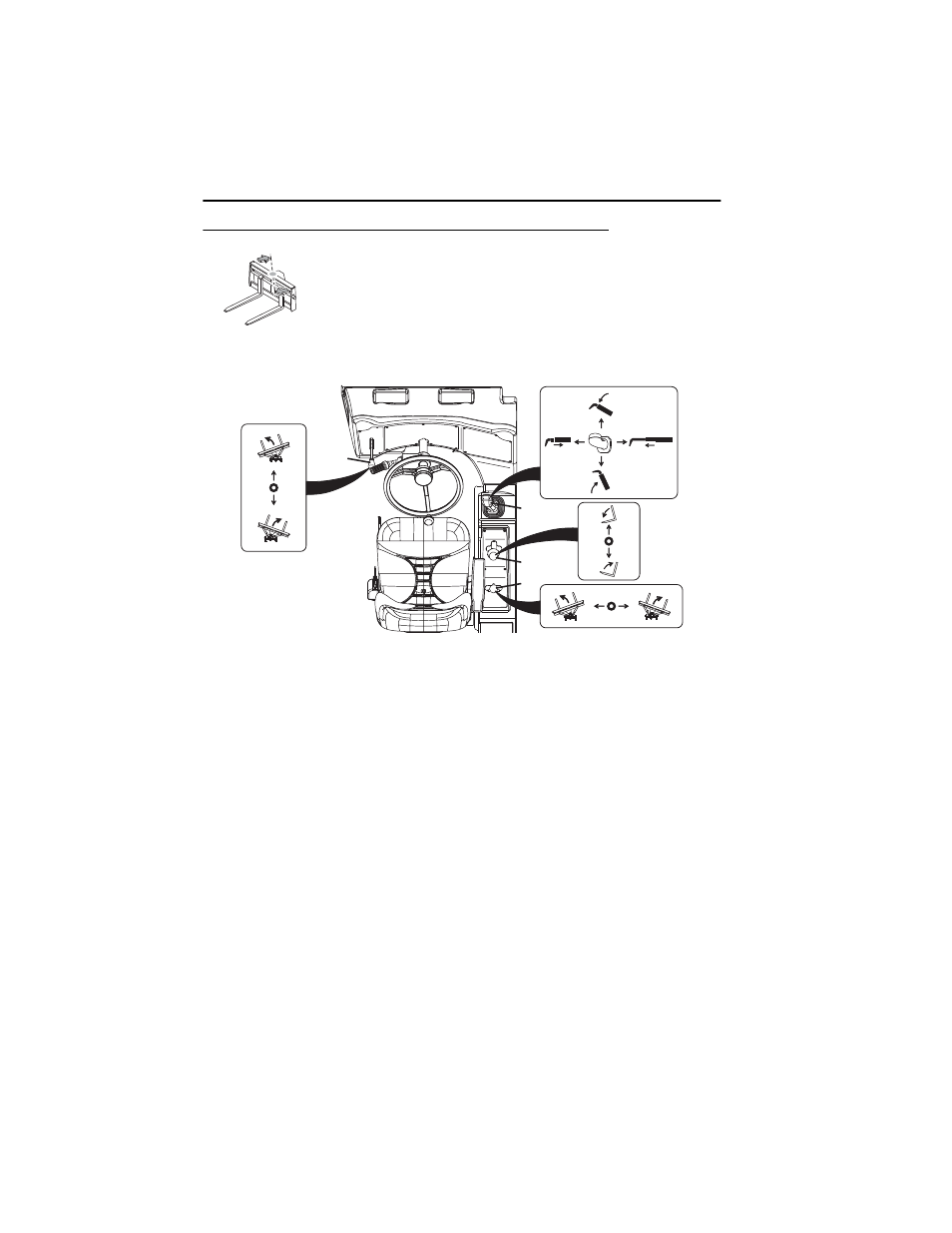

The boom joystick (1) controls lift/lower and extend/retract movement of the boom.
The attachment tilt joystick (2) controls fork tilt.
• Move joystick back to tilt up.
• Move joystick forward to tilt down.
To Swing:
The auxiliary hydraulic joystick (3) controls the swing function.
Left Hand Hydraulic Joystick
• Move joystick up to swing left.
• Move joystick down to swing right.
Right Hand Hydraulic Joystick
• Move joystick left to swing left.
• Move joystick right to swing right.
OU2150
OY2450
1
2
3
3
RIGHT HAND AUXILIARY
HYDRAULIC JOYSTICK
LEFT HAND AUXILIARY
HYDRAULIC JOYSTICK
