Section 5 - Attachments
5-38 31200150
Grapple Bucket
Use Grapple Bucket Capacity Chart
To determine maximum capacity, refer to “Telehandler/
Attachment/Fork Capacity” on page 5-6.

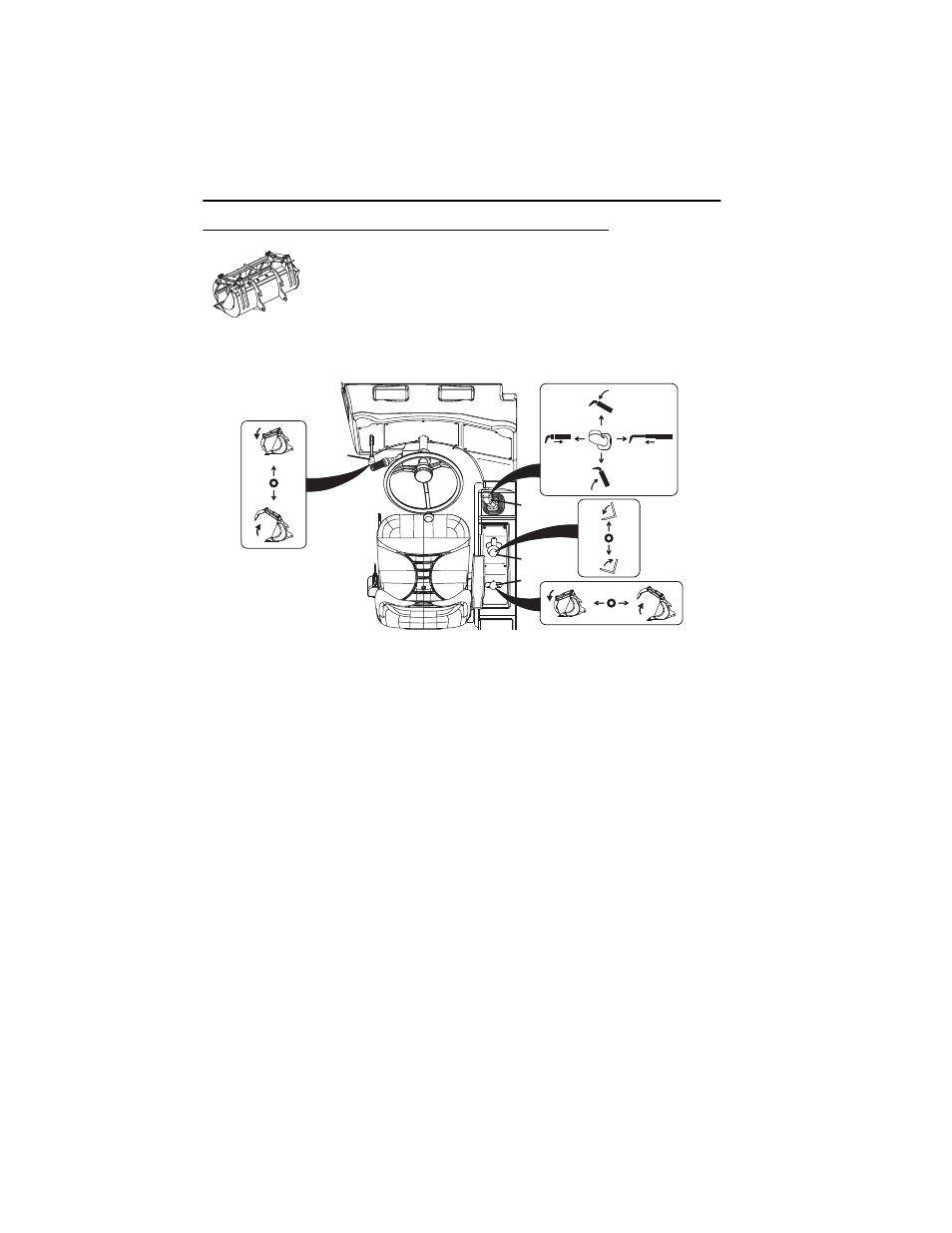

The boom joystick (1) controls lift/lower and extend/retract movement of the boom.
The attachment tilt joystick (2) controls grapple bucket tilt.
• Move joystick back to tilt up.
• Move joystick forward to tilt down.
To open/close grapple:
The auxiliary hydraulic joystick (3) controls the open/close movement of the grapple.
Left Hand Hydraulic Joystick
• Move joystick up to close grapple.
• Move joystick down to open grapple.
Right Hand Hydraulic Joystick
• Move joystick left to close grapple.
• Move joystick right to open grapple.
OZ1450
OY2510
1
2
3
3
RIGHT HAND AUXILIARY
HYDRAULIC JOYSTICK
LEFT HAND AUXILIARY
HYDRAULIC JOYSTICK
