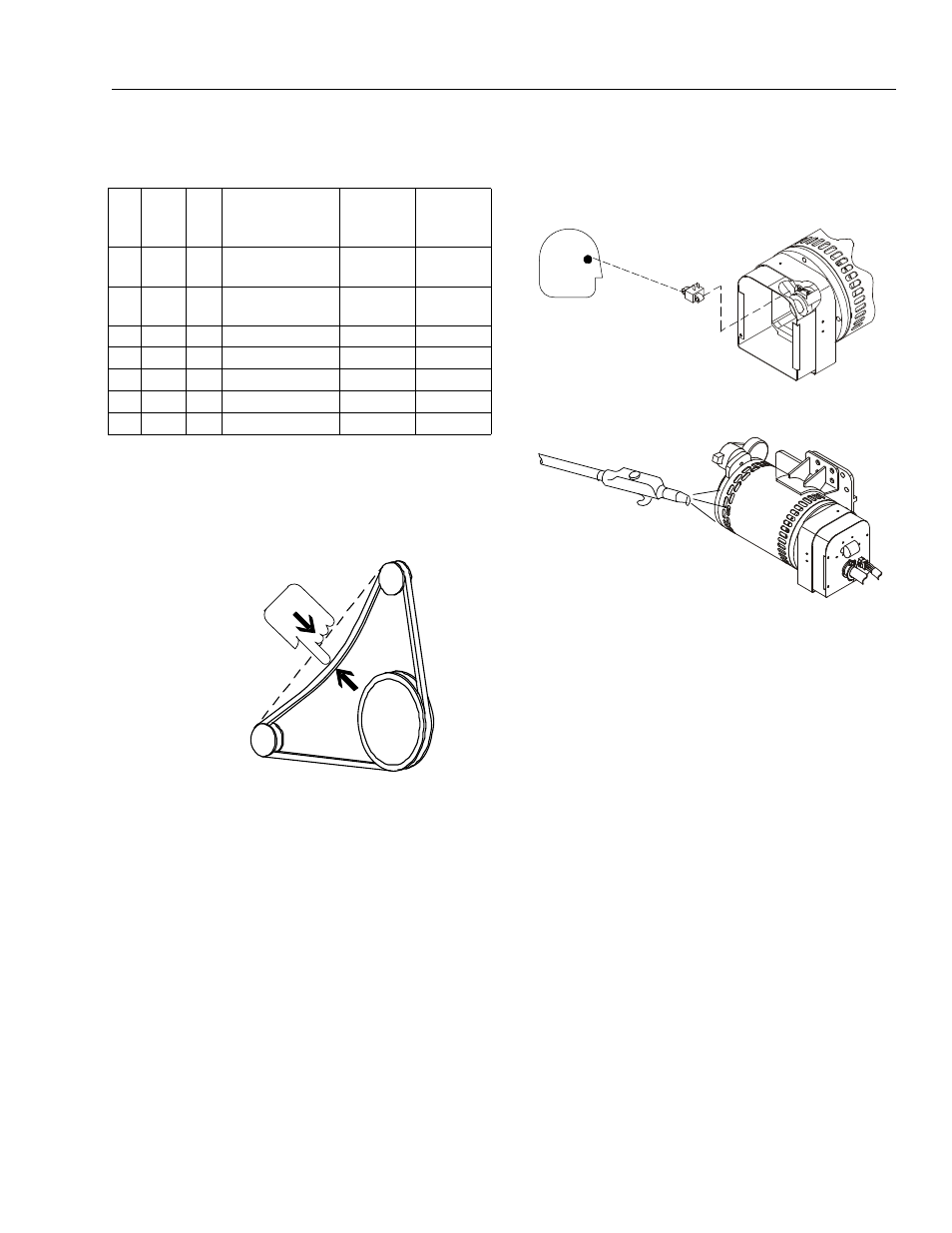

GENERATOR
Every 250 hours
Every 250 hours of operation, check the drive belt for proper
tension.
Every 500 hours
Every 500 hours of operation, service the generator brushes
and slip rings. Hostile environments may require more fre-
quent service.
Every 500 hours of service, blow out the inside of the genera-
tor. If operating in a hostile environment, clean monthly.
Table 3-6. Coupling Port Information Table
Port
No.
Outlets
Port
Size
Description
Operating
Pressure
PSI (Bar)
Proof
Pressure
PSI (Bar)
1
2
-12
Steer/Axle Extend
(Tank)
250 (17)
375 (26)
2
2
-10
Steer/Axle Extend (Pres-
sure)
3000 (207)
4500 (310)
3
1
-10
Drive A
3000 (207)
4500 (310)
4
1
-10
Drive B
3000 (207)
4500 (310)
5
1
-10
Drive A
3000 (207)
4500 (310)
6
1
-10
Drive B
3000 (207)
4500 (310)
7
2
-12
Case Drain
250 (17)
375 (26)
1/2 in.
(13 mm)
