SECTION 4 - CONTROL COMPONENTS
3121231
– JLG Lift –
4-17
4.7 PLATFORM CONTROL CONSOLE -
SERVICE PROCEDURES
General
DO NOT ATTEMPT TO DISASSEMBLE THE PLATFORM CONTROL
BOX IF MACHINE IS STILL UNDER WARRANTY. OPENING THE
PLATFORM CONTROL BOX WHILE THE MACHINE IS UNDER
WARRANTY WILL VOID THE WARRANTY. IF UNDER WARRANTY
REQUEST A REPLACEMENT BOX FROM THE FACTORY.
The platform control console allows for replacement of
nine (9) components.
• Emergency Stop Switch
• Key Switch
• Joystick Assembly
• Display/Controller Module
• Drive/Lift Mode Selector Switch
• Horn Button Switch
• Rear Cover
• Wiring Harness Connector Socket
• Mounting Bracket
Remove Platform Control Console
First remove the platform control console completely from
the platform assembly. See Section 4.3, Control Compo-
nents - Installation.

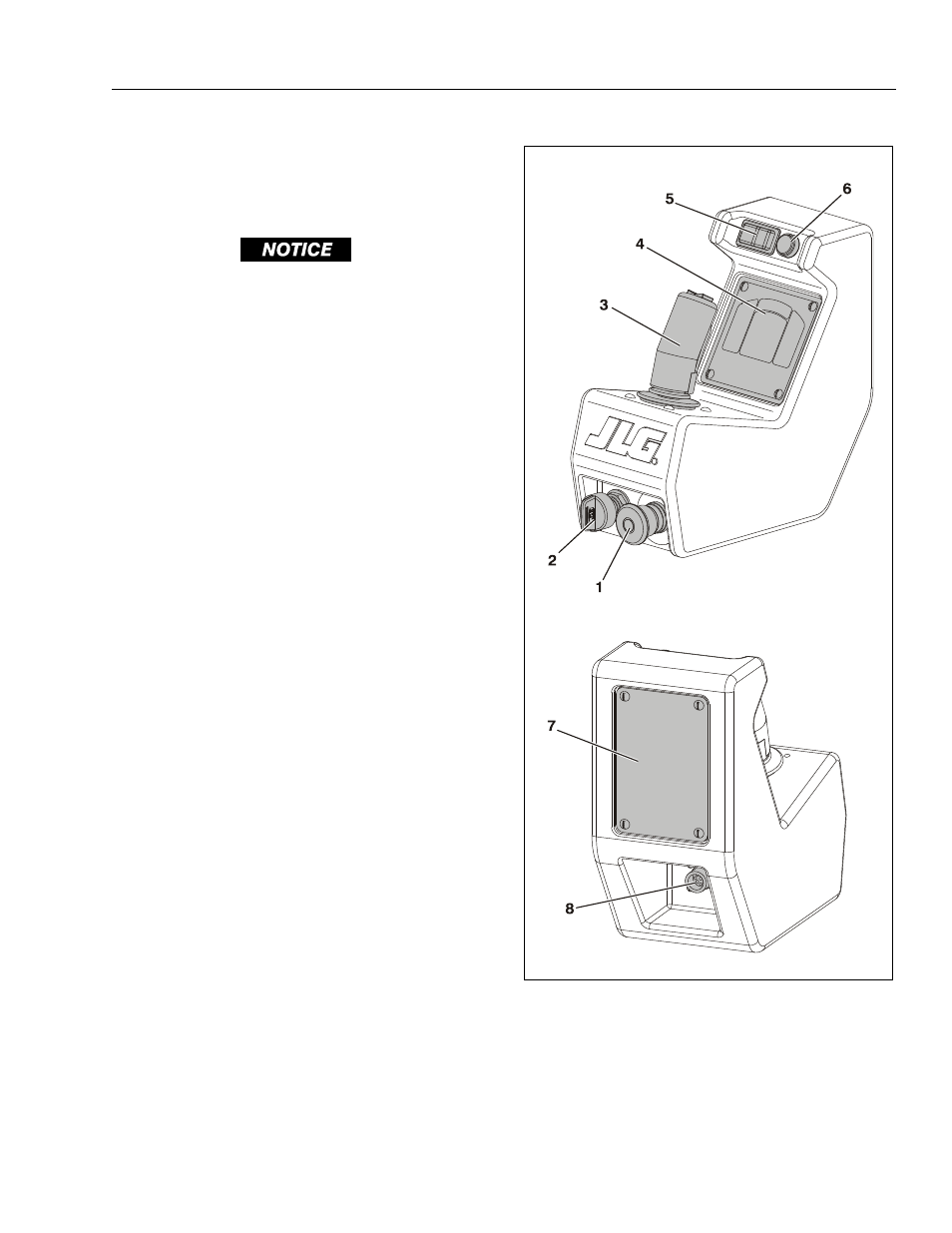

Figure 4-5. Platform Control Console Components.
1. E-Stop/Shut Down Switch 5. Drive/Lift Mode Selector Switch
2. ON/OFF Key Switch (a)
6. Horn Button Switch
3. Joystick Assembly
7. Rear Cover
4. Display/Controller Module 8. Wiring Harness Connector
NOTE: (a) No key switch on Australian spec. machines.
