SECTION 4 - CONTROL COMPONENTS
4-4 – JLG Lift – 3121231
Platform Control Console Installation
The platform control console is located in the platform and
mounted on the right side platform rail.
For removal see below, for servicing information see Sec-
tion 4.7, Platform Control Console - Service Procedures.
Horn Installation
Alarm Installation

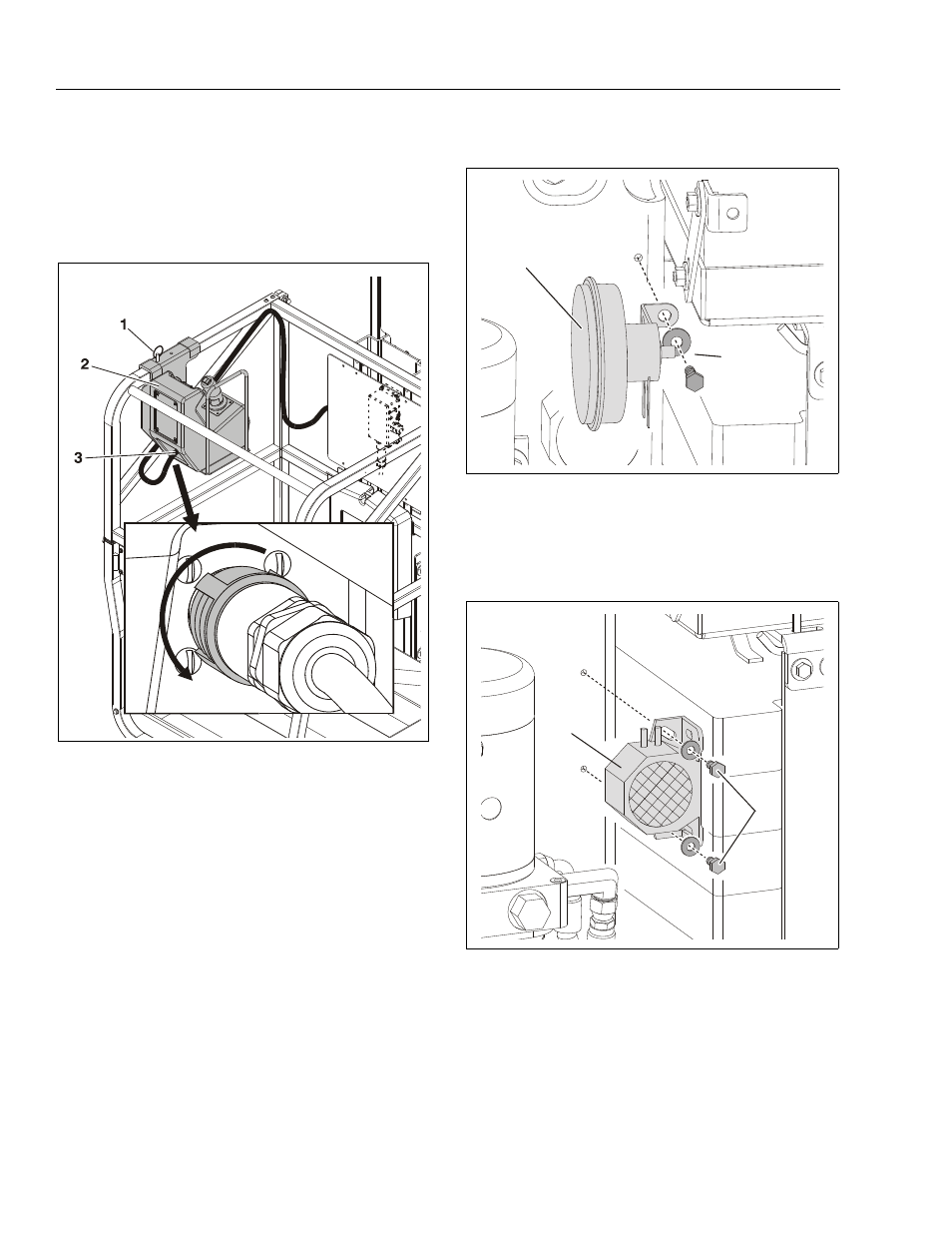

Platform Control Console - Installation
1. Console Mounting Bracket and Attach Pin
2. Platform Control Console
3. Platform Console to Junction Box Harness (a)
Note: (a) The other end of this harness is plugged into the plat-
form junction box mounted to the mast behind the platform
decal board. From the console the harness is tie strapped
to the platform rail, and run inside the mast through a large
hole in the mast to the platform junction box.
Horn Installation
1. Horn Assembly 2. Attach Screws/Washers
Note: See Figure 4-2. for wiring connection instructions.
Alarm Installation
1. Alarm Assembly 2. Attach Screws/Washers
Note: See Figure 4-2. for wiring connection instructions.
1
2
1
2
