SECTION 5 - MAST COMPONENTS
5-28 – JLG Lift – 3121231
5.9 MSP - STOCKPICKER PLATFORM - MID-
GATE INTERLOCK INSTALLATION
5.10 MAST BEACON - INSTALLATION

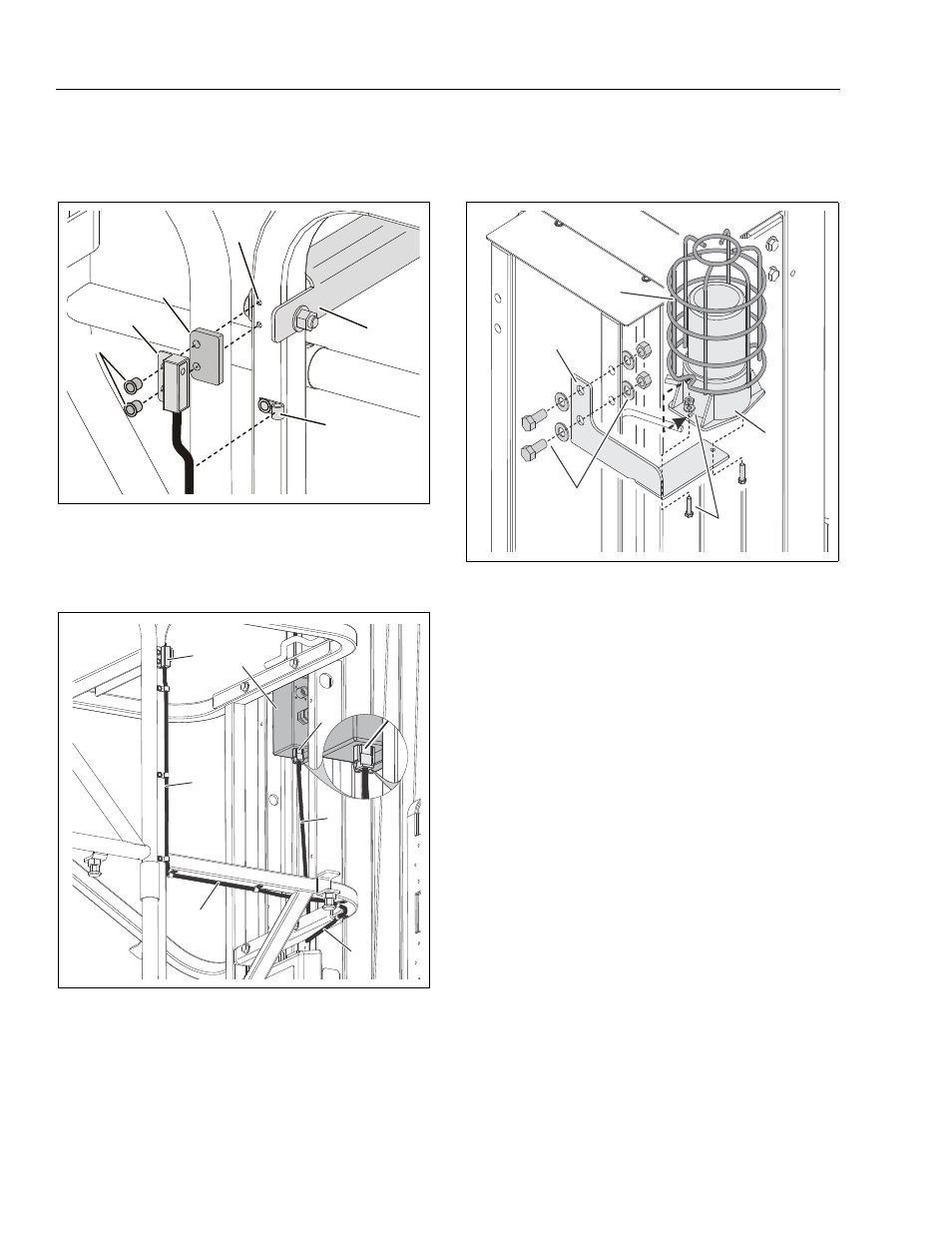

MSP - Platform - Mid-Gate Interlock Switch Installation
1. Pop Rivets 4. Mounting Holes
2. Interlock Switch 5. Mid-Gate
3. Spacer 6. Wire Harness Clamp
MSP - Platform - Mid-Gate Interlock Switch
Wiring Harness Routing
1. Interlock Switch 3. Connection at Junction Box
2. Wire Routing 4. Platform Junction Box
Note: Decal billboard removed in above illustration.
2
3
4
5
6
1
1
2
2
2
2
3
4
Mast Mounted Beacon Installation (MVL/MSP)
1. Beacon Mounting Bracket
2. Bracket Screws/Nuts/Washers
3. Beacon Screws/Nuts/Washers
4. Beacon
Assembly
5. Beacon Guard
(a)
Note: (a) Guard on UL-EE specification machines only.
1
2
3
4
5
