Operation
New Brunswick Innova 40/40R Shaker
English (EN)
26
5.6.3
Changing the setpoints
5.7
Summary screen
In the
SUMM
(summary) you can see both the,
ACTUAL
(measured) values and the
SET
(user-selected
setpoint values).

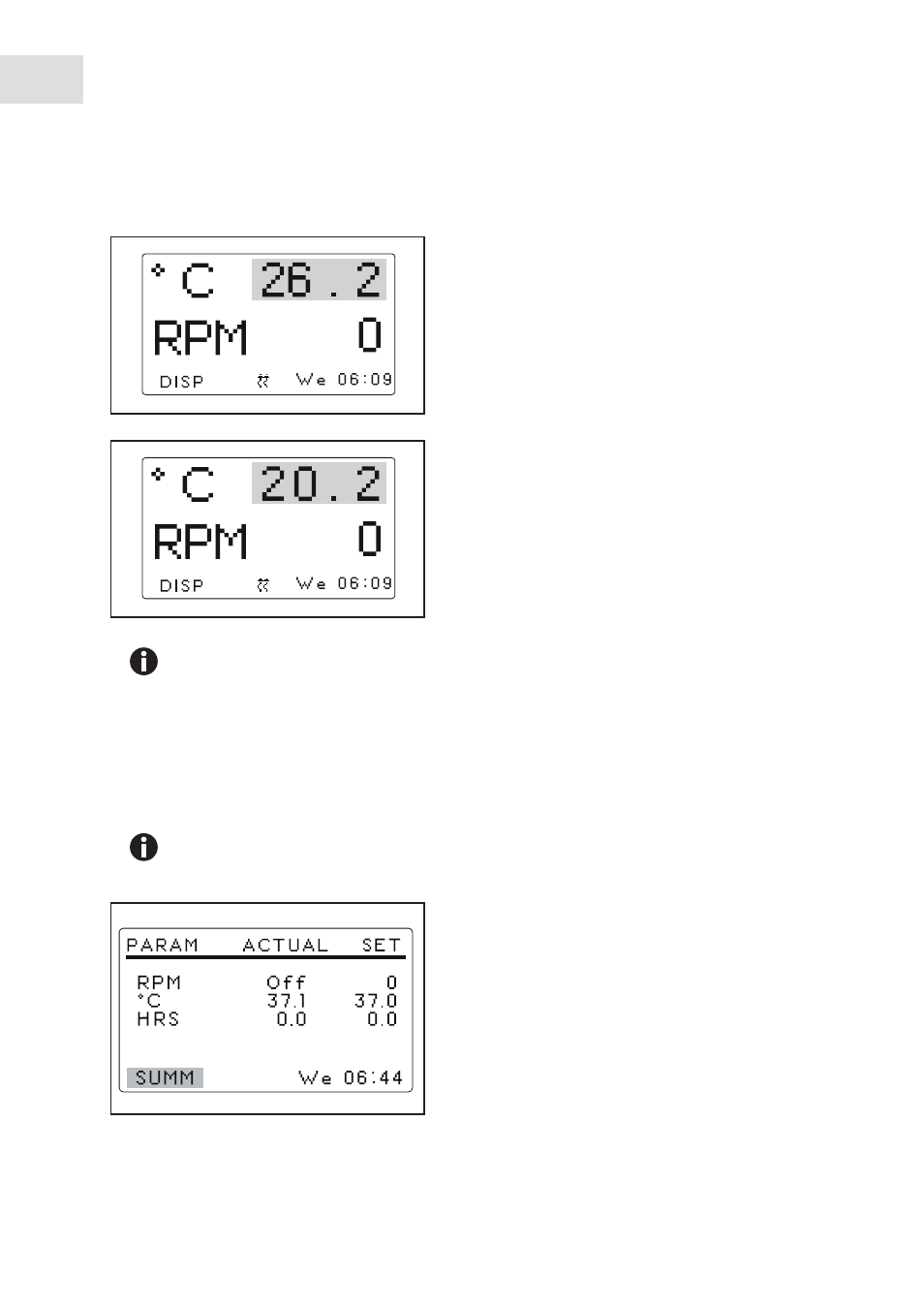

Abb. 5-4: Summary screen
Fig. 5-4:
Summary screen
1. Use the
Control knob to highlight the measured
(actual) value (
26.2
°C
in figure).
2. Press the
Control knob.
The setpoint will flash.
3. Turn the
Control knob to change the setpoint to
desired value (
20.2
°C
in figure).
The
Control knob will change by increments of
(
0.1 °C
). If you spin the
Control Knob fast, the
value will change by larger increments.
4. Click the
Control knob in to save the new
setpoint.
The display will automatically return to the
measured actual value.
• If you highlight an item, change it, but do not save your selection, after a few seconds the
screen will revert to its previous setting.
•
ACTUAL
values are the current measured values in the shaker. You cannot change the
values on the screen.
•
SET
values are the values the user selects.
