Eppendorf Innova 40R Shaker User Manual
Page 18
Installation
New Brunswick Innova 40/40R Shaker
English (EN)
18

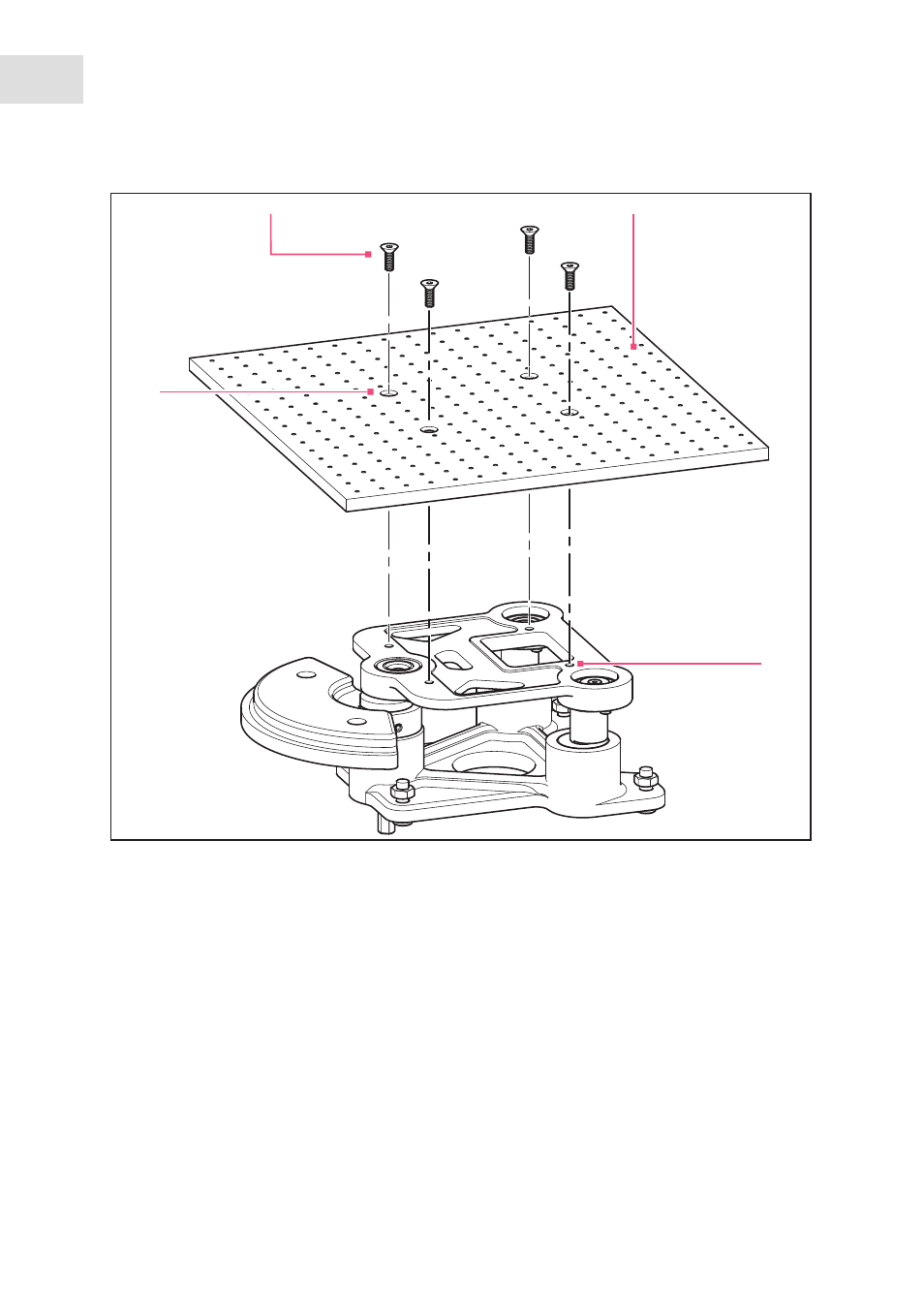

Abb. 4-1: Platform installation
Fig. 4-1:
Platform installation
1. Set the
Mains/Power switch off.
2. Open the lid.
3. With the Allen key provided, loosen and remove the 4 allen screws installed on the top plate of the
bearing housing (set screws aside for reuse).
4. Place the platform on top of the plate of the bearing housing and align the holes.
1
Allen screws
2
Platform
3
Platform holes
4
Housing plate holes
1
2
3
4
