Operation
New Brunswick Innova 40/40R Shaker
English (EN)
22
5.3
Operation
When the unit is powered up using the
Start/Stop switch located on the front panel (see Fig. 5-1 on p. 21),
the initial display screen will remain for a short time while the system boots up.
Then the main screen, called
DISP
for Display, appears. This screen will indicate the same parameters that
were in effect when the power was turned off.

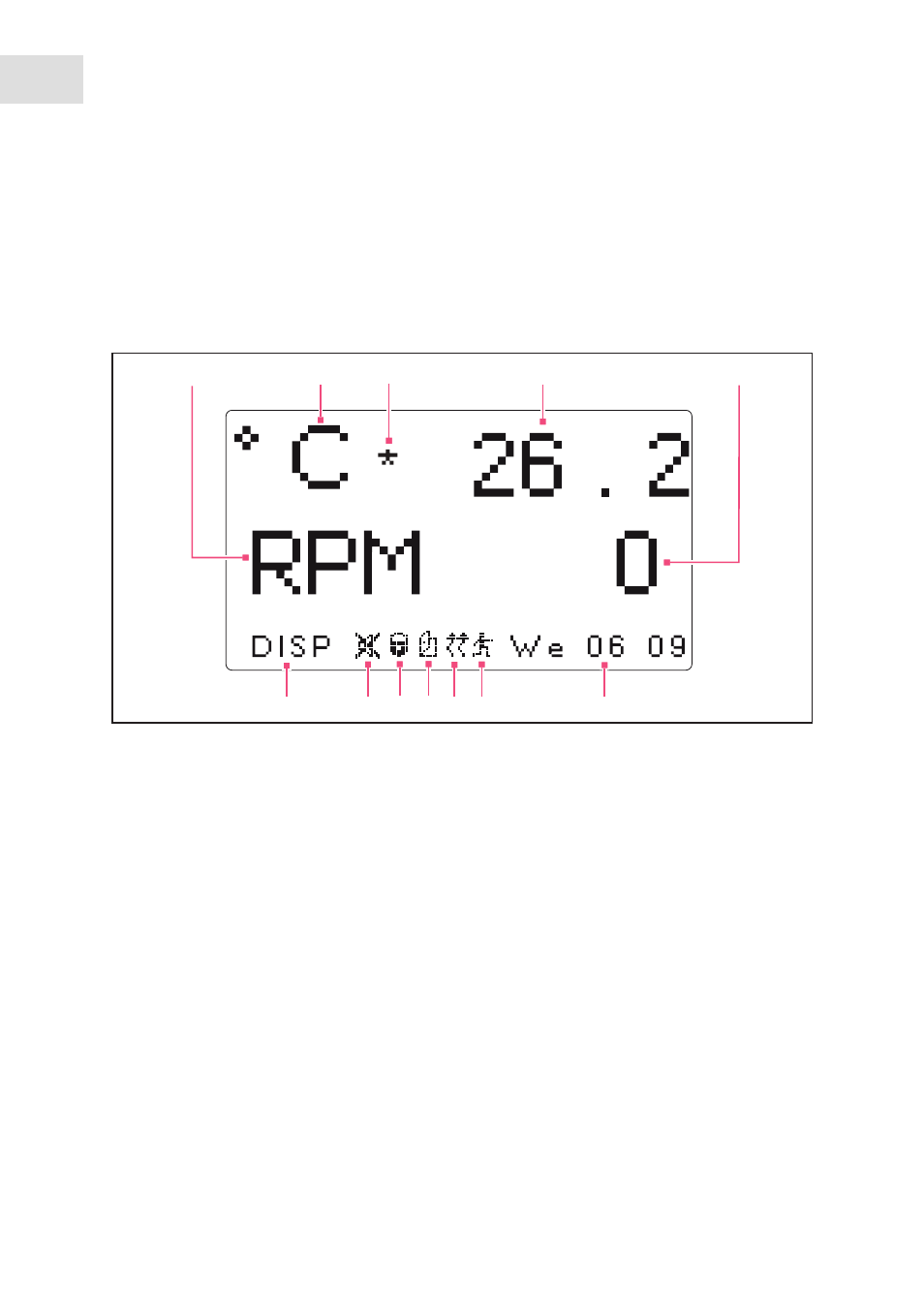

Abb. 5-2: Display screen
Fig. 5-2:
Display screen
1
Speed
Parameters in rpm (revolutions per minute).
2
Temperature
Parameters in degrees Celsius.
3
Temperature offset
This icon appears to the right of ºC if the
Temperature Offset feature is being used.
4
Temperature
Temperature parameter value
5
Speed
Speed parameter value
6
Day & 24-hour time
7
Program running
Icon appears when user-defined program is
running.
8
Heater on
Icon appears when heater is on
9
Lid open
Icon appears when lid is open
10 Parameters locked
This icon appears when the possibility to make
manual or programmed parameter changes is
disabled (locked). This is controlled by settings
on the
SET
screen.
11 Audible alarms muted
Icon appears when audible alarms are muted
12 Screen name
