Platform Raise/Lower Switch
The platform raise/lower switch is used to raise or lower
the platform. The switch is spring returned to the center
off position.
y
Hold the switch upward to raise the platform.
y
Hold the switch downward to lower the platform.
y
An alarm will sound as the platform lowers.
Upper Controls
The upper controls (refer to Figure 7.3) are located on the
control panel in the platform. Platform and drive functions
can be operated from the upper controls.

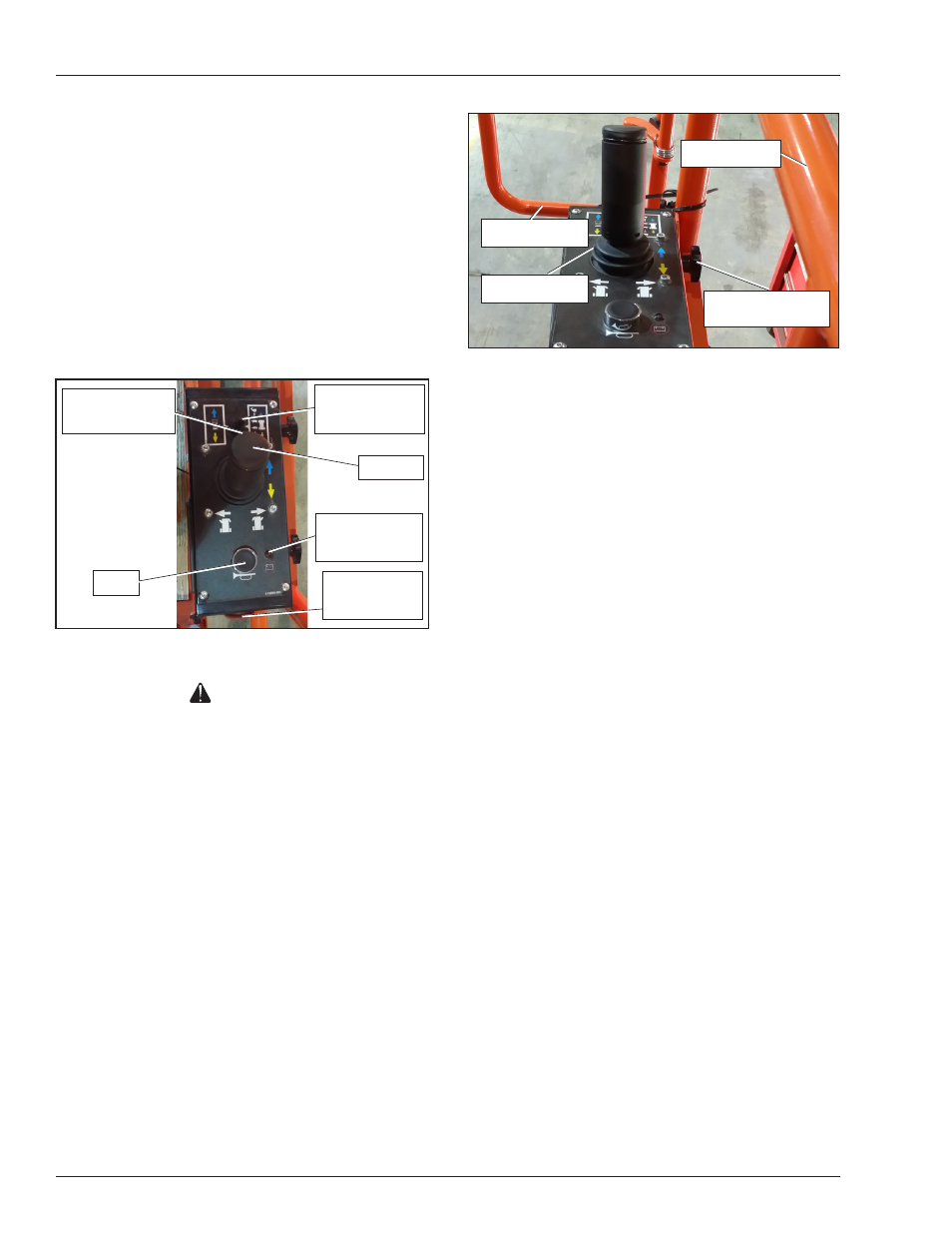

Figure 7.3 – Upper Controls
Warning
The potential for an accident increases from improp-
erly driving or steering the aerial platform. Death or
serious injury could result from such accidents. Make
sure the upper control panel is facing the front of
the platform, hooked on the guardrail, and hanging
inside the platform.
Avoid driving the platform with the upper controls facing
the rear or side of the machine. In this position the ma-
chine is difficult to control because the drive and steer
control movements and their resulting machine move-
ments will not correspond.
Only operate the upper controls when the panel is facing
the front of the platform ( entry gate ), securely fastened
on the guardrail inside the platform (Refer to Figure 7.4).
Figure 7.4 – Upper Control Operating Position
The following controls are located on the upper control
panel:
y
Emergency stop button
y
Drive/lift selector switch
y
Joystick to control platform lift, drive, and steer
y
Horn Button
y
Interlock Switch
The battery condition indicator display is also be located
on the upper control station side (LCD).
Emergency Stop Button
The emergency stop (refer to Figure 7.3) is a two-position,
red push button on the front of the upper control panel.
y
Push the button inward to disconnect power from all
control circuits at the upper controls.
y
Pull the button outward to restore power.
y
Push the emergency stop button inward when the
upper controls are not in use to protect against unin-
tentional operation.
Note
The lower controls override the upper controls. If the
upper control emergency stop is engaged the lower
controls can still be used to operate the aerial platform.
Push the button in when the upper controls are not in use
to help protect against unintentional platform operation.
Drive/Lift Selector Switch
The drive/lift selector switch (refer to Figure 7.3) is used
to select either machine drive or lift functions. Both func-
tions can not be operated at the same time.
y
Place the drive/lift selector switch in the drive position
to drive the aerial platform using the joystick. The
platform will not raise or lower while driving.
y
Place the drive/lift selector switch in the lift position to
raise and lower the platform using the joystick.
Horn
Interlock Switch
(on joystick)
Top Guardrail
Upper Controls
Entry Gate
Guardrail Fastener
Battery Warning
LED
Joystick
Emergency
Stop Button
Drive/Lift
Selector Switch
