Snorkel S3010E - Manual (Page 17)

S3010E - 514226-000-ANSI 13
The aerial platform is equipped with several gauges to
monitor the condition of the machine before and during
operation.

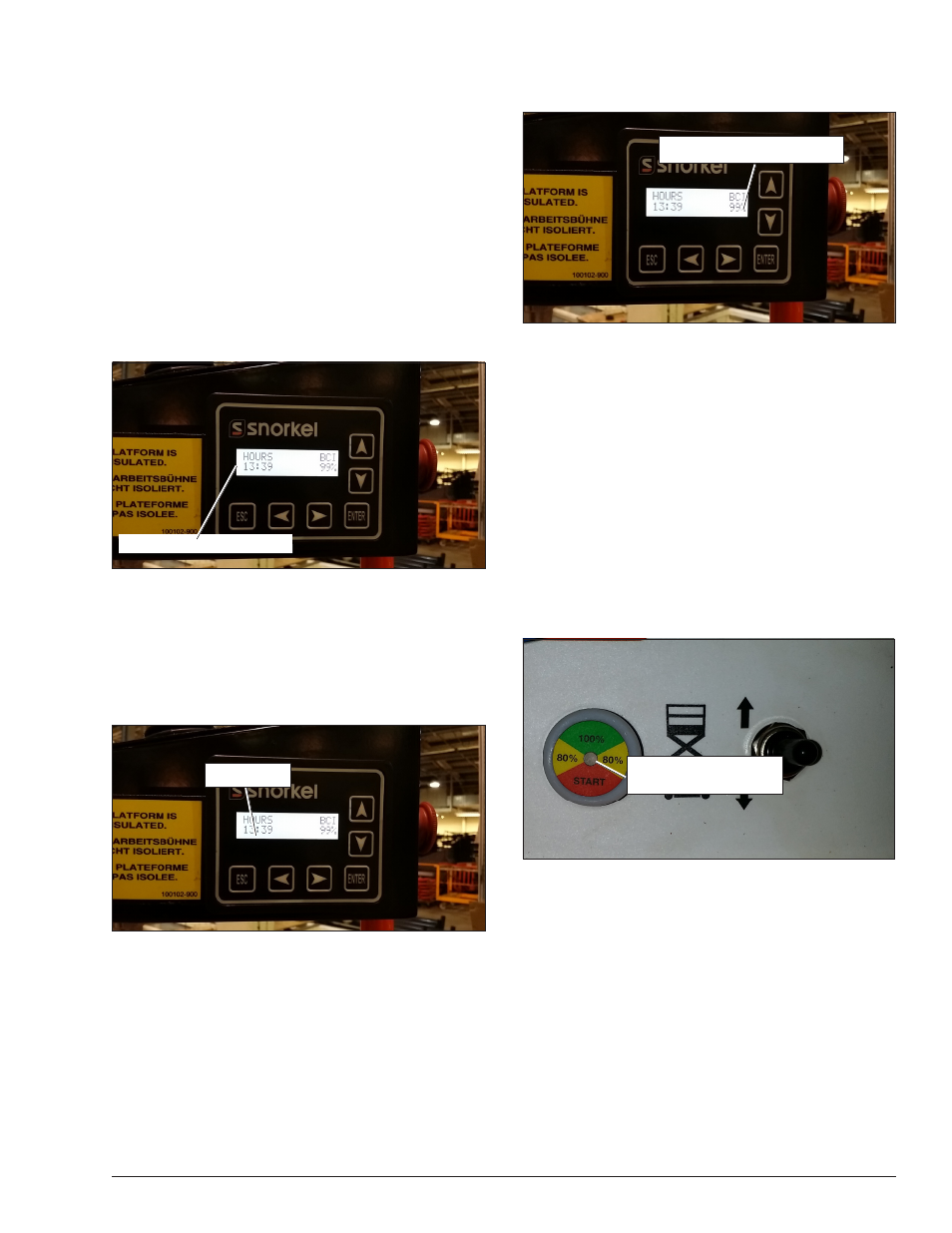

Diagnostic Center Display
The diagnostic center display (refer to Figure 5.1) is
located at the side of the upper control panel.
When the Selector Switch and emergency stop switch
are in the on position, the display shows:
• The accumulated aerial platform operating time
• The available battery power to operate the machine.
Figure 5.1 – Diagnostic Center Display
Hour Meter
The hour meter is displayed on the Diagnostic Center
display located on the upper control panel side (refer to
Figure 5.2). It measures the accumulated aerial platform
operating time.
Figure 5.2 – Upper Controls
Figure 5.3 – Upper Controls
Battery Condition Indicator
The battery condition indicator is displayed on the Diag-
nostic Center display located on the upper control panel
side (refer to Figure 5.3). It displays the level of available
battery power to operate the aerial platform in percentage.
Battery Charge Indicator
The battery charge indicator LED’s are visible on the
battery tray (refer to Figure 5.4).
y
RED = Charging Start (0% - 79% charged)
y
YELLOW = 80%
y
GREEN = 100%, Fully charged.
Figure 5.4 – Battery Charger L.E.D
Chapter 5 – Gauges and Displays
Battery Condition Indicator
Hour Meter
LED Battery Charge
Indicator
Diagnostic Center Display
