Chapter 10 – Stowing and Transporting
To prevent unauthorized use and damage, properly stow
the aerial platform at the end of each work day. It must
also be properly stowed while transporting.
Stowing
Use the following procedure to properly stow the aerial
platform.
1. Fully lower the platform.
2. Push the emergency stop button in on the lower
control panel.
3. Turn the control selector switch off and remove the
key.
4. Securely close the pull-out tray.
Transporting
The aerial platform may be moved on a transport vehicle.
Depending on the particular situation, the aerial platform
may be lifted with a forklift, driven, winched, or hoisted
onto a vehicle such as a truck or trailer. Lifting with a
forklift is the preferred method.
The equipment used to load, unload, and transport the
aerial platform must have adequate capacity. The empty
vehicle weight is listed in Chapter 2 and is stamped on
the serial number placard.
The user assumes all responsibility for:
y
Choosing the proper method of transportation.
y
Choosing the proper selection and use of transporta-
tion and tie-down devices.
y
Making sure the equipment used is capable of sup-
porting the weight of the aerial platform.
y
Making sure all manufacturer’s instructions and warn-
ings, regulations and safety rules of their employer,
the DOT, and/or any other state or federal law are
followed.
Lifting With a Forklift
Use the following procedure to lift the aerial platform with
a forklift.
1. Properly stow the aerial platform.
2. Remove all personnel, tools, materials, or other loose
objects from the platform.
3. Insert the forklift forks into the folklift pockets located
on either side of the machine (refer to Figure 10.1
and 10.2).

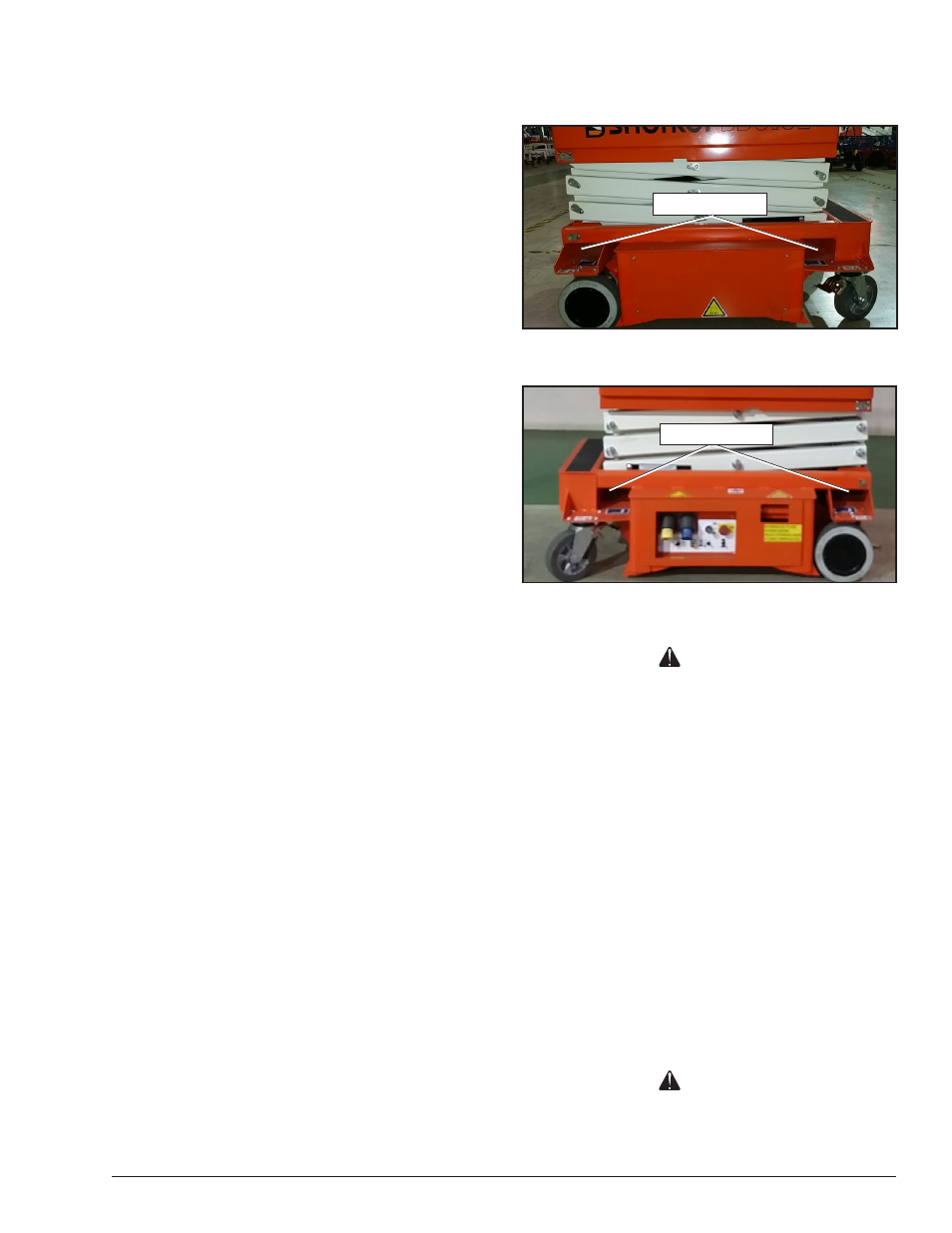

Figure 10.1 – Right side of Chassis
Figure 10.2 – Left Side of Chassis
Caution
Lifting the aerial platform with the forklift forks
positioned improperly can produce enough force
to damage machine components. When lifting the
machine, place the forklift forks carefully. Only use
the designated lift pockets.
4. When lifting the machine, insert the forklift forks di-
rectly and fully into designated pockets while avoiding
contact with the machine side (refer to Figure 10.1
and 10.2).
5. Do not raise the aerial platform higher than necessary
to transport it. Drive the forklift slowly and carefully
when transporting the aerial platform.
Winching
Use a winch to load and unload the aerial platform on
ramps that exceed the machine gradeability specifica-
tion. A winch may also be used when poor traction, un-
even surfaces, or stepped ramp transition make driving
hazardous. The machine cannot be winched if disabled
and must be fully functioning before proceeding with the
winching proccess.
Caution
Damage to the aerial platform and/or drive system
may occur if the machine drive system is disabled
while the winching process is being carried out.
Forklift Pockets
Forklift Pockets
