2. When the platform is being lowered the alarm horn is activated. The purpose for this is to

warn personnel to stand clear of the scissors lift.

3. OUT OF LEVEL ALARM
4. If the alarm light is flashing ½ second on and ½ second off the out of level alarm is on. With

‘OUT OF LEVEL ALARM’ active the scissors lift is not level. See leveling procedure.

5. PLATFORM OVERLOADED
6. If ‘OVERLOADED’ LED is lit the weight rating for the load has been exceeded. The

operator should lower the loading to below the maximum rating. The lift will not operate in
over-loaded condition if it has the optional overload sensing device.

LEG POSITION

8. There are four outrigger position indicating lights. These lights must be on to operate the

machine. Exception, the scissors lift may be equipped with the variable height option. These
machines will have a switch on the control box that allows operation at a lower height if on.
The machine is stable to this lower height with the outrigger legs in. If the machine is not
equipped with the green indicator light for variable height the switch will be off, the alarm
light will be lit and the alarm horn will sound. In this state the operator will not be able to
lift the platform.

9. LOW VOLTAGE ALARM

10.

If the battery has a low charge the low battery light will be lit. The alarm light will

be lit and the horn will sound. The batteries must be charged before continuing operation of
the lift.

DO NOT OPERATE THE MACHINE WITH LOW

CHARGE ON THE BATTERIES.

MAINTENANCE AND TROUBLE SHOOTING

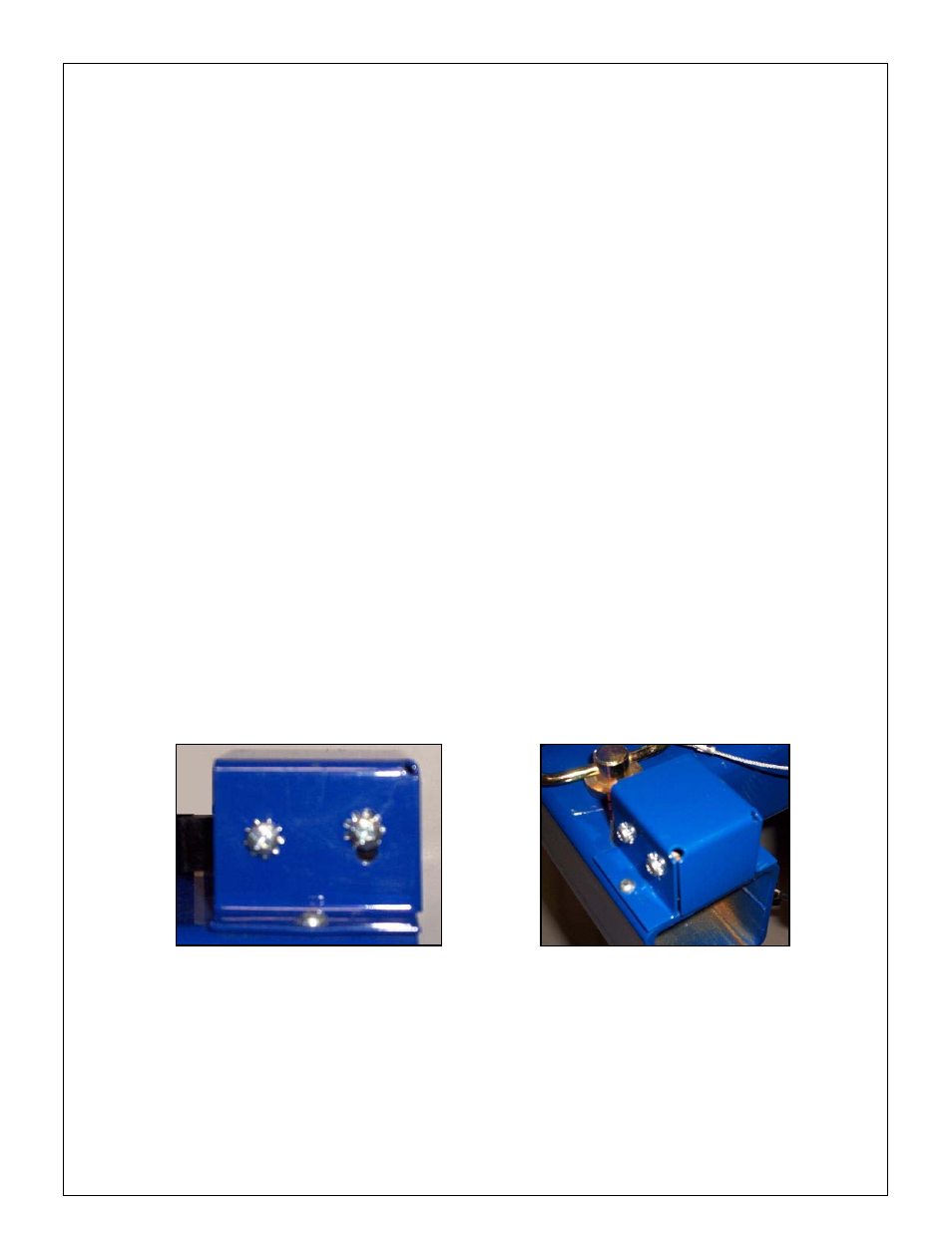

OUTRIGGER SWITCHES ADJUSTMENT PROCEDURE:
