1/31/2008 - 26 -
Machine controls with option “variable height”
at ground level
Your TP 7000 or TP 9000 can be equipped with a variable height selector option. Activation
of this feature is achieved by turning the selector switch to the “variable height position.” Variable
height selection gives you the option to operate the machine with the outriggers in the “in” or at
their narrowest position. This feature still requires that the outriggers “sense” pressure. The unit
will not operate if the outrigger pads are not firmly on the ground. With the selector turned to the
“variable height” position, you may safely operate the lift to a height of twelve (12) feet. The
machine will automatically stop rising at the twelve foot level. It is important to note: Your TP
7000 or TP 9000 will only rise to its full height with all four (4) of the outriggers in the fully
deployed (extended) position.

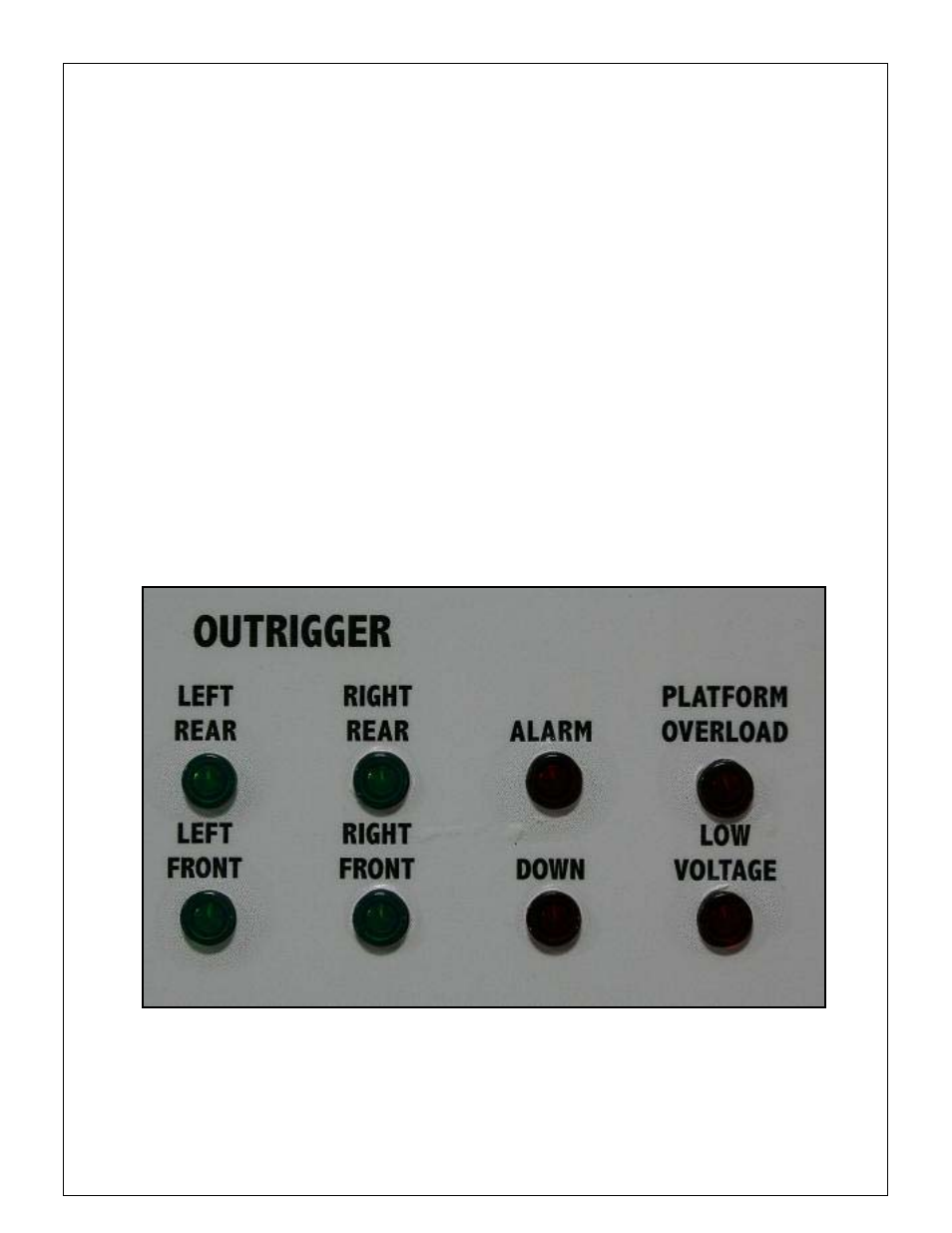

ALARMS AND ALARM LIGHTS
•
•
•
•
•
•
1. DOWN ALARM
