1/31/2008 -

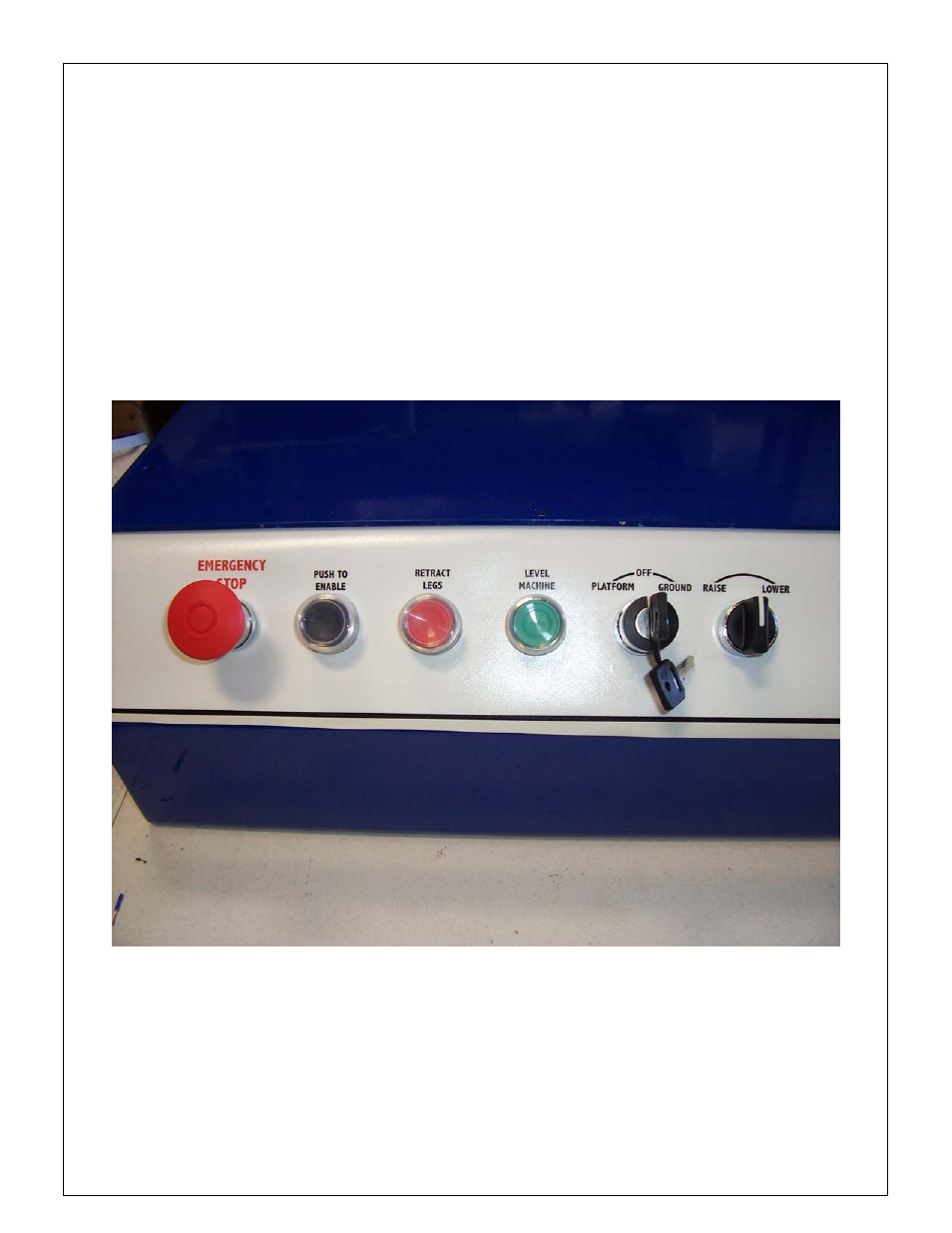

NOTE: On European machines the enable button is moved to the left 3 slots

LEVELING PROCEDURE

1. This unit is designed for leveling with the scissors lift disconnected from the towing vehicle
2. This unit is designed to be used with the outriggers deployed and pinned at all times when

not in the trailer configuration

3. Inspect the ground where the jacks will contact. If the ground is soft, move the unit to

firmer ground

4. With the control switch on the control box in either the ground position, push the green

button marked ‘LEVEL MACHINE’

Problems with Machine Leveling

The scissors lift will level itself, unless there is a problem.
Problems could include the following.

1. Dead battery,
