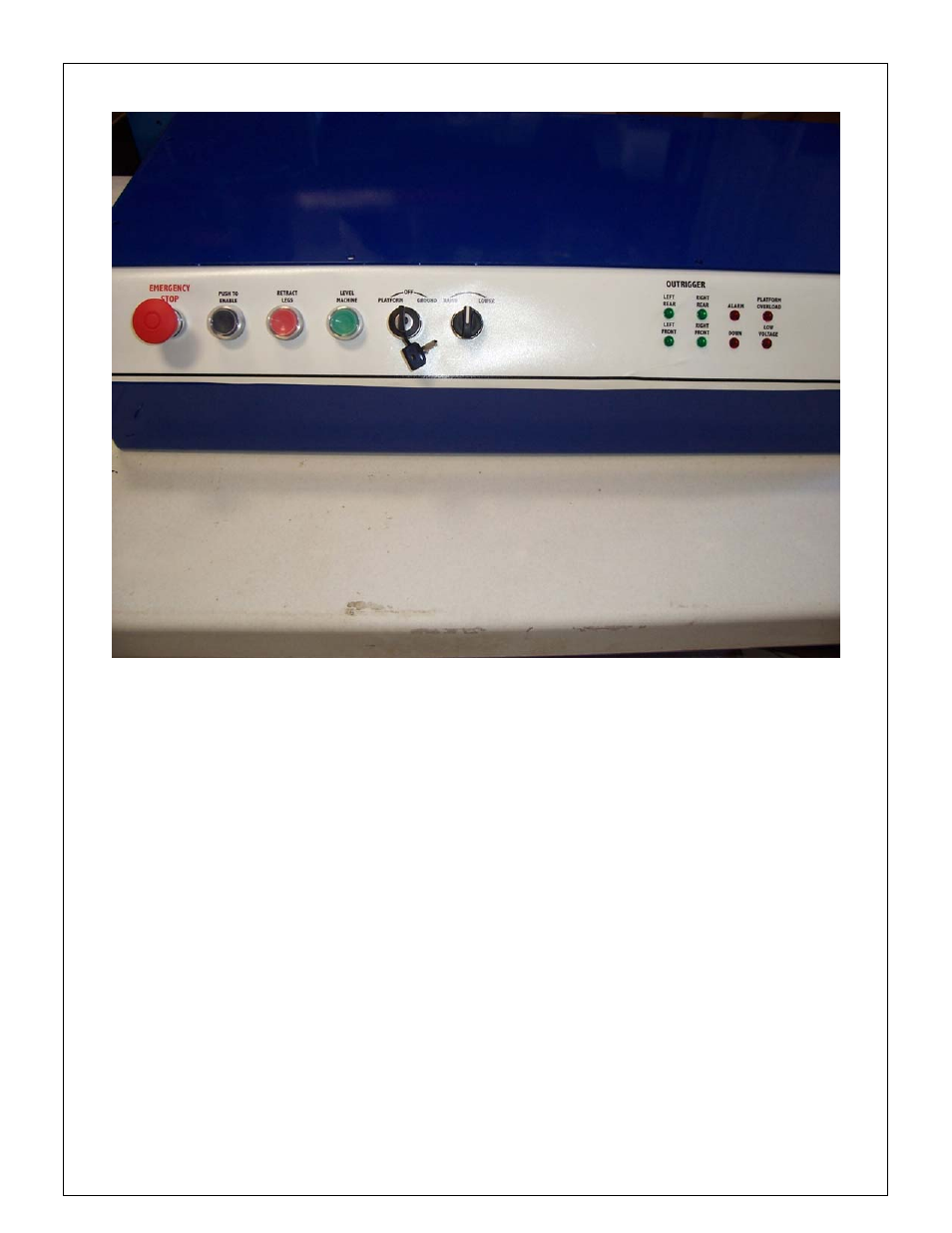

The control panel

CONTROL FROM GROUND LEVEL

The controls are located in the front of the main control box located in the front of the
machine. (See diagram on page 21)

1. To operate the platform from the ground controls, turn key switch to the

ground position.

2. Push the push to enable button while simultaneously twisting the raise/lower

platform button.

3. On the far left is the emergency stop button. To stop machine operation push button in. For

operation this button must be pulled out. (The platform controls also has an emergency stop
button, which must be out for the controls to work.)

4. The next from the left-most button is the enable button.
5. The third control from the left is the outrigger retract button. This red button is operational

if:
a. The platform is all the way down
