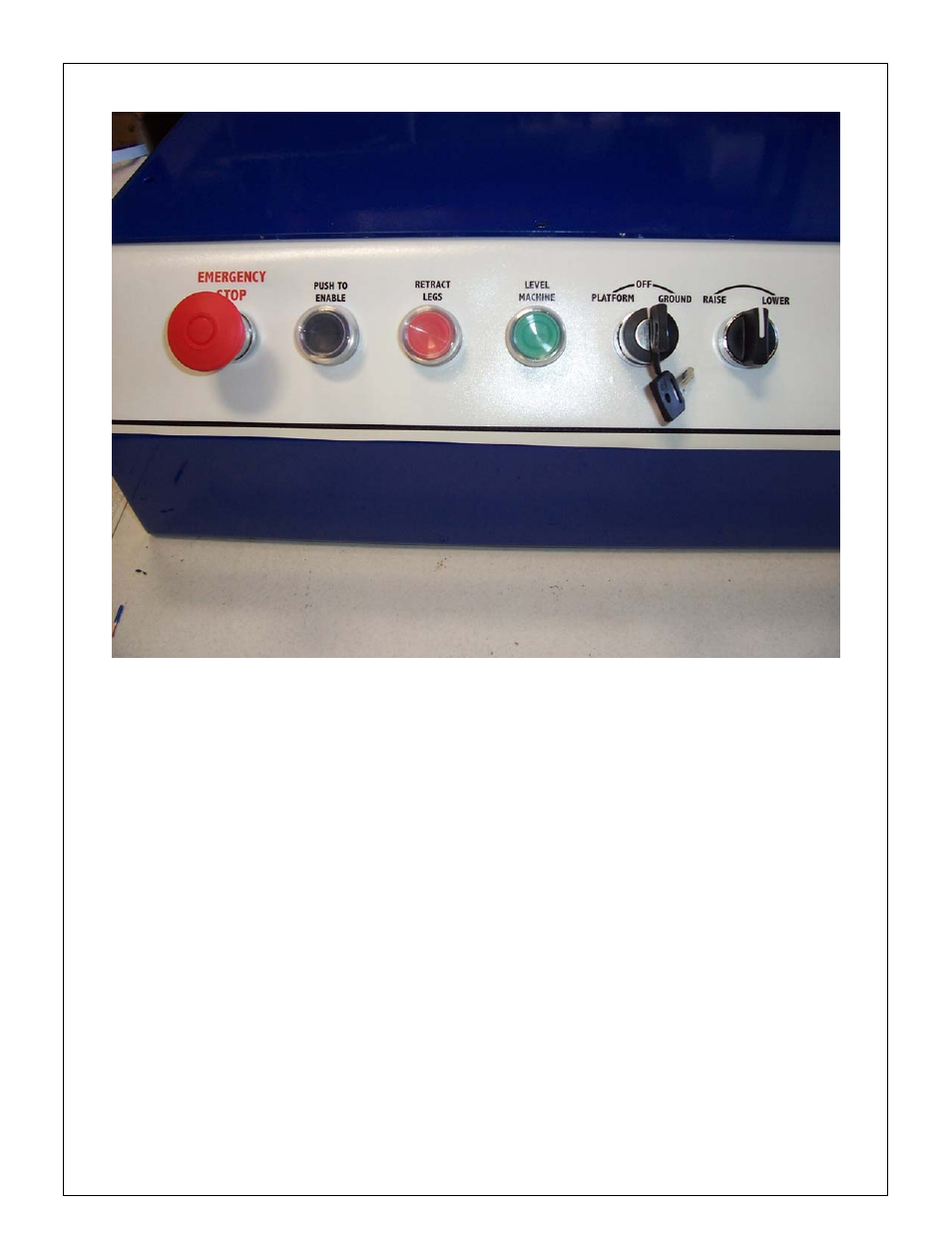

Machine controls with option “auto-level” at
ground level
1. Emergency stop button. To stop operation in emergency the button should be pushed in. For
operation this button must be pulled out. (The platform controls also has an emergency stop
button, which must be out for the controls to work.)
2. Selector switch. This keyed switch is a three position switch. If the switch is in the middle
position the power to the controls are shut off. If the switch is in the right or clock-wise
position the controls are active at ground level. If the switch is in the left position or the
counter-clock-wise position, the controls are active on the platform.
3. The raise-lower selector switch. This switch is only active when the enable button is pushed.
These two controls must be operated together. When the enable button is pushed, the up-down
selector controls the platform raise and lower function.
4. The ‘level machine’ button. This button is for auto-level. All the preconditions and set up are
pre-conditions for this button to work. The outriggers, however, must be positioned and the
legs pinned. The machine will ‘auto-level’. That is if the legs are positioned and pinned properly,
the operator must push this green button marked “Level Machine” and the legs will extend and
