NOTE: Lifting devise must be capable of handling the gross weight of the machine, see the
Operating Specifications table at the beginning of this Section.
Fork-Lift Truck Transport
All SPM20 Model Lifts are equipped with wide forklift pockets running through the base
frame. (See Figure 3-11.) This allows the machine to be either transported around a work
area or lifted onto a higher level using a standard fork-lift truck.
NOTE: Fork-lift trucks must be capable of handling the gross weight of the machine, see the
Operating Specifications table at the beginning of this Section.

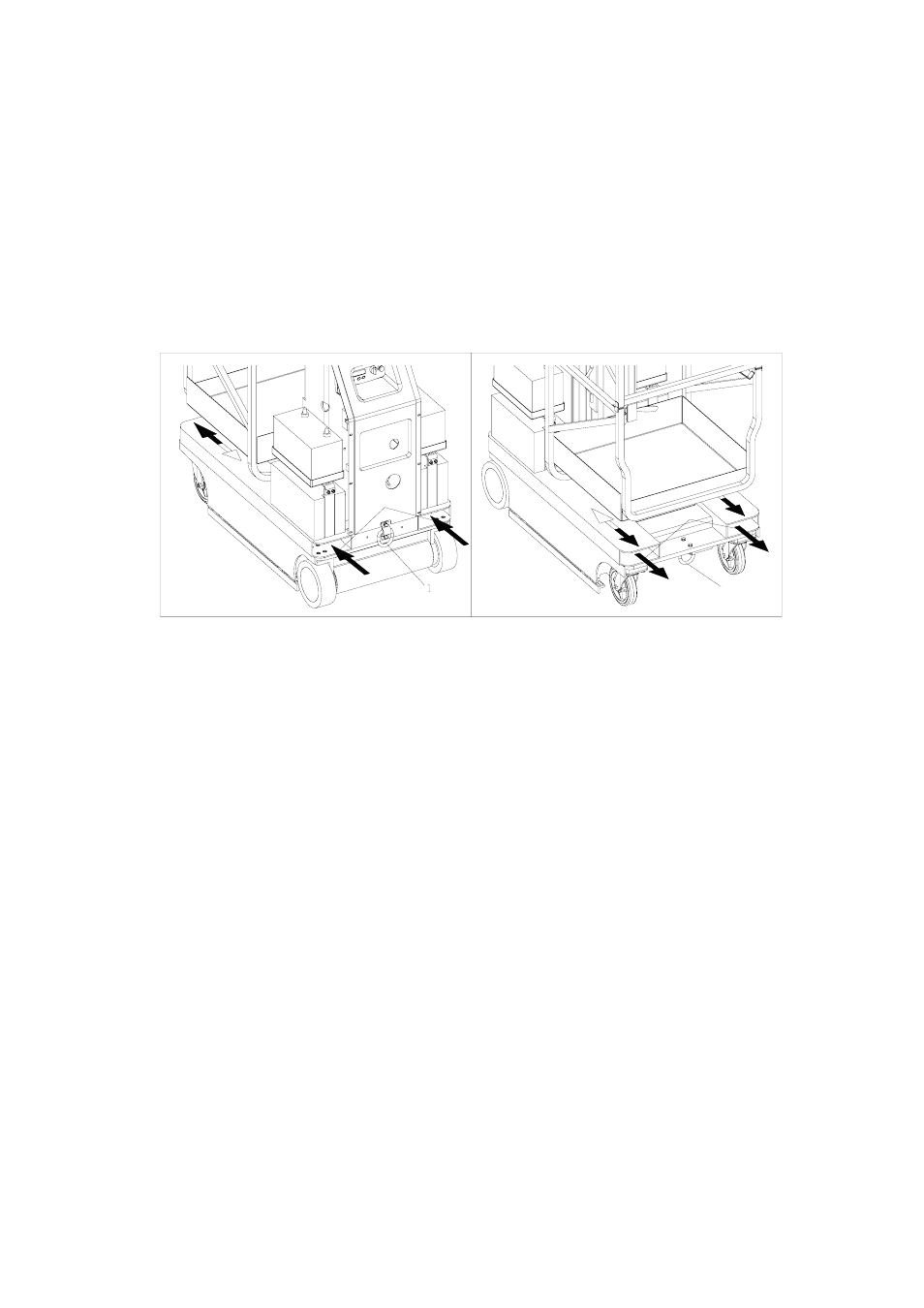

Figure 3-4. Forklift Truck Lifting Pockets and Machine Tie Down Bar Locations.
1. Rear Tie-Down Loop 2. Fork Lift Pockets 3. Front Tie-Down Loop
3
2
2
