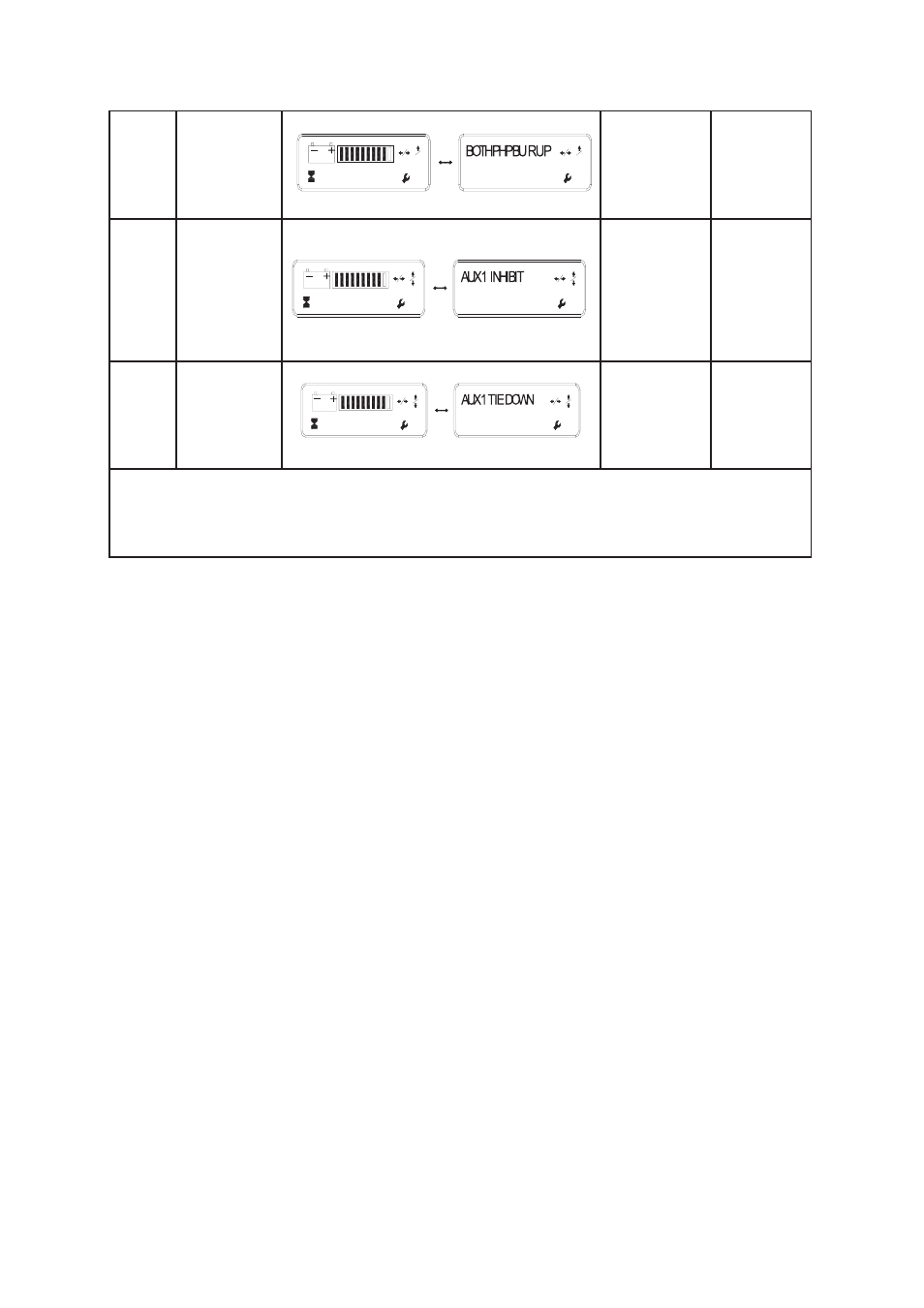

34
33 2
Both PHP Bras
UP DRIVE
and Lift UP
Disabled
Check for
Object
Blocking Both
the Left and
Right PHP
Bars
34 _
Aux. #1
– Platform Gate
Open or No
Pressure on
the Platform
Enable switch
Close
platform gate
or press
Platform
Enable
during
machine
operation
35 _
Aux. #1
– Platform
Enable switch
depressed
during Machine
Power – up.
Do Not Press
on Platform
Enable
switch during
Machine
Power – Up.
NOTE: The fault conditions shown above are fault conditions, which the Operator may be able to resolve.
Should a fault occur and be displayed on the LCD screen which cannot be corrected at the
Operator’s level, the problem must be referred to a qualified mechanic. A complete table of Fault
Codes is listed in the Trouble Shooting Section of the Service and Maintenance Manual.
3.6 GROUND CONTROL STATION – PROGRAMMING
General
The SPM20 machine Ground Control Station allows on-board programming of various
component and control function personality settings.
Programming may be required under circumstances such as:
Optional equipment has been added to the machine in the field and a function must be •
enabled before operation.
Customizing the machine to fit a specific application, such as changing the LCD display
•
language.
Programming Levels
There is one (1) password protected programming level available to the Operator:
Level –3: Operator’s Settings •
Level –3 Password: 23456
Operator Programming Mode
In the Operator Level Programming Mode the following items are shown on the main menu
(See Table 3-4 for Setting Range and Default Factory Setting):
00000.0 33 33
00000.0 34 34
00000.0 35 35
