39

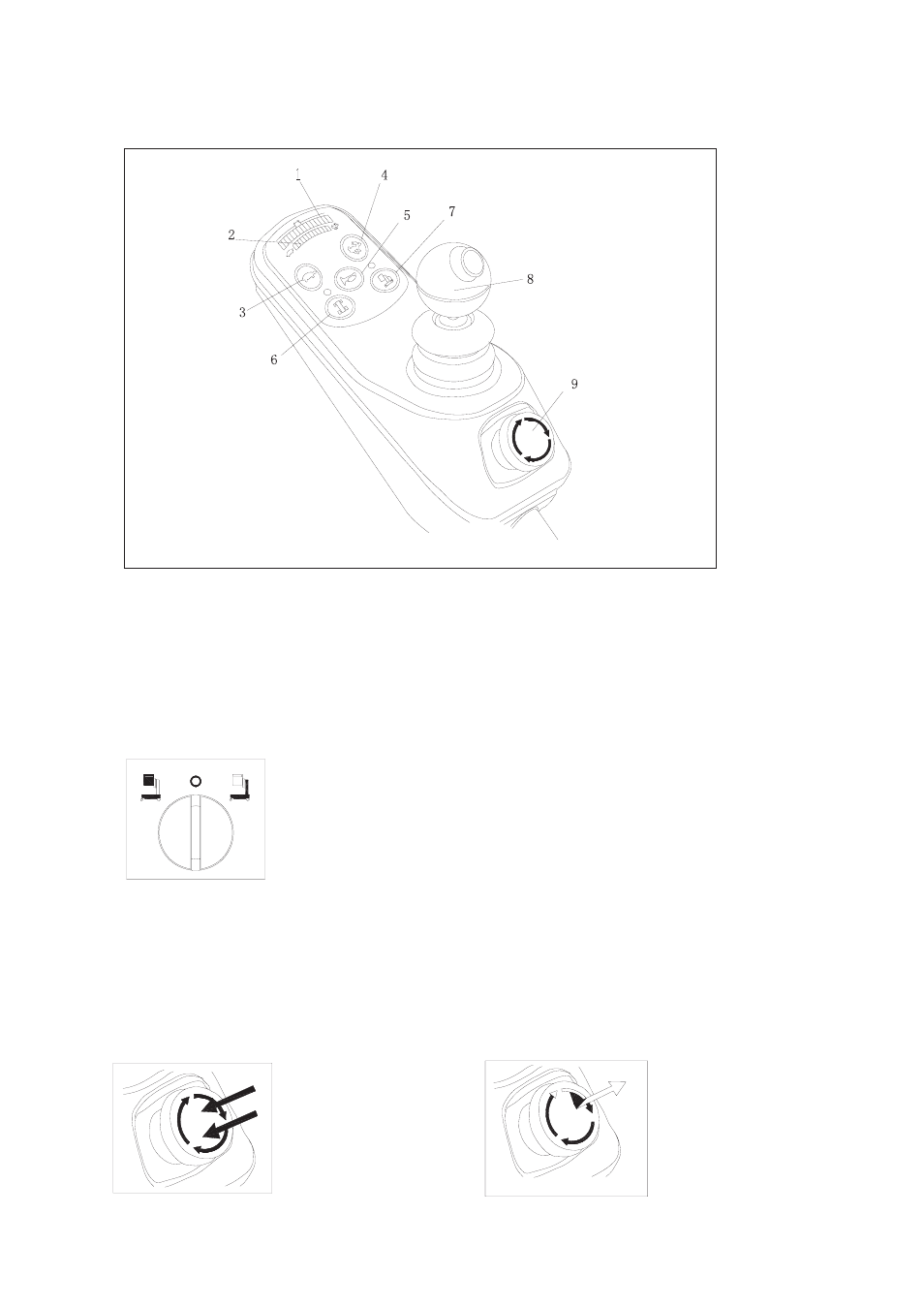

3.7 PLATFORM CONTROL CONSOLE OPERATION –
Battery Charge/Fault Code (LEDs) 1.
Max. Drive Speed Setting (LEDs) 2.
Decrease Max. Drive Speed 3.
Increase Max. Drive Speed 4.
Horn 5.
Drive Function (Enable) 6.
Platform Function (Enable) 7.
Joystick with Enable Button 8.
Emergency Stop 9.
At Ground Control Station
Set the Main Power Selector Switch to Platform Control Mode at
the Ground Control Station. (See Figure 3-2.)
Emergency Stop/Shut-Down Button
POWER-OFF
PUSH IN-TO ENGAGE
Emergency Stop
POWER ON
TURN CLOCKWISE and RELEASE-TO RESET
Emergency Stop
Figure 3-3. Platform Control Console
