Page 18 Operator Manual
060588-026 SL26/30SL Specifications
S
PECIFICATIONS
Specifications subject to change without notice. Refer to the Service Manual for service and repair infor-
mation. Refer to the Parts Manual for illustrated parts breakdown. Hot weather or heavy use may reduce
performance. Meets or exceeds all applicable national safety requirements
ITEM SL26SL SL30SL
Platform Size (Inside toeboards)
Standard 1,71 m x 3,59 m [67.5 in x 141.5 in.] 1,71 m x 4,22 m [67.5 in x 166.25 in.]
Slide-out Deck Extended 1,71 m x 4,61 m [67.5 in. x 181.5 in.] N/A
Max. Platform Capacity
Standard 680 kg [1500 lbs.] 590 kg [1300 lbs.]
With Extension 680 kg [1500 lbs.] N/A
on Extension 227 kg [500 lbs.] N/A
Max. No. of occupants
Standard 5 people 5 people
on Extension 2 people N/A
Height
Working Height 9,93 m [32 ft. 6 in.] 11,14 m [36 ft. 6 in.]
Max. Platform Height 7,93 m [26 ft.] 9,14 m [30 ft.]
Min. Platform Height 1,5 m [59 in.] 1,5 m [59 in.]
Max. Drivable Height 7,93 m [26 ft.] 9,14 m [30 ft.]
Dimensions
Weight 2,853 kg [6,290 lbs.] 2,967 kg [6,541 lbs.]
Overall Width, Standard 2,13 m [84 in.] 2,13 m [84 in.]
Overall Height 2,60 m [102.5 in.] 2,60 m [102.5 in.]
Overall Length, Standard 3,79 m [149 in.] 4,39 m [173 in.]
Surface Speed
Platform Lowered 0 to 5,0 km/h [0 to 3.1 mph] 0 to 5,0 km/h [0 to 3.1 mph]
Platform Raised 0 to 0,8 km/h [0 to 0.5 mph] 0 to 0,8 km/h [0 to 0.5 mph]
System Voltage 12 Volt DC 12 Volt DC
Hydraulic Tank Capacity 45,5 liters [12 US Gallons] 45,5 liters [12 US Gallons]
Maximum Hydraulic System Pressure 193 bar [2800 psi] 193 bar [2800 psi]
Hydraulic Fluid
Normal Temp. above 0° C [32° F] ISO #46 ISO #46
Low Temp. below 0° C [32° F] ISO #32 ISO #32
Below -17°C [0° F] ISO #15 ISO #15
Lift System One Single Stage Lift Cylinder One Single Stage Lift Cylinder
Lift Speed Raise: 21 sec. Lower: 32 sec. Raise: 24 sec. Lower: 36 sec.
Platform Leveling 13° side/side, 9° fore/aft 13° side/side, 9° fore/aft
Power Source Diesel 20 HP Kubota, 3 Cylinder, Water
Cooled
Diesel 20 HP Kubota, 3 Cylinder, Water
Cooled
Fuel Tank Capacity 47,5 liters [12.5 US gallons] 47,5 liters [12.5 US gallons]
Drive Control Proportional Proportional
Control System Joystick controller with interlock lever
and thumb rocker steering, selector and
emergency stop switches; Leveling
control, two toggle switches and bubble
level (inoperable above interlock height)
Joystick controller with interlock lever
and thumb rocker steering, selector and
emergency stop switches; Leveling
control, two toggle switches and bubble
level (inoperable above interlock height)
Horizontal Drive 4 Wheel, Hyd. Motors 4 Wheel, Hyd. Motors
Tires 26 x 12.00 - 12NHS Super Terra-grip,
foam filled
26 x 12.00 - 12NHS Super Terra-grip,
foam filled
Parking Brakes Dual Disc, Spring Applied Dual Disc, Spring Applied
Turning Radius (inside) 3,96 m [13 ft.] 3,96 m [13 ft.]
Maximum Gradeability: 19° [35%] 19° [35%]
Wheel Base 2,54 m [100 in.] 2,54 m [100 in.]
Ground Clearance 0,24 m [9.5 in.] 0,24 m [9.5 in.]
Guardrails 1,1 m [43.5 in.] high, fold down with
gate.
1,1 m [43.5 in.] high, fold down with
gate.
Guardrail
Bolt Torque
31Nm [23 ft. lb.] 31Nm [23 ft. lb.]
Noise Level
Einführung 060588-026 SL26/30SL
Betriebsanleitung Seite 39
E
INFÜHRUNG
In diesem Handbuch werden die Schnellnivellier-Arbeitsbühnen SL26/30 erläutert. Dieses Handbuch muss
ständig an der Maschine aufbewahrt werden.
A
LLGEMEINE
B
ESCHREIBUNG

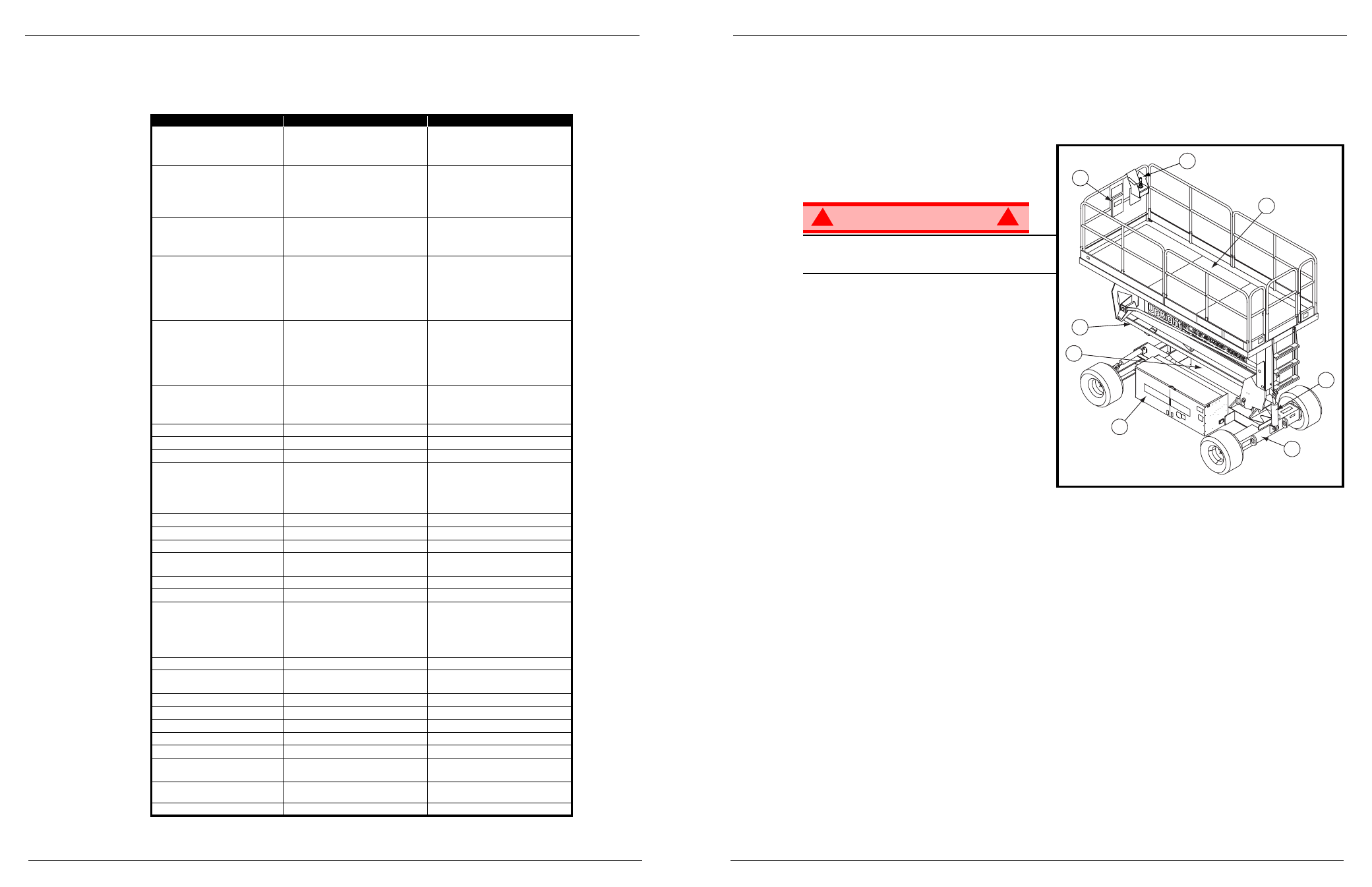

Abbildung 1: Arbeitsbühne
1. Arbeitsbühnen-Steuerpult
2. Handbuchfach
W A R N U N G ! !
Die Arbeitsbühne NICHT ohne ordnungsgemäß
zusammengesetzte und angebrachte
Schutzgeländer benutzen.
3. Arbeitsbühne
4. Hubgestell
5. Stromversorgung
6. Steuermodul
7. Fahrwerk
8. Ausrichtungszylinder
1
2
4
5
6
7
3
8
