7) Drilling mounting holes. Begin by drilling the 3 forward outer and inner holes to 3/8” This is easiest to
do with the bracket being held in place via the tranny cross-member bolts as described in step 5.
However, the 2 inner mid holes are easier to drill with the bracket removed, so mark and center punch
them after drilling all other holes, remove the bracket and drill these 2 holes last. The rear holes are to

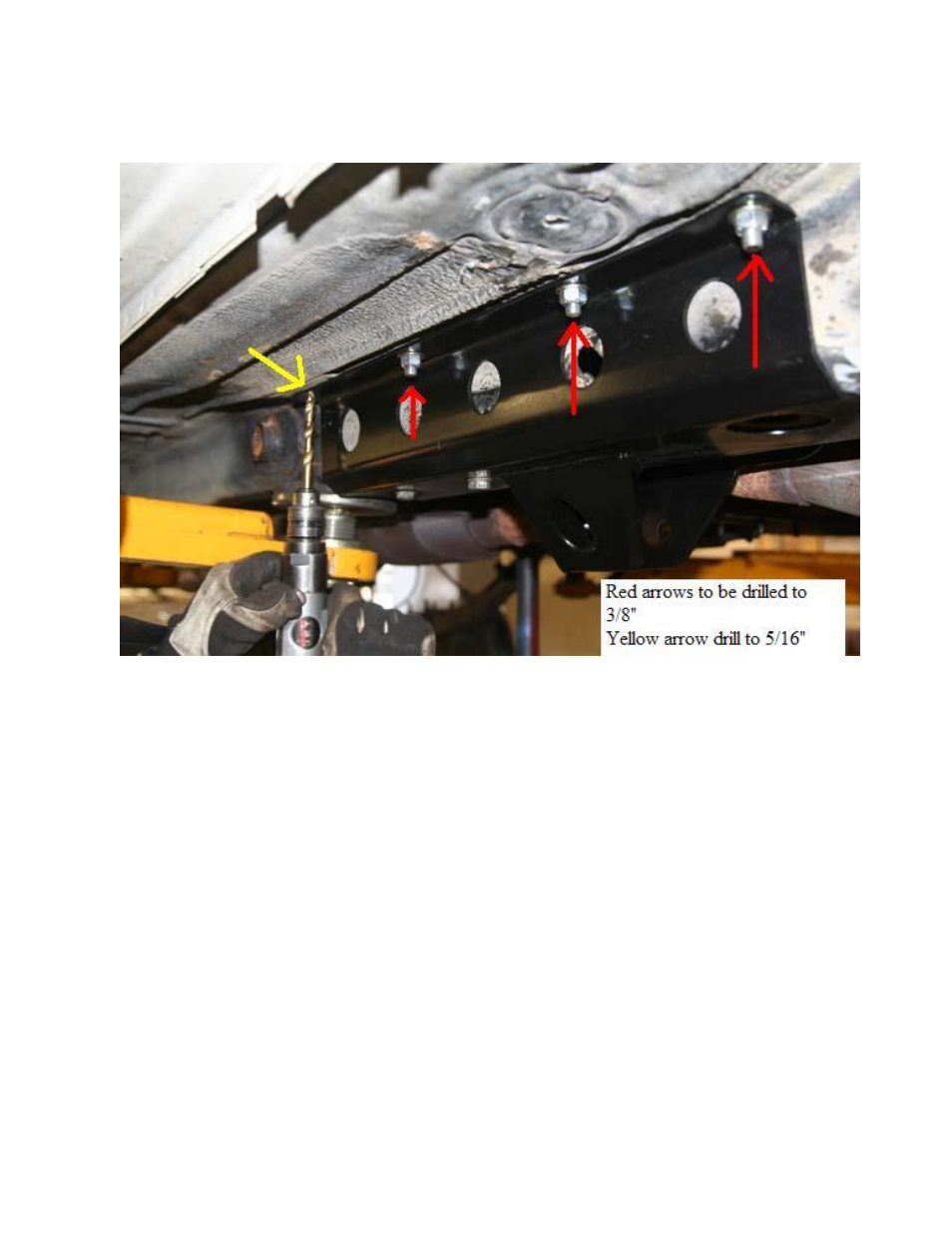

be drilled to 5/16” since they utilize self tapping hardware. See picture for reference.
8) Fully bolt in the bracket once all 8 holes have been drilled. Drop the 3/8” bolts in from the top. Use a
washer under both the bolt head and under the top lock nut as shown above. The rear most holes on the
inside and outside of the bracket use the 3/8” self tapping bolts screwed in from the under side of the car
as shown. A fully installed bracket with transmission cross-member reinstalled should appear as
follows. See torque specs listed on pg 1 for settings.
