Synergy 8200 - Jeep XJ 4-Link Long Travel System - Manual (Page 7)

4) Once the stock control arm mounts have been cut / trimmed, installation of the new PPM-8230 control
arm bracket can begin.
5) First, support the transmission and remove the transmission cross-member. Fit up the PPM-8230

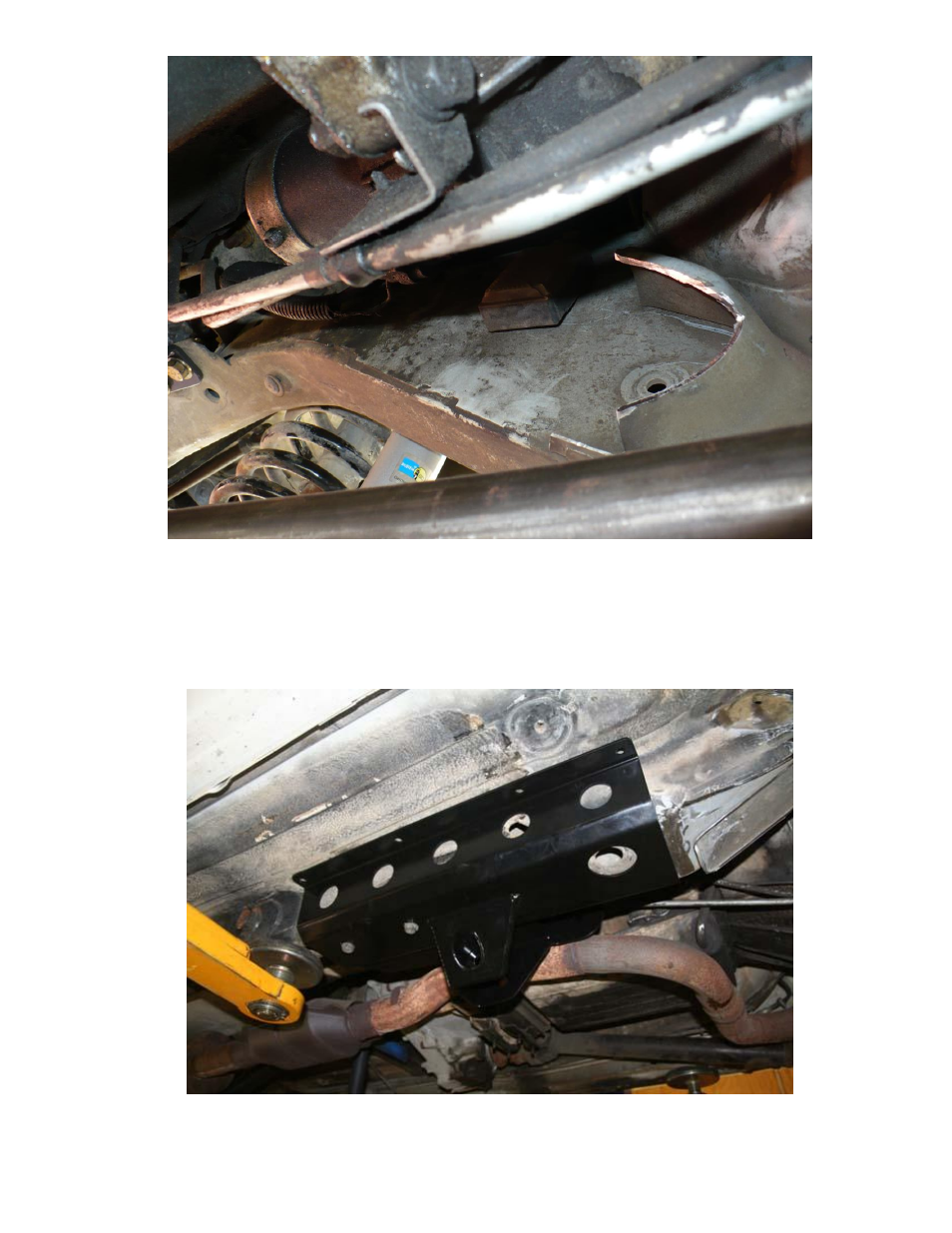

control arm bracket by bolting it to the body using the 2 transmission cross-member bolts as shown in
the picture. (Note, some trimming of the uni-body may be required depending on the year of the
vehicle. See 2nd picture below for reference on where to cut.)
Possible trimming of the unibody is required depending on vehicle yr. (Note, cut is made inside of ruler.)
