Synergy 8200 - Jeep XJ 4-Link Long Travel System User Manual
Page 11

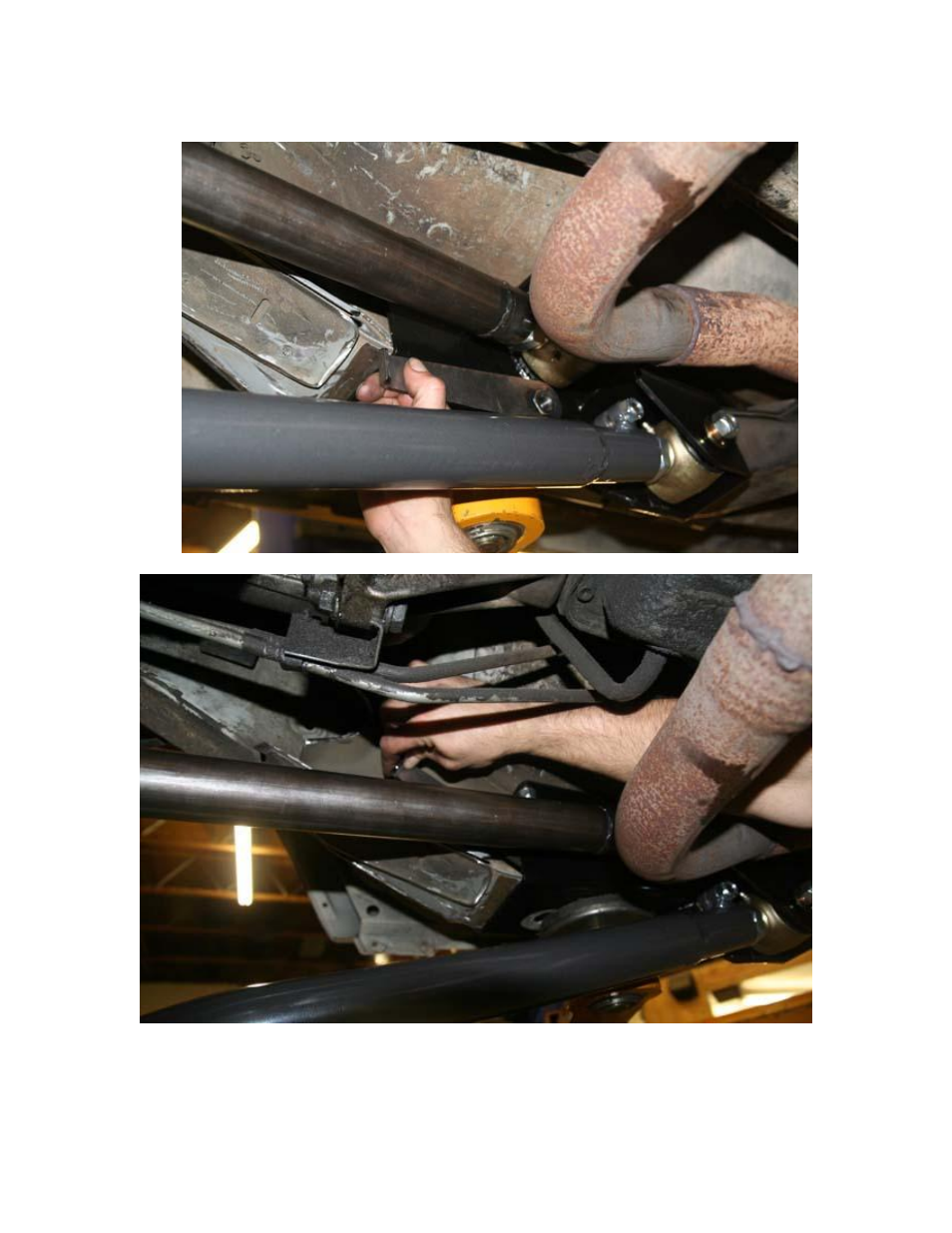

10) Next, install the upper control arms (PPM-8232). Again, see above picture for reference on arm
orientation. Slide the nut tab, 823002-01, between the control arm bracket and the unibody to bolt the
UCA to the chassis. See picture below for reference.
Slide nut tab between bracket and unibody to install UCA. Driver side may require some tweaking and
repositioning of the fuel and brake lines to install the nut tab.
