Synergy 8200 - Jeep XJ 4-Link Long Travel System User Manual
Page 13

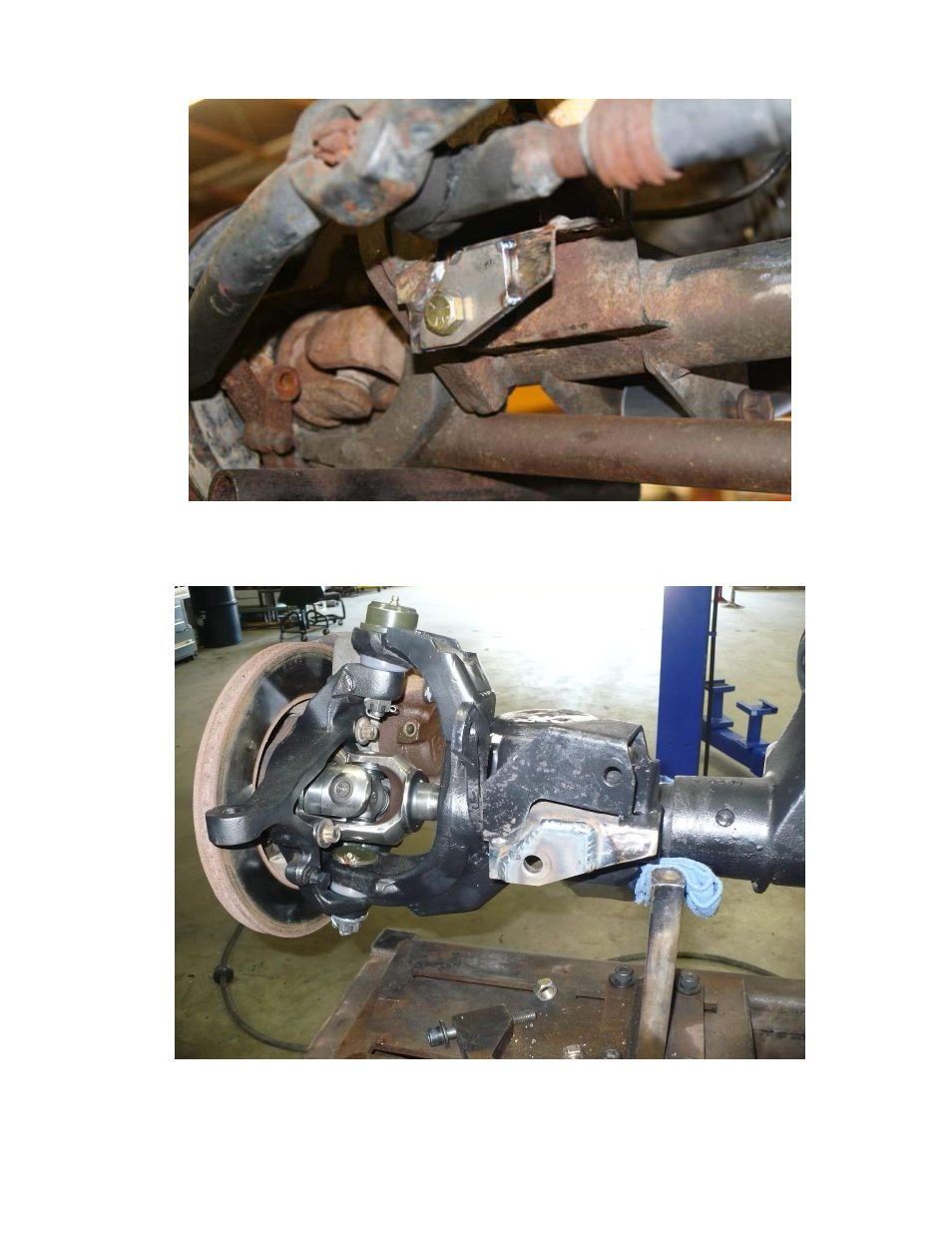

16) Before installing the PPM-8233-03 trackbar itself, the trackbar mount on the axle needs to be modified.
Begin by drilling out the trackbar bolt hole to 9/16”
After the hole has been drilled out to 9/16”, clean off the face of the track bar mount so the PPM-8233-04
track bar gusset can be welded in place. Align the gusset with the 9/16” bolt provided in the kit and tack
into place. Remove bolt and full weld gusset on, then repaint mount as desired.
Track bar gusset fully welded.
