Synergy 8200 - Jeep XJ 4-Link Long Travel System - Manual (Page 18)

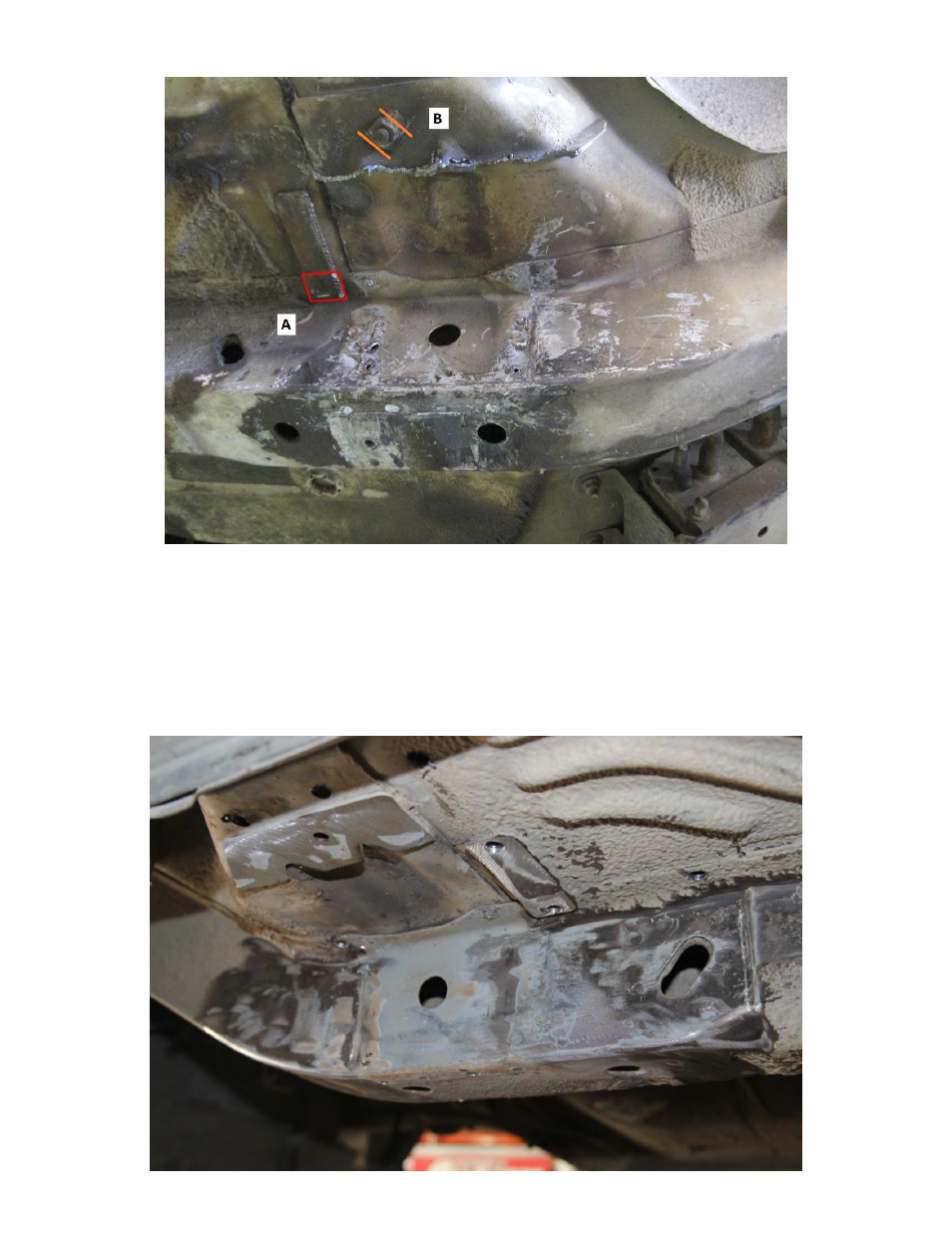

a. Note the red square near letter A which encompasses the remainder of the forward section of the spring
hanger. This piece of the bracket will need to be cut off for the new spring hanger to be installed. Cut
along the body to frame seam towards the outside of the body to remove this piece. A grinder with cut
off wheel works well.
b. Note the 2 orange cut lines near letter B. This weld nut will need to be cut off. Remove the torx head
bolt from the under side of the seat and cut off the weld nut.
5) Grind smooth the unibody and remainder of the bracketry so the new spring hanger can mount flush to the
frame and body.
